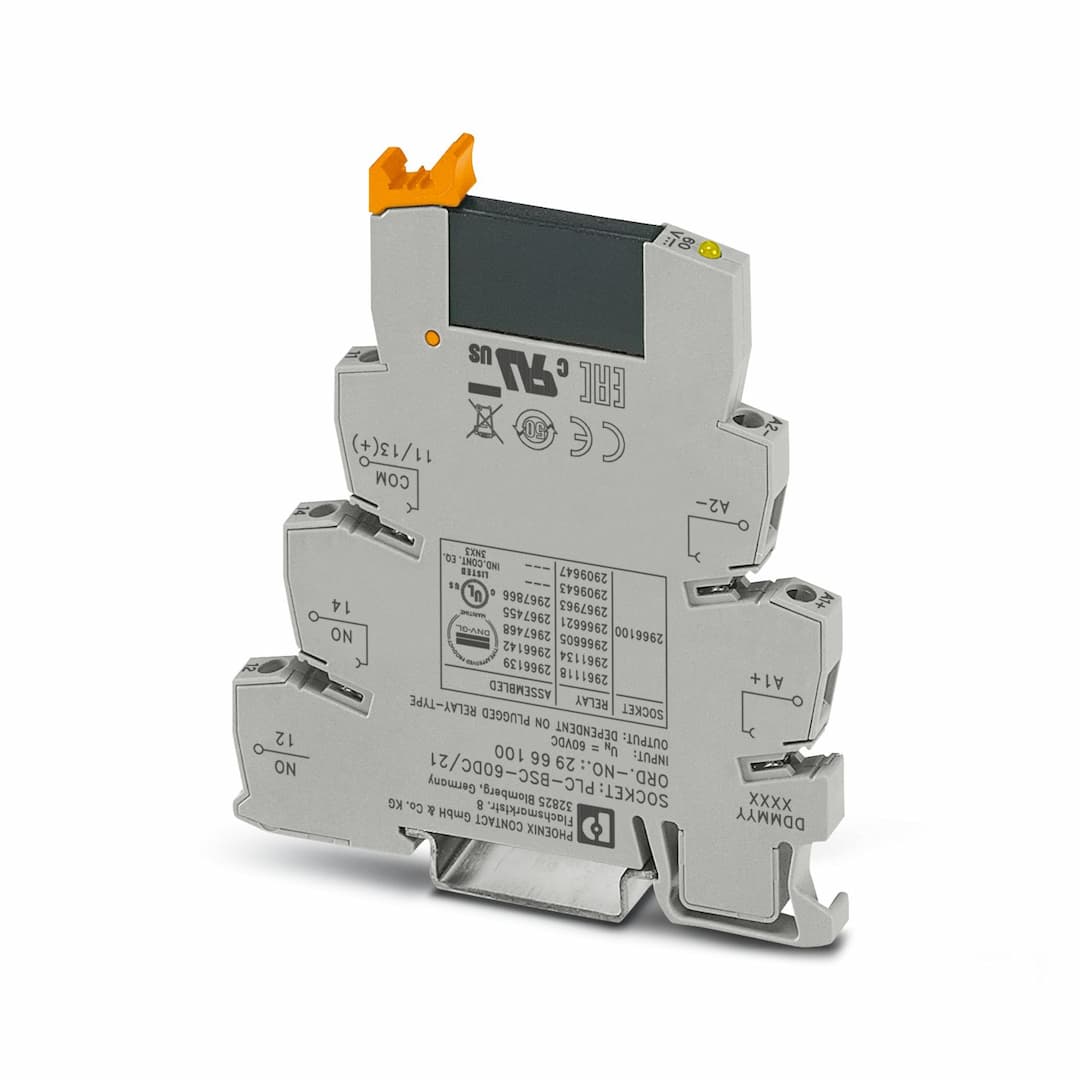

Product Model
PLC-OSC- 60DC/230AC/ 1
Key Features
- 1Rapid response time of 10 ms ensures quick and reliable switching.
- 2Integrated reverse polarity protection and polarity protection diode for secure operation.
- 3Compatible with input voltages from 48 V DC to 72 V DC and output voltages from 24 V AC to 253 V AC.
- 4Slim dimensions (6.2 mm width, 80 mm height, 94 mm depth) for easy mounting on DIN rail NS 35/7,5.
- 5Handles a limiting continuous current of 0.75 A with minimal voltage drop (< 1 V) at maximum limiting current.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Universal | Operating mode | 100% operating factor |
| Date of last data management | 18.10.2023 | Article revision | 06 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.36 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 60 V DC |
| Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 48 V DC ... 72 V DC |
| Switching threshold "0" signal in reference to U | ≤ 0.3 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
| Typical input current at U | 6 mA | Typical response time | 10 ms (at U |
| Typical turn-off time | 10 ms (at U | Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode | Transmission frequency | 10 Hz |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output voltage range | 24 V AC ... 253 V AC | Limiting continuous current | 750 mA (see derating curve) |
| Maximum inrush current | 30 A (10 ms) | Min. load current | 10 mA |
| Leakage current | < 1 mA (in off state) | Phase angle cos phi min | 0.5 |
| Max. load value | 4.5 A | Voltage drop at max. limiting continuous current | < 1 V |
| Output circuit | 2-conductor, floating | Protective circuit | RCV circuit |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
