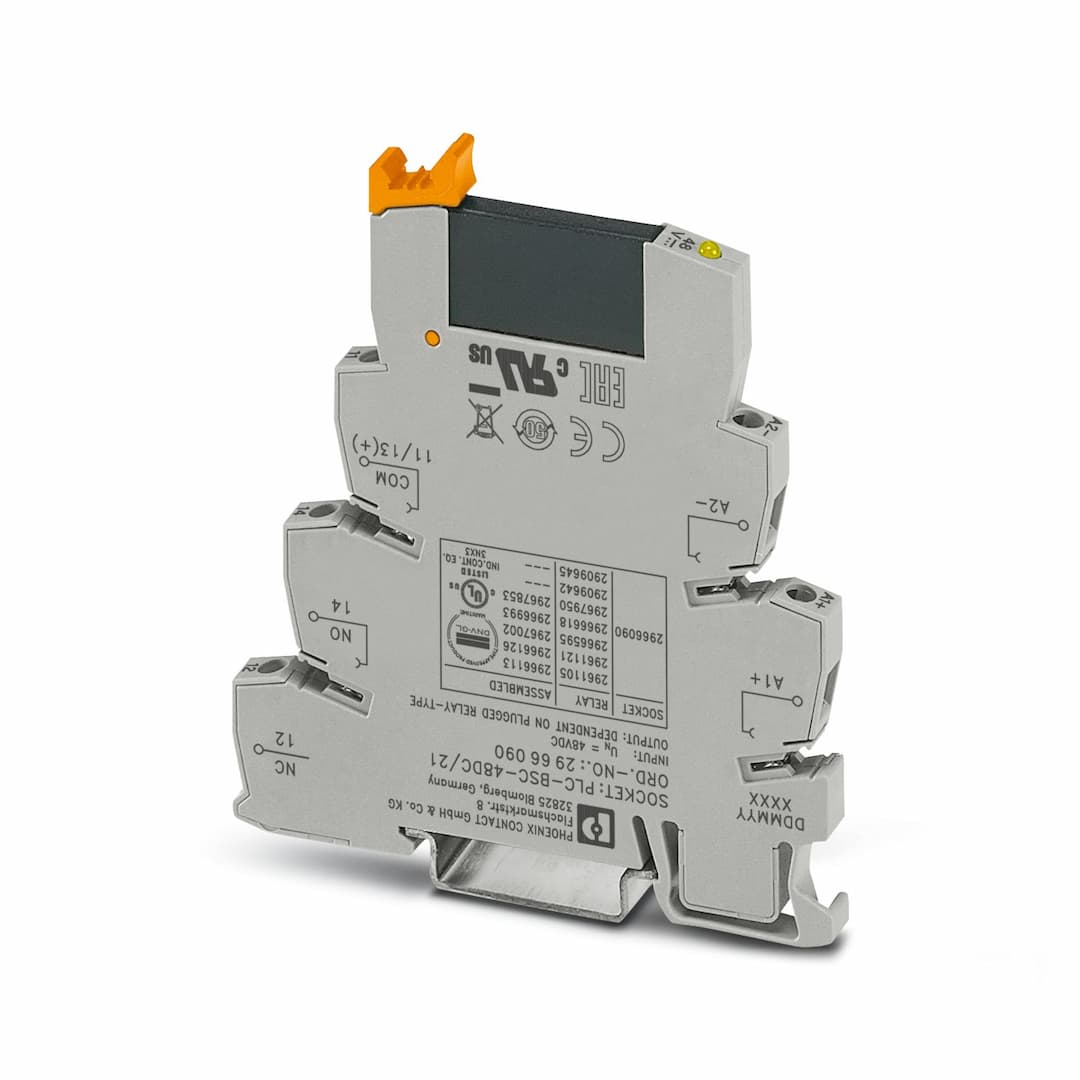

Product Model
PLC-OSC- 48DC/ 48DC/100
Key Features
- 1Slim and compact, ideal for DIN rail mounting.
- 2Handles up to 100 mA with minimal power dissipation.
- 3Includes reverse polarity protection and free-wheeling diode.
- 4Typical response time of 30 µs ensures quick switching.
- 5Operates within 38.4 V DC to 57.6 V DC input voltage range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Universal | Operating mode | 100% operating factor |
| Date of last data management | 07.05.2024 | Article revision | 07 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.43 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 48 V DC |
| Nominal voltage (plugged-in solid-state relay) | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
| Input voltage range | 38.4 V DC ... 57.6 V DC | Switching threshold "0" signal in reference to U | ≤ 0.3 |
| Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 9 mA |
| Typical response time | 30 µs (at U | Typical turn-off time | 300 µs (at U |
| Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Freewheeling diode; Freewheeling diode |
| Transmission frequency | 300 Hz | Contact switching type | 1 N/O contact |
| Design of digital output | electronic | Output voltage range | 3 V DC ... 48 V DC |
| Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
