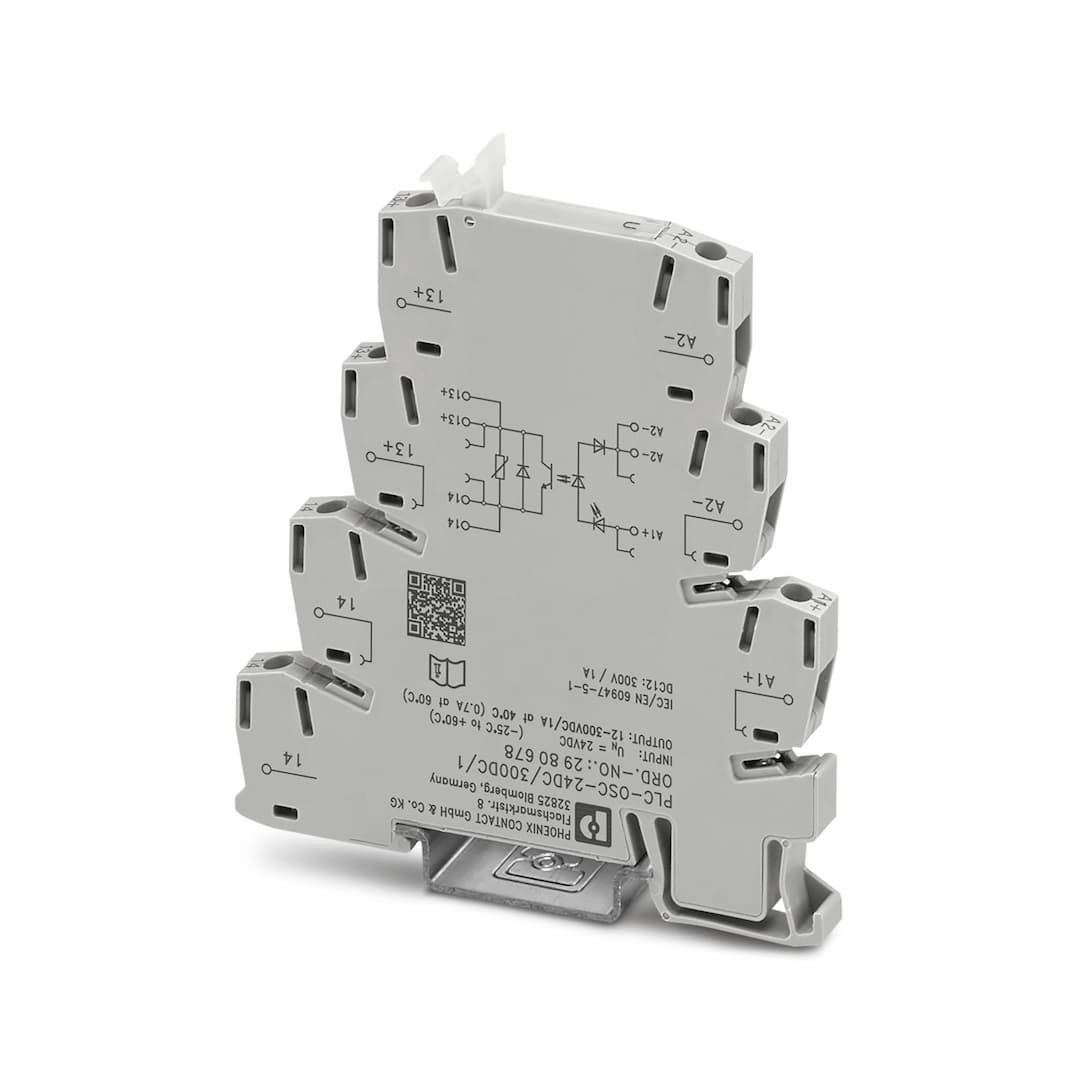

Product Model
PLC-OSC- 24DC/300DC/ 1
Key Features
- 1Wear-free switching with no contact bounce.
- 2Resistant to vibrations and shocks.
- 3Protective circuit in input and output.
- 4DC voltage outputs up to 300V DC/1A.
- 5Option of bridging adjacent modules for increased functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | With integrated solid-state relay | Operating mode | 100% operating factor |
| Date of last data management | 16.09.2024 | Article revision | 11 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.19 W |
| Rated insulation voltage | 300 V | Rated surge voltage | 2.5 kV |
| Nominal input voltage U | 24 V DC | Input voltage range in reference to U | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC | Switching threshold "0" signal in reference to U | ≤ 0.4 |
| Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 8 mA |
| Typical response time | 0.3 ms | Typical turn-off time | 0.7 ms |
| Operating voltage display | Yellow LED | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Varistor |
| Transmission frequency | 50 Hz | Designation | Output data |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Contact connection type | Power contact | Output voltage range | 12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Limiting continuous current | 1 A (see derating curve) | Voltage drop at max. limiting continuous current | < 500 mV |
| Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Varistor | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Certificate | UKCA-compliant | Certificate | TAE0000196 |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
| Humidity | A | Vibration | B/C |
| EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
