Product Model

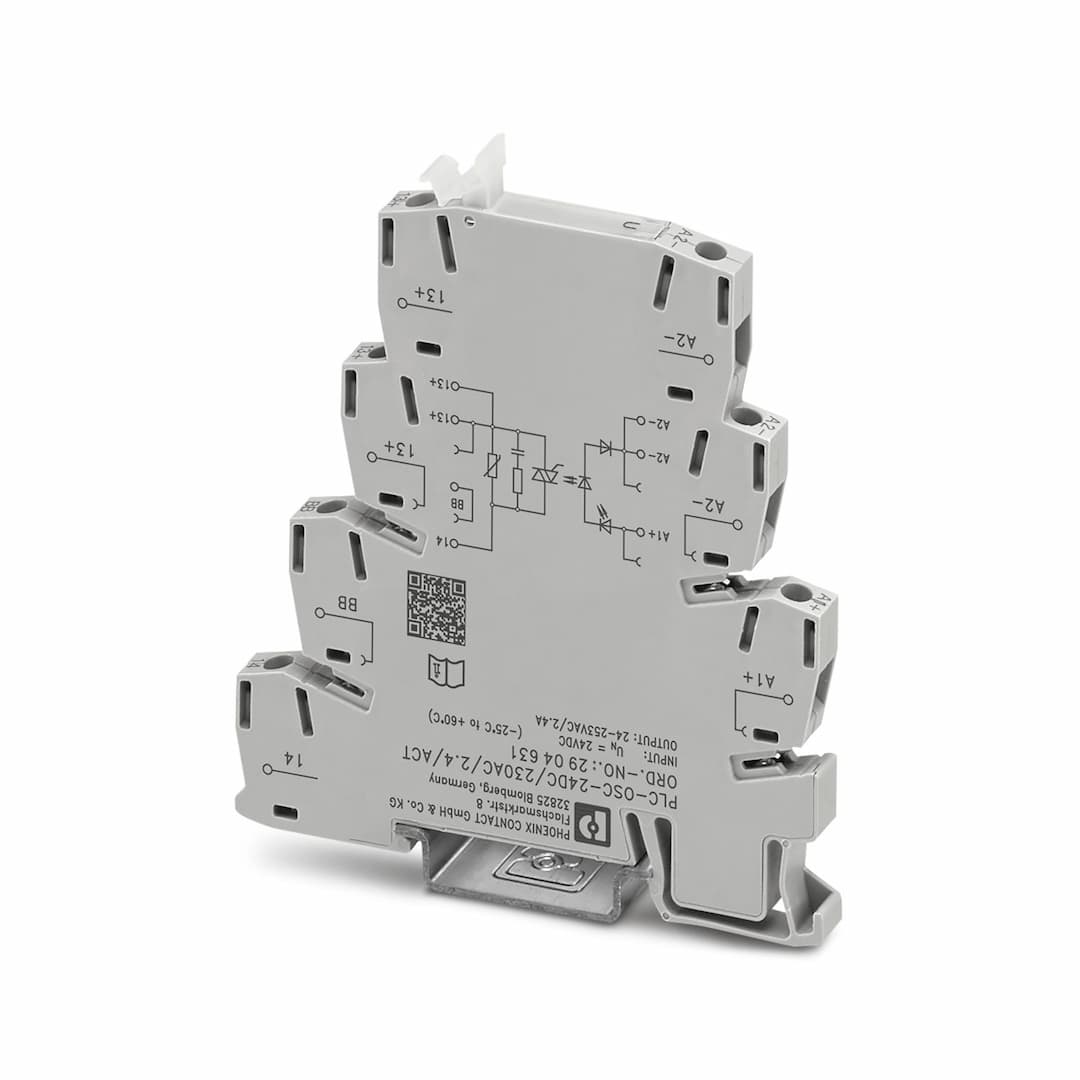

PLC-OSC- 24DC/230AC/2.4/ACT
Key Features
- 1Quick response time of 10 ms ensures reliable switching operations.
- 2Compatible with 24V DC input and 24-253V AC output.
- 3Low voltage drop of <1V at maximum limiting current.
- 4Rated for 2.4A continuous current with surge protection up to 275V.
- 5Screw connection with stripping length of 8mm for secure mounting on DIN rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Output function | Operating mode | 100% operating factor |
| Date of last data management | 16.09.2024 | Article revision | 03 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.19 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Rated insulation voltage | 260 V AC |
| Rated surge voltage | 4 kV | Rated actuating voltage U | 24 V DC |
| Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 8 mA |
| Input voltage range | 19.2 V DC ... 28.8 V DC | "0" signal switching threshold in reference to U | < 0.4 |
| "1" signal switching threshold in reference to U | > 0.8 | Typical response time | 10 ms (at U |
| Typical turn-off time | 10 ms (at U | Status display | LED (yellow) |
| Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V |
| Transmission frequency | 10 Hz | Designation | Output data |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Contact connection type | Power contact | Output voltage range | 24 V AC ... 253 V AC |
| Limiting continuous current | 2.4 A (see to derating) | Maximum inrush current | 250 A (20 ms) |
| Min. load current | 10 mA | Leakage current | < 3 mA |
| Max. load value | 340 A | Surge voltage protection | > 275 V |
| Voltage drop at max. limiting continuous current | < 1 V | Output circuit | 2-conductor, zero voltage switch |
| Protective circuit | RCV circuit | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
