Product Model

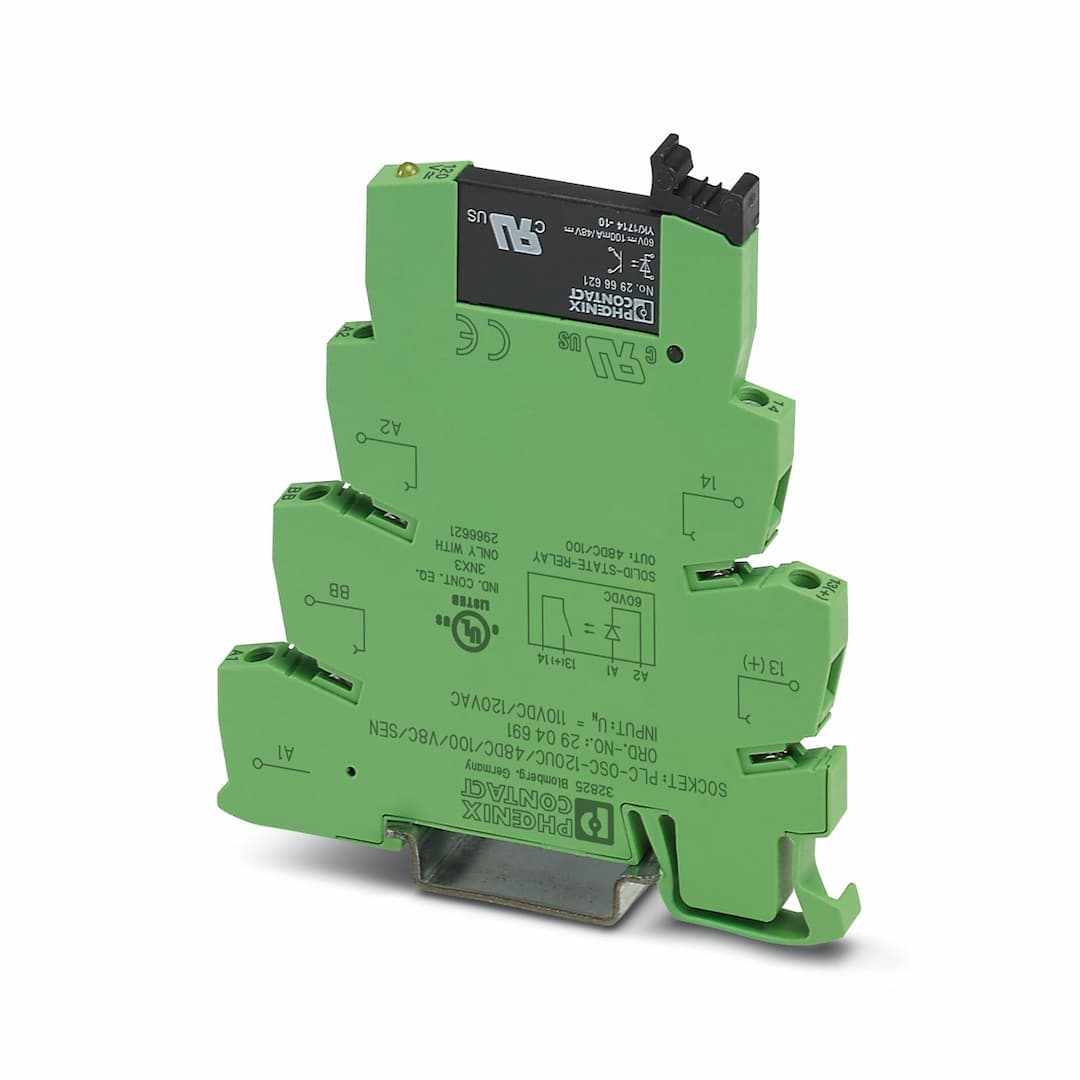

PLC-OSC-120UC/48DC/100/V8C/SEN
Key Features
- 16.2 mm width, 80 mm height, and 94 mm depth for space-saving installation.
- 2100% operating factor with basic insulation according to DIN EN 50178.
- 3Compatible with 120 V AC and 110 V DC inputs, with a switching threshold of ≤ 0.3 V for "0" signal and ≥ 0.8 V for "1" signal.
- 4Outputs 3-48 V DC with a limiting continuous current of 100 mA, ensuring precise voltage control.
- 5Equipped with surge protection, reverse polarity protection, and a bridge rectifier for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Input function | Operating mode | 100% operating factor |
| Date of last data management | 25.04.2023 | Article revision | 02 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.42 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 120 V AC (110 V DC)
110 V DC |
| Input voltage range in reference to U | 0.8 ... 1.1 | Input voltage range | 96 V AC ... 132 V AC
88 V DC ... 121 V DC |
| Switching threshold "0" signal in reference to U | ≤ 0.3 | Switching threshold "1" signal in reference to U | ≥ 0.8 |
| Typical input current at U | 3.5 mA | Typical response time | 6 ms (at U |
| Typical turn-off time | 10 ms (at U | Operating voltage display | Yellow LED |
| Protective circuit | Bridge rectifier; Bridge rectifier | Transmission frequency | 10 Hz |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output voltage range | 3 V DC ... 48 V DC | Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 1 V | Output circuit | 2-conductor, floating |
| Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Tightening torque | 0.6 Nm ... 0.8 Nm |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
