Product Model

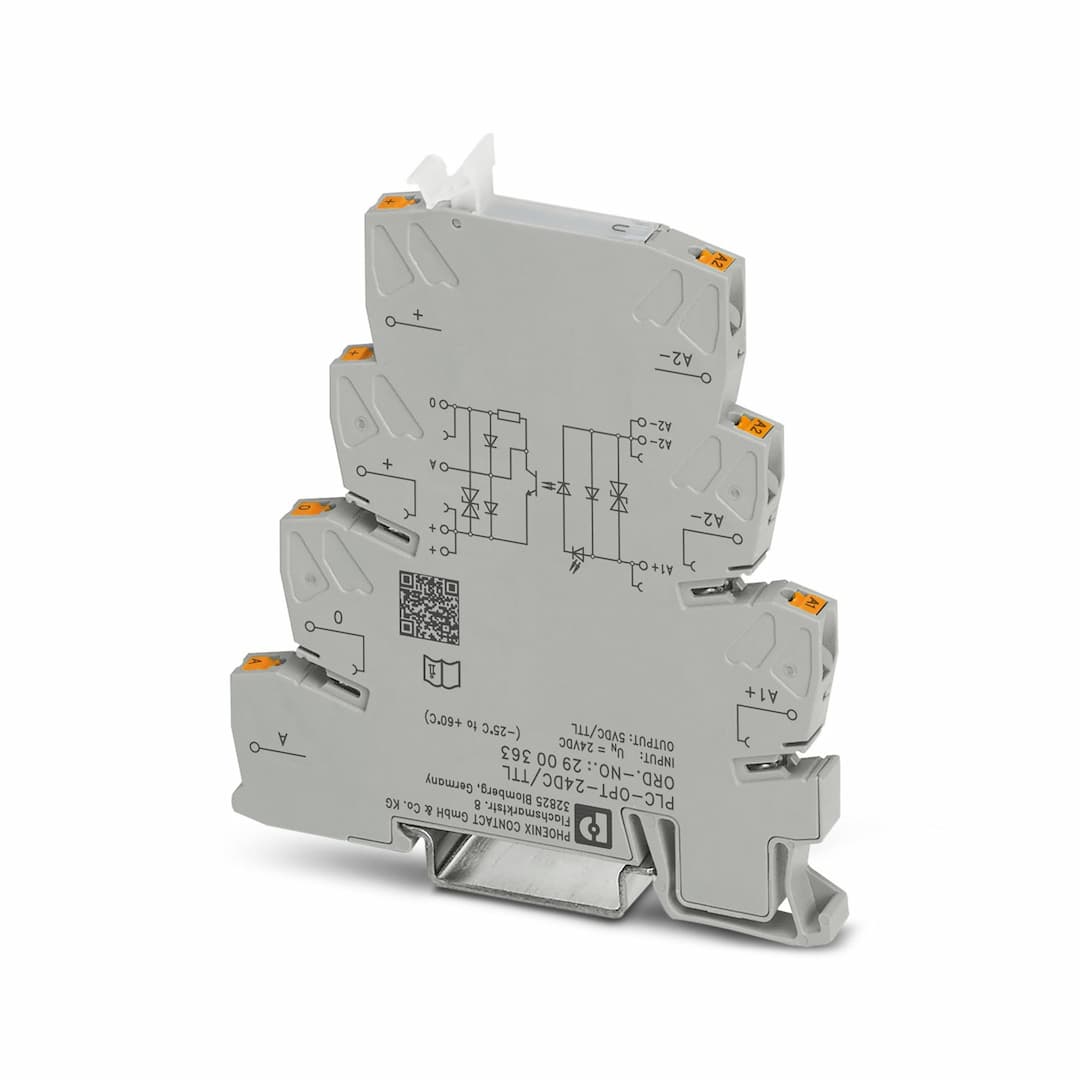

PLC-OPT- 24DC/TTL
Key Features
- 16.2 mm narrow width for space-saving installation.
- 2Resistant to vibrations and shocks, ensuring stable operation.
- 3Push-in connection with stripping length of 10 mm for quick setup.
- 4Integrated protection circuit with reverse polarity protection and surge voltage protection.
- 5Supports TTL (5V DC) output with a fan out of 1, suitable for various digital applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | TTL signal at output | Operating mode | 100% operating factor |
| Date of last data management | 16.09.2024 | Article revision | 08 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.08 W |
| Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 250 V DC |
| Rated surge voltage | 4 kV | Rated actuating voltage U | 24 V DC |
| Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 3.4 mA |
| Switching threshold "0" signal in reference to U | < 0.4 | Switching threshold "1" signal in reference to U | > 0.8 |
| Typical input current at U | 3.4 mA | Typical response time | 35 µs |
| Typical turn-off time | 35 µs | Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection; Parallel polarity protection diode
Surge protection | Surge voltage protection | > 33 V |
| Transmission frequency | 1 kHz | Designation | Output data |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Contact connection type | Signal contact | Rated control circuit supply voltage U | 5 V DC |
| Voltage range with reference to U | 0.9 ... 1.2 | Output voltage range | 4.5 V DC ... 6 V DC |
| Limiting continuous current | 50 mA (a TTL load (Fan out = 1)) | Fan out | 1 |
| Surge voltage protection | > 8 V | Voltage drop at max. limiting continuous current | < 80 mV |
| Output circuit | 3-conductor, ground-referenced | Protective circuit | Reverse polarity protection; Parallel polarity protection diode
Surge protection |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
