Product Model

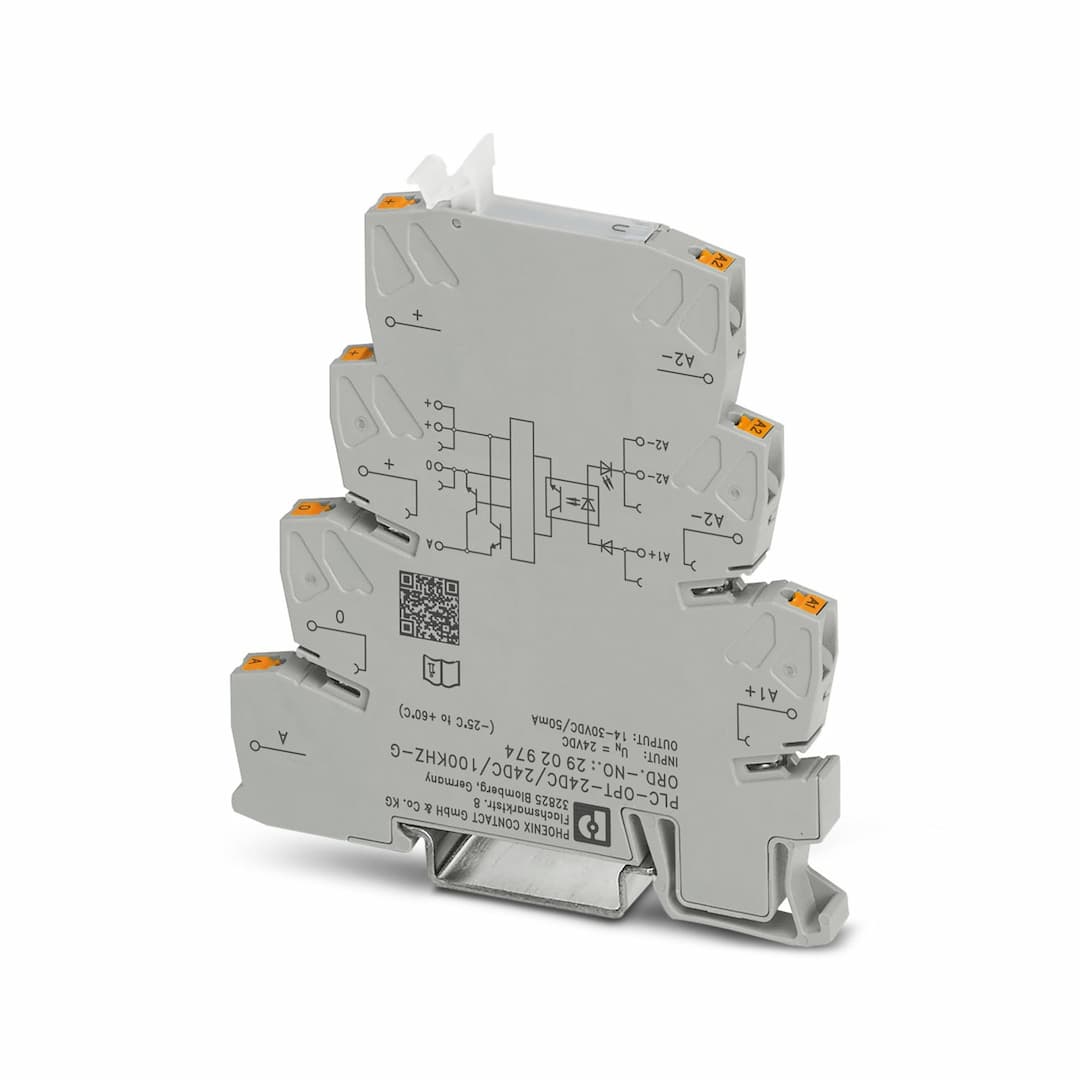

PLC-OPT- 24DC/24DC/100KHZ-G
Key Features
- 1Operates at 100 kHz for fast and reliable switching.
- 2Equipped with reverse polarity protection and surge voltage protection.
- 3Offers a range of 14-30 V DC with 50 mA continuous current.
- 4Measuring 6.2 mm x 80 mm x 86 mm for easy integration.
- 5Low power dissipation of 0.19 W for minimal heat generation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | 100 kHz input optocoupler | Operating mode | 100% operating factor |
| Date of last data management | 16.09.2024 | Article revision | 05 |
| Insulation | Basic insulation | Overvoltage category | II |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.19 W |
| Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 50 V DC |
| Rated surge voltage | 0.5 kV | Nominal input voltage U | 24 V DC |
| Input voltage range in reference to U | 0.8 ... 1.2 | Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal in reference to U | < 0.4 | Switching threshold "1" signal in reference to U | > 0.8 |
| Typical input current at U | 8 mA | Typical response time | 1 µs |
| Typical turn-off time | 2 µs | Operating voltage display | Yellow LED |
| Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V |
| Transmission frequency | 100 kHz | Designation | Output data |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output voltage range | 14 V DC ... 30 V DC | Limiting continuous current | 50 mA |
| Quiescent current | 15 mA | Surge voltage protection | > 35 V |
| Voltage drop at max. limiting continuous current | < 2.2 V | Output circuit | 3-conductor push-pull, ground referenced |
| Protective circuit | Reverse polarity protection
Surge protection | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | gray (RAL 7042) |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
