Product Model

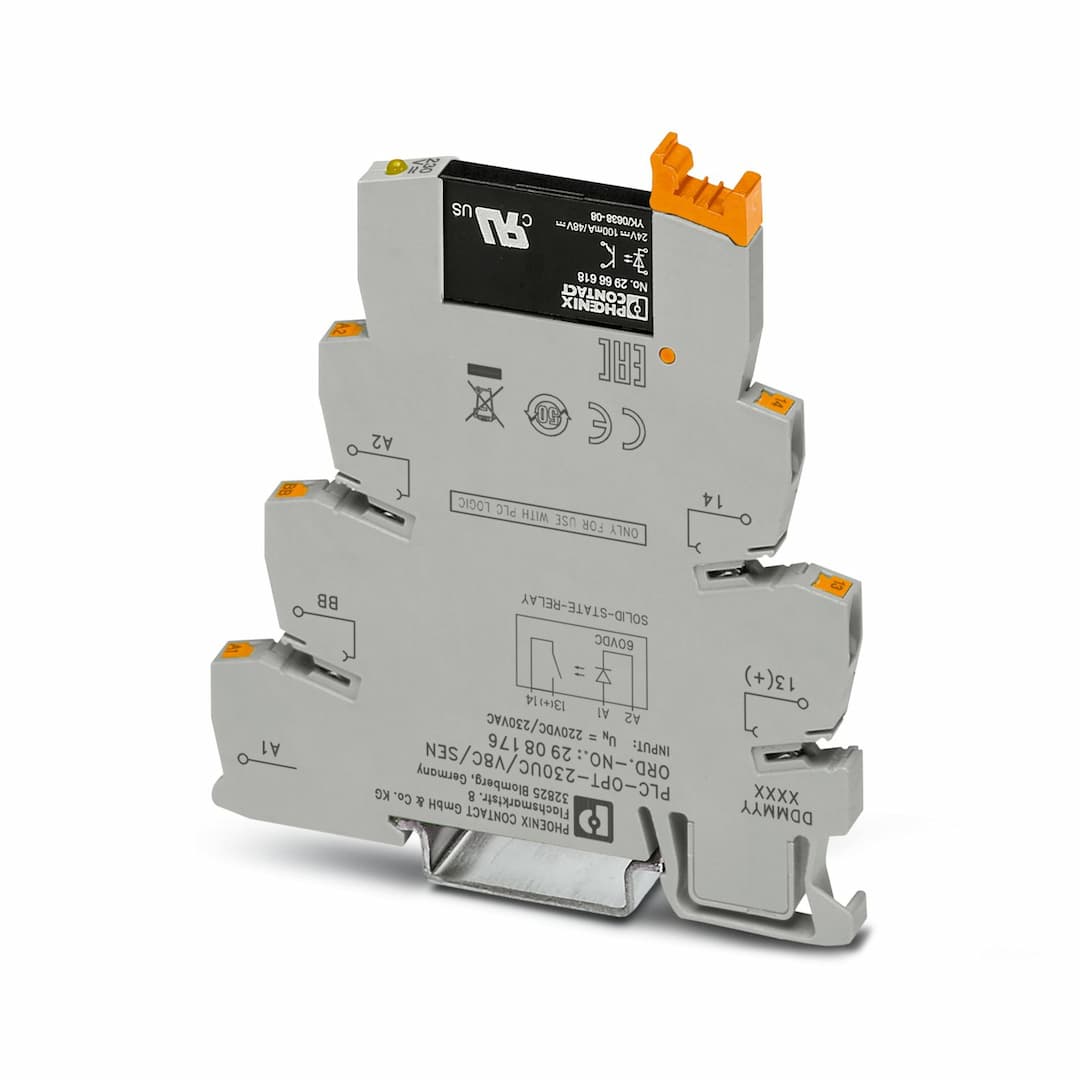

PLC-OPT-230UC/V8C/SEN
Key Features
- 1Universal Input Compatibility: Supports both 230 V AC and 220 V DC inputs.
- 2High Reliability: Ensures 100% operating factor for reliable performance.
- 3Compact Design: Mounts easily on DIN rail with dimensions of 6.2 mm x 80 mm x 94 mm.
- 4Advanced Protection: Includes surge protection and reverse polarity protection.
- 5Versatile Connectivity: Offers push-in connections with stripping length of 8 mm for solid and flexible conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Input function | Operating mode | 100% operating factor |
| Date of last data management | 07.05.2024 | Article revision | 02 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.81 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) | Nominal input voltage U | 230 V AC
220 V DC |
| Nominal voltage (plugged-in solid-state relay) | 60 V DC | Input voltage range in reference to U | 0.8 ... 1.1 |
| Input voltage range | 184 V AC ... 253 V AC
176 V DC ... 242 V DC | Switching threshold "0" signal in reference to U | ≤ 0.3 |
| Switching threshold "1" signal in reference to U | ≥ 0.8 | Typical input current at U | 3.5 mA |
| Typical response time | 3 ms (at U | Typical turn-off time | 5 ms (at U |
| Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier |
| Transmission frequency | 10 Hz | Contact switching type | 1 N/O contact |
| Design of digital output | electronic | Output voltage range | 5 V DC ... 30 V DC |
| Limiting continuous current | 3 mA | Surge voltage protection | > 56 V |
| Voltage drop at max. limiting continuous current | ≤ 1 V | Output circuit | 2-conductor, floating |
| Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection | Connection method | Push-in connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Connection method | Push-in connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
