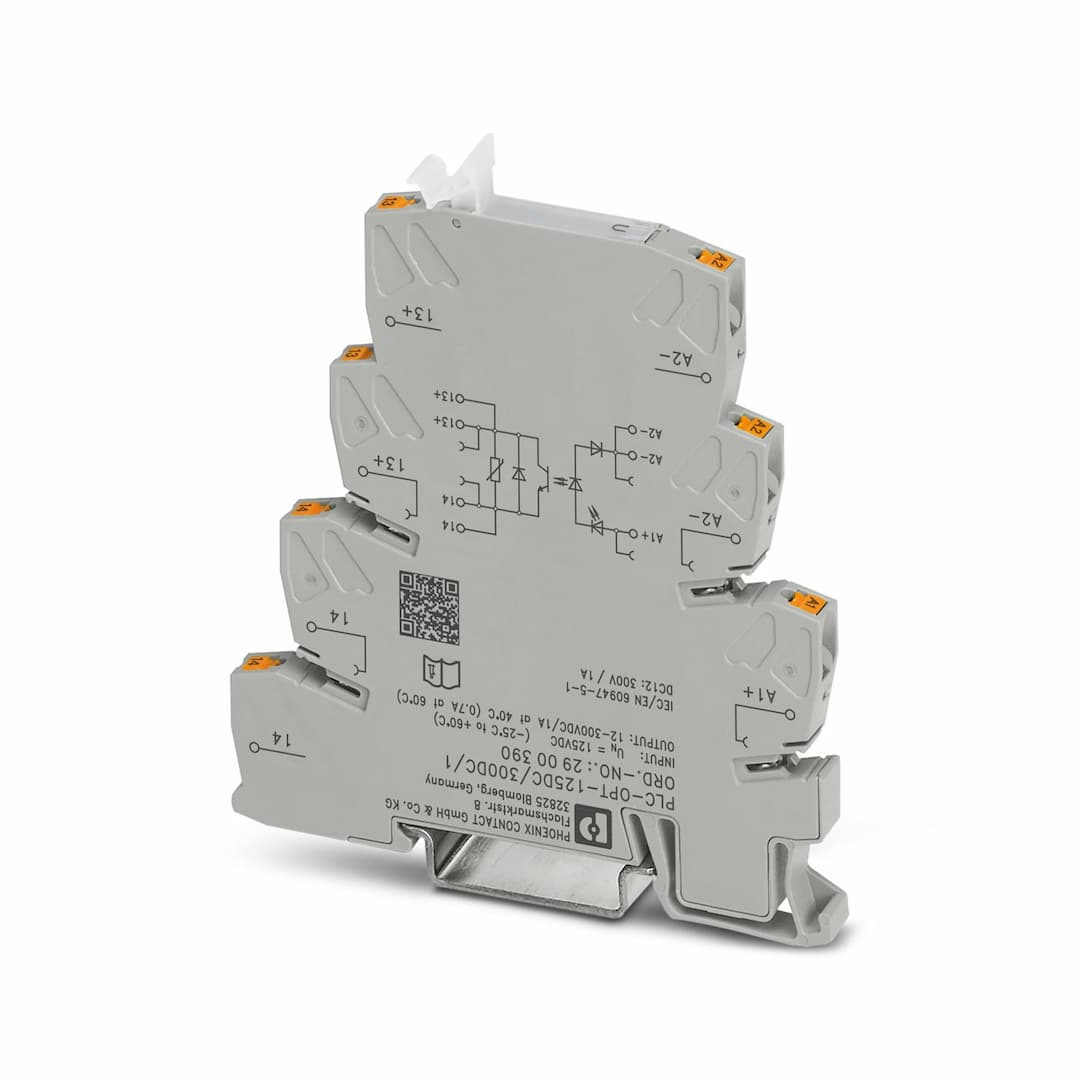

Product Model
PLC-OPT-125DC/300DC/1
Key Features
- 1Efficient Energy Consumption: Operates at a nominal input voltage of 125 V DC with an input voltage range of 100 V DC to 138 V DC, ensuring efficient energy consumption.
- 2Rapid Switching: Features a typical input current of 6 mA and rapid response time, providing quick and reliable switching.
- 3High Reliability: Equipped with a protective circuit including reverse polarity protection and a polarity protection diode, ensuring high reliability in industrial settings.
- 4Versatile Output Range: Handles output voltages from 12 V DC to 300 V DC, making it suitable for various applications.
- 5Easy Installation: Offers push-in connection and DIN rail mounting, simplifying installation and integration into industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | With integrated solid-state relay | Operating mode | 100% operating factor |
| Date of last data management | 16.09.2024 | Article revision | 07 |
| Insulation | Basic insulation | Overvoltage category | III |
| Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.75 W |
| Rated insulation voltage | 300 V | Rated surge voltage | 4 kV |
| Nominal input voltage U | 125 V DC | Input voltage range in reference to U | 0.8 ... 1.1 |
| Input voltage range | 100 V DC ... 138 V DC | Typical input current at U | 6 mA |
| Transmission frequency | 50 Hz | Designation | Output data |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output voltage range | 12 V DC ... 300 V DC (Partition plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal points in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) | Limiting continuous current | 1 A (see derating curve) |
| Voltage drop at max. limiting continuous current | < 500 mV | Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Varistor |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60947-5-1 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
