Product Model

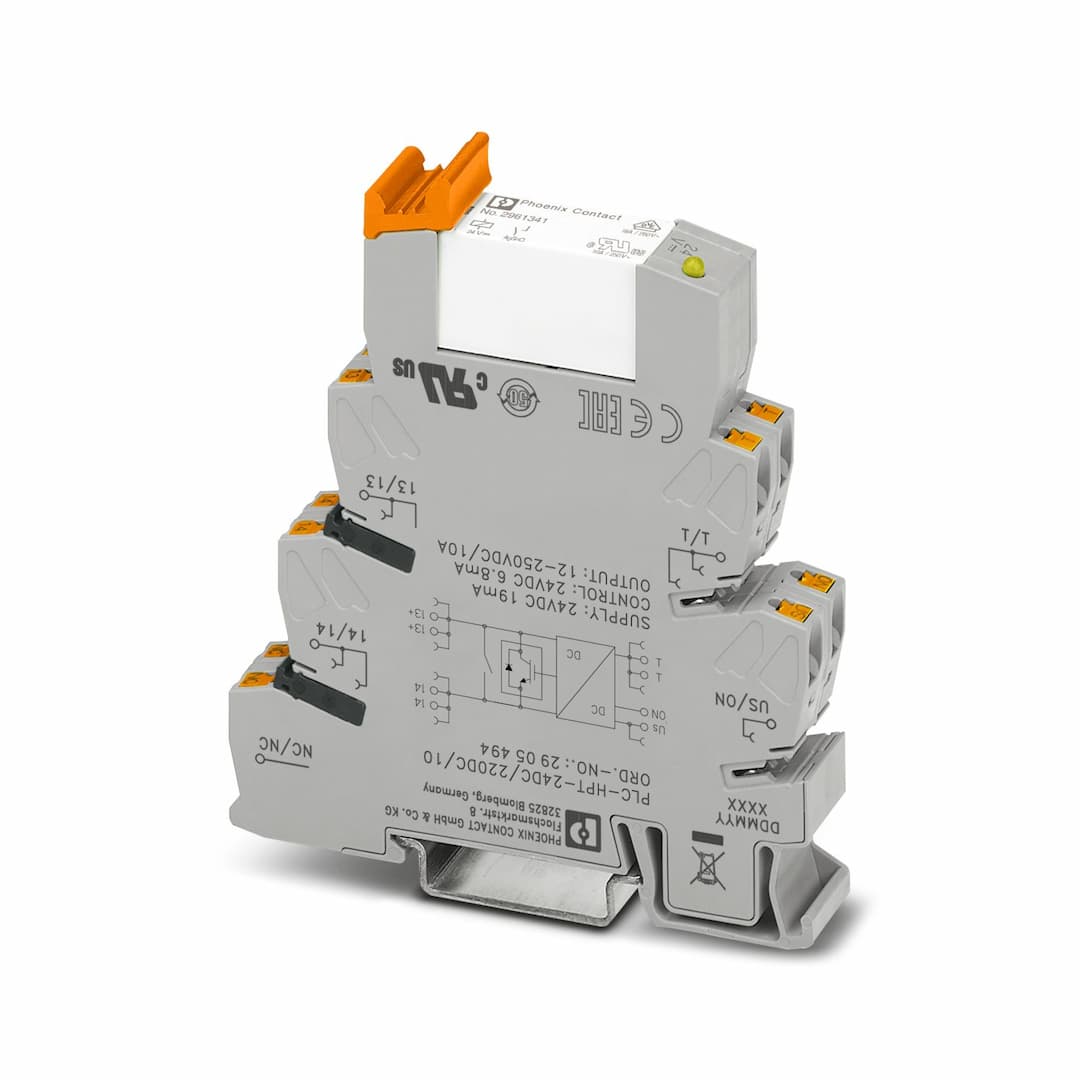

PLC-HPT-24DC/220DC/10
Key Features
- 1Operates at a nominal input voltage, ensuring efficient energy consumption.
- 2Provides rapid response time of 20 ms for quick and reliable switching.
- 3Handles a limiting continuous current of 10 A (see derating curve).
- 4Features a 2-conductor / N/O contact in parallel operation (no electrical disconnection) design.
- 5Uses push-in connection method for easy and secure mounting on DIN rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state relay module | Product family | PLC-INTERFACE |
| Application | Output function | Operating mode | 100% operating factor |
| Date of last data management | 08.07.2024 | Article revision | 02 |
| Insulation | safe isolation | Overvoltage category | III |
| Pollution degree | 2 | Test voltage | 4 kV |
| Rated insulation voltage | 260 V AC | Rated surge voltage | 6 kV |
| Rated control circuit supply voltage U | 24 V DC | Voltage range with reference to U | 0.8 ... 1.2 |
| Rated control supply current I | ≤ 19 mA | Rated actuating voltage U | 24 V DC |
| Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 6.8 mA |
| Nominal voltage (plugged-in solid-state relay) | 24 V DC | "0" signal switching threshold in reference to U | < 0.4 |
| "1" signal switching threshold in reference to U | > 0.8 | Typical response time | 20 ms |
| Typical turn-off time | 40 ms | Status display | LED (yellow) |
| Protective circuit | Reverse polarity protection
Surge protection | Surge voltage protection | > 33 V DC |
| Transmission frequency | 1 Hz | Designation | DC hybrid output |
| Contact switching type | 1 N/O contact | Design of digital output | electronic |
| Output voltage range | 12 V DC ... 250 V DC | Limiting continuous current | 10 A (see derating curve) |
| Maximum inrush current | 60 A (5 ms; T | Min. load current | 100 mA |
| Surge voltage protection | > 275 V | Output circuit | 2-conductor / N/O contact in parallel operation (no electrical disconnection) |
| Protective circuit | Inverse diode (No continuous protection against polarity reversal)
Varistor | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Width | 14 mm | Height | 80 mm |
| Depth | 94 mm | Color | gray (RAL 7042) |
| Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT II (Relay) |
| Degree of protection (Installation location) | IP54 (Installation location) | Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
| Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
| Assembly note | See derating curve | Mounting position | any |
Specifications may be subject to change without notice
