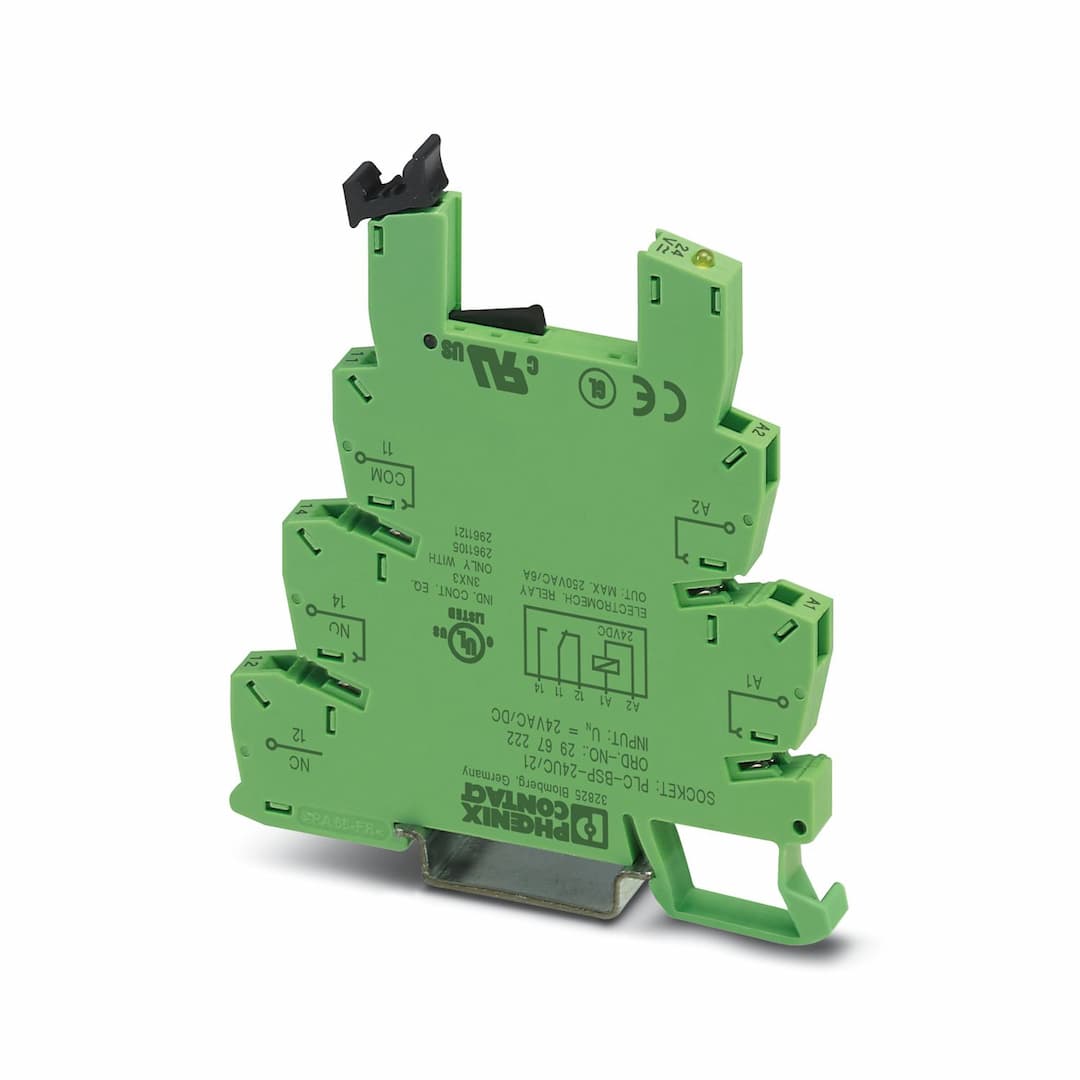

Product Model
PLC-BSP- 24UC/21
Key Features
- 1Securely connects conductors with a spring-cage mechanism.
- 2Measures 14 mm wide, 80 mm high, and 94 mm deep for easy installation.
- 3Compatible with DIN rail NS 35/7.5, allowing for flexible mounting options.
- 4Supports both 24 V AC and DC input voltages.
- 5Designed for operation in ambient temperatures from -40°C to 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | Universal |
| Set comprises | 2966485 PLC-RSP- 24UC/21
2966553 PLC-RSP- 24UC/21AU | Operating mode | 100% operating factor |
| Compatible components | Miniature relay, REL-MR-24DC/21AU, REL-MR-24DC/21 | Article revision | 06 |
| Overvoltage category | II | Pollution degree | 2 |
| Protective circuit | Bridge rectifier | Nominal input voltage U | 24 V AC/DC |
| Protective circuit | Bridge rectifier | Nominal input voltage U | 24 V AC/DC |
| Compatible components | Miniature relay, REL-MR-24DC/21AU, REL-MR-24DC/21 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Status display | LED |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
