Product Model

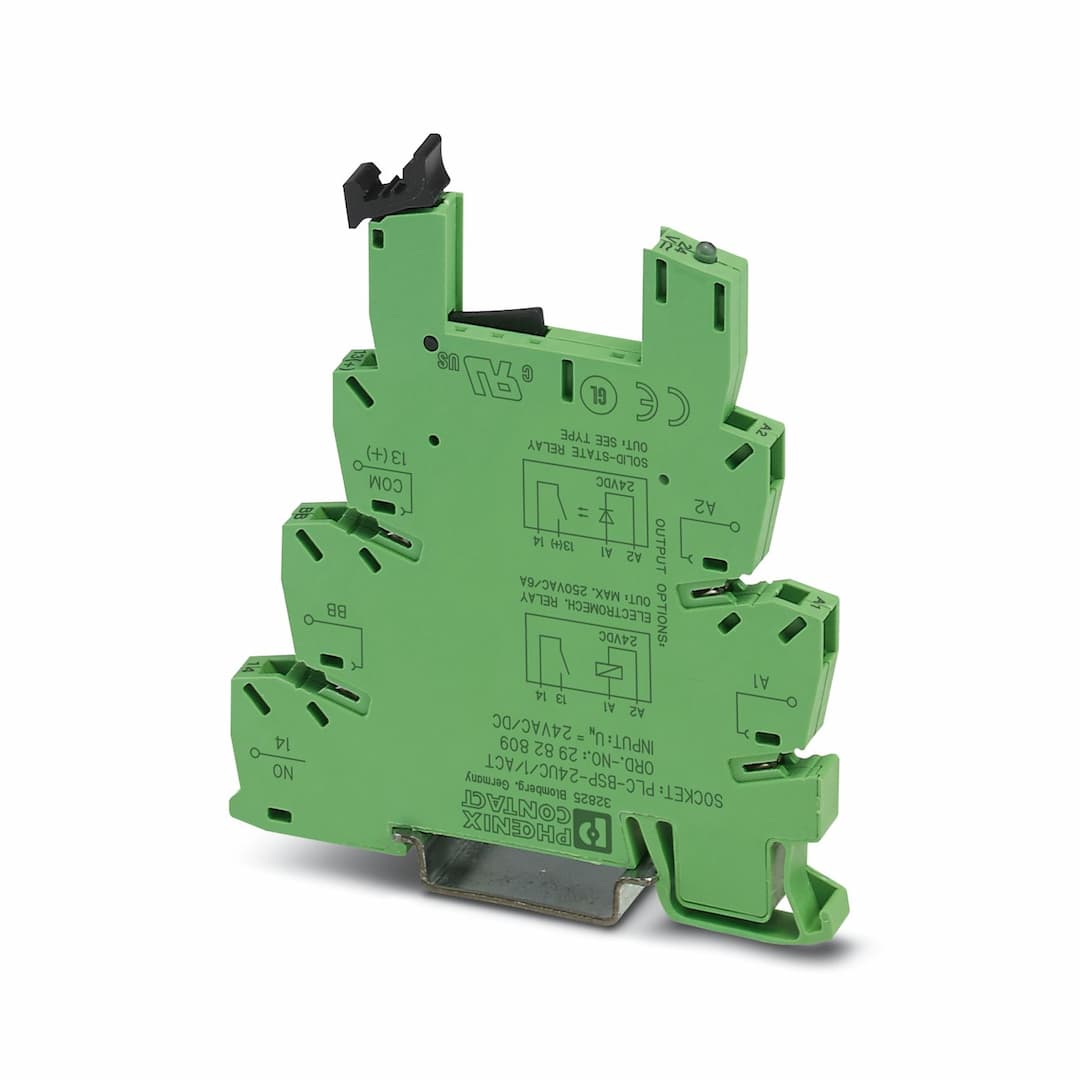

PLC-BSP- 24UC/ 1/ACT
Key Features
- 1Compatible with miniature relays and optocouplers.
- 2Spring-cage connection for solid and flexible conductors.
- 3Operating temperature range: -40 °C to 85 °C.
- 4Flammability rating according to UL 94 V0.
- 5100% operating factor for consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay socket | Product family | PLC-INTERFACE |
| Application | Output function | Operating mode | 100% operating factor |
| Compatible components | Miniature relay, REL-MR-24DC/21, REL-MR-24DC/21AU; miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/48DC/100, OPT-24DC/230AC/1 | Article revision | 03 |
| Nominal input voltage U | 24 V AC/DC | Protective circuit | Bridge rectifier |
| Nominal input voltage U | 24 V AC/DC | Rated control circuit supply voltage U | 24 V AC/DC |
| Voltage range with reference to U | 0.8 ... 1.2 | Typical input current at U | 15.6 mA (50 Hz)
8.5 mA (60 Hz) |
| Typical response time | 5 ms | Typical release time | 30 ms |
| Operating voltage display | Yellow LED | Protective circuit | Bridge rectifier; Bridge rectifier |
| Rated control circuit supply voltage U | 24 V AC/DC | Voltage range with reference to U | 0.8 ... 1.2 |
| Typical input current at U | 15 mA (50 Hz)
8.3 mA (60 Hz) | Typical response time | 10 ms |
| Typical release time | 20 ms | Operating voltage display | Yellow LED |
| Protective circuit | Bridge rectifier; Bridge rectifier | Compatible components | Miniature relay, REL-MR-24DC/21, REL-MR-24DC/21AU; miniature optocoupler, OPT-24DC/24DC/2, OPT-24DC/48DC/100, OPT-24DC/230AC/1 |
| Maximum switching voltage | 33 V DC | Minimum switching voltage | 3 V DC |
| Limiting continuous current | 3 A (see derating curve) | Voltage drop at max. limiting continuous current | ≤ 150 mV |
| Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection Parallel polarity protection diode
Surge protection |
| Maximum switching voltage | 48 V DC | Minimum switching voltage | 3 V DC |
| Limiting continuous current | 100 mA | Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor, floating | Protective circuit | Reverse polarity protection Parallel polarity protection diode
Surge protection |
| Maximum switching voltage | 253 V AC | Minimum switching voltage | 24 V AC |
| Limiting continuous current | 0.75 A (see derating curve) | Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor floating, zero voltage switch | Protective circuit | RCV circuit |
| Leakage current | ≤ 1 mA | Max. load value | 4.5 A |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
