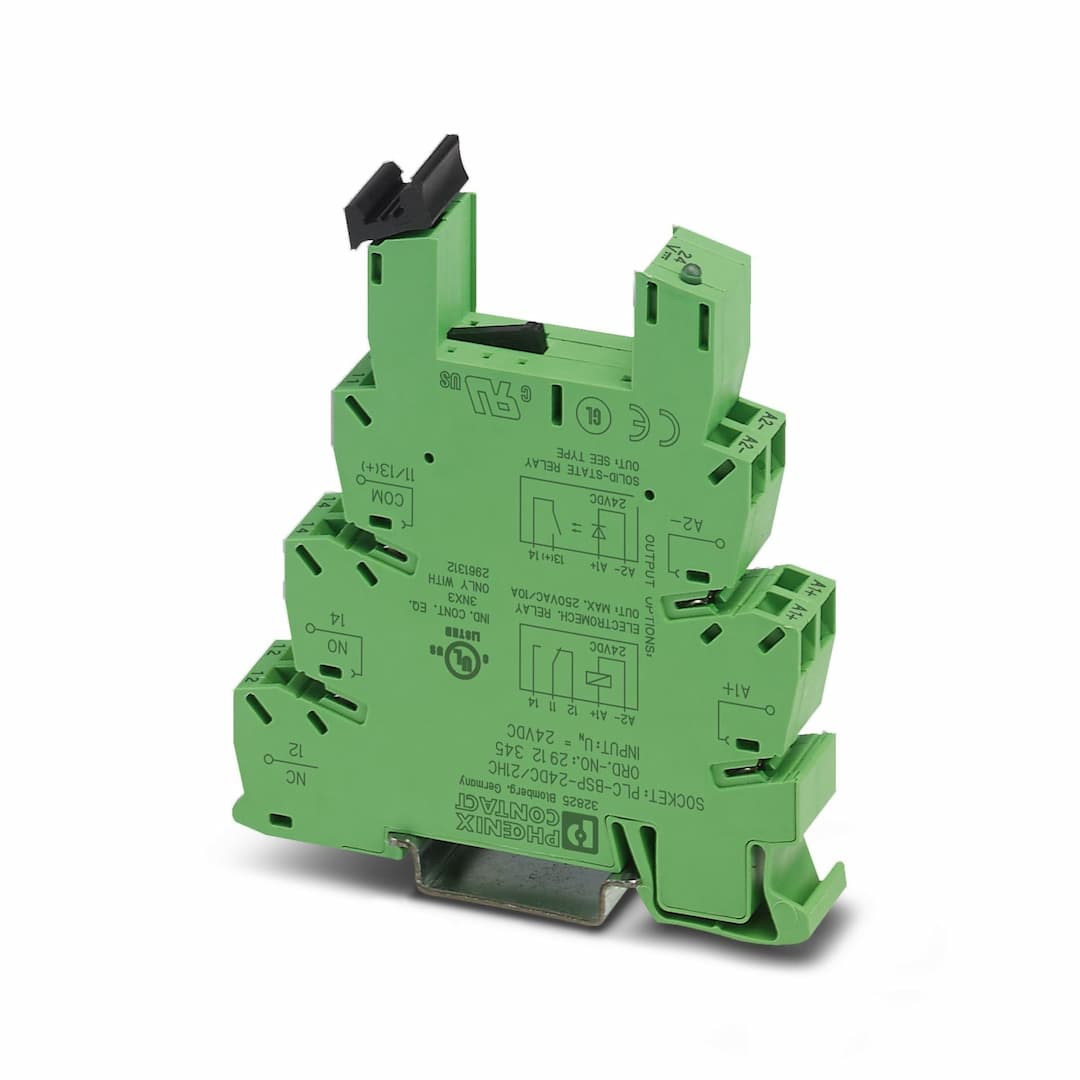

Product Model
PLC-BSP- 24DC/21HC
Key Features
- 1High Current Capability: Handles high continuous currents with a reliable spring-cage connection method.
- 2Compact Design: 14 mm PLC basic terminal block for efficient mounting on DIN rail NS 35/7,5.
- 3Versatile Compatibility: Compatible with miniature relays and optocouplers for various automation needs.
- 4Durable Construction: Constructed with solid and stranded conductors up to 2.5 mm², ensuring robust performance.
- 5Compliance and Certifications: Meets WEEE/RoHS compliance standards and is UL Listed/CUL Listed for safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | High continuous currents |
| Set comprises | 2912277 PLC-RSP- 24DC/21HC | Operating mode | 100% operating factor |
| Compatible components | Miniature relay, REL-MR-24DC/1IC/ACT; miniature optocoupler, OPT-24DC/24DC/5, OPT-24DC/230AC/2 | Article revision | 06 |
| Nominal input voltage U | 24 V DC | Protective circuit | Freewheeling diode |
| Nominal input voltage U | 24 V DC | Compatible components | Miniature relay, REL-MR-24DC/1IC/ACT; miniature optocoupler, OPT-24DC/24DC/5, OPT-24DC/230AC/2 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Width | 14 mm | Height | 80 mm |
| Depth | 94 mm | Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
