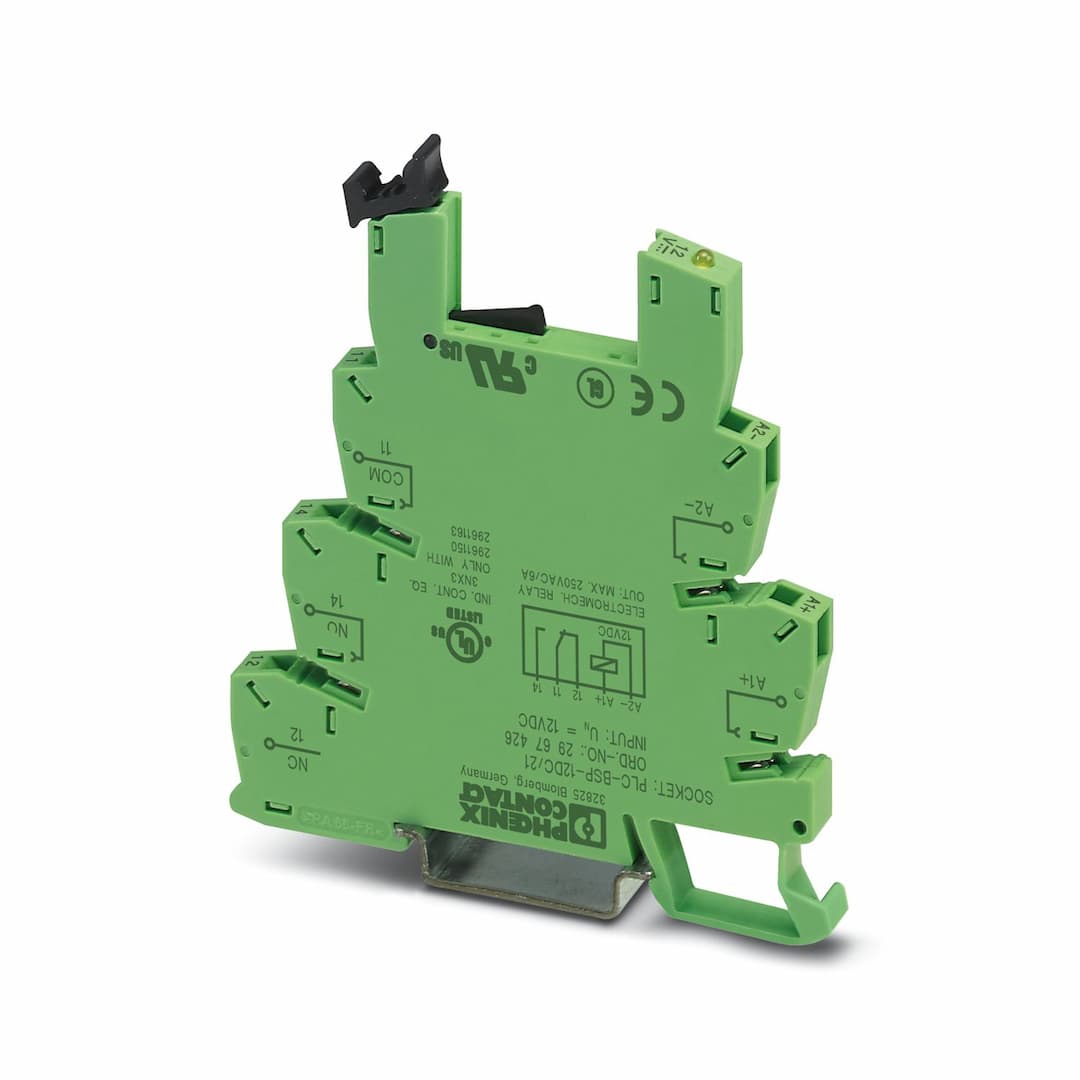

Product Model
PLC-BSP- 12DC/21
Key Features
- 16.2 mm width, perfect for space-saving applications.
- 2Secure and reliable connection method.
- 3Easy installation on DIN rail NS 35/7,5.
- 4Supports 1 changeover contact for versatile usage.
- 5Compatible with 12 V DC power supply systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | Universal |
| Set comprises | 2967439 PLC-RSP- 12DC/21
2967442 PLC-RSP- 12DC/21AU | Operating mode | 100% operating factor |
| Compatible components | Miniature relay, REL-MR-12DC/21AU, REL-MR-12DC/21 | Protective circuit | Damping diode, polarity protection diode |
| Nominal input voltage U | 12 V DC | Protective circuit | Freewheeling diode |
| Nominal input voltage U | 12 V DC | Compatible components | Miniature relay, REL-MR-12DC/21AU, REL-MR-12DC/21 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Status display | LED | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
