Product Model

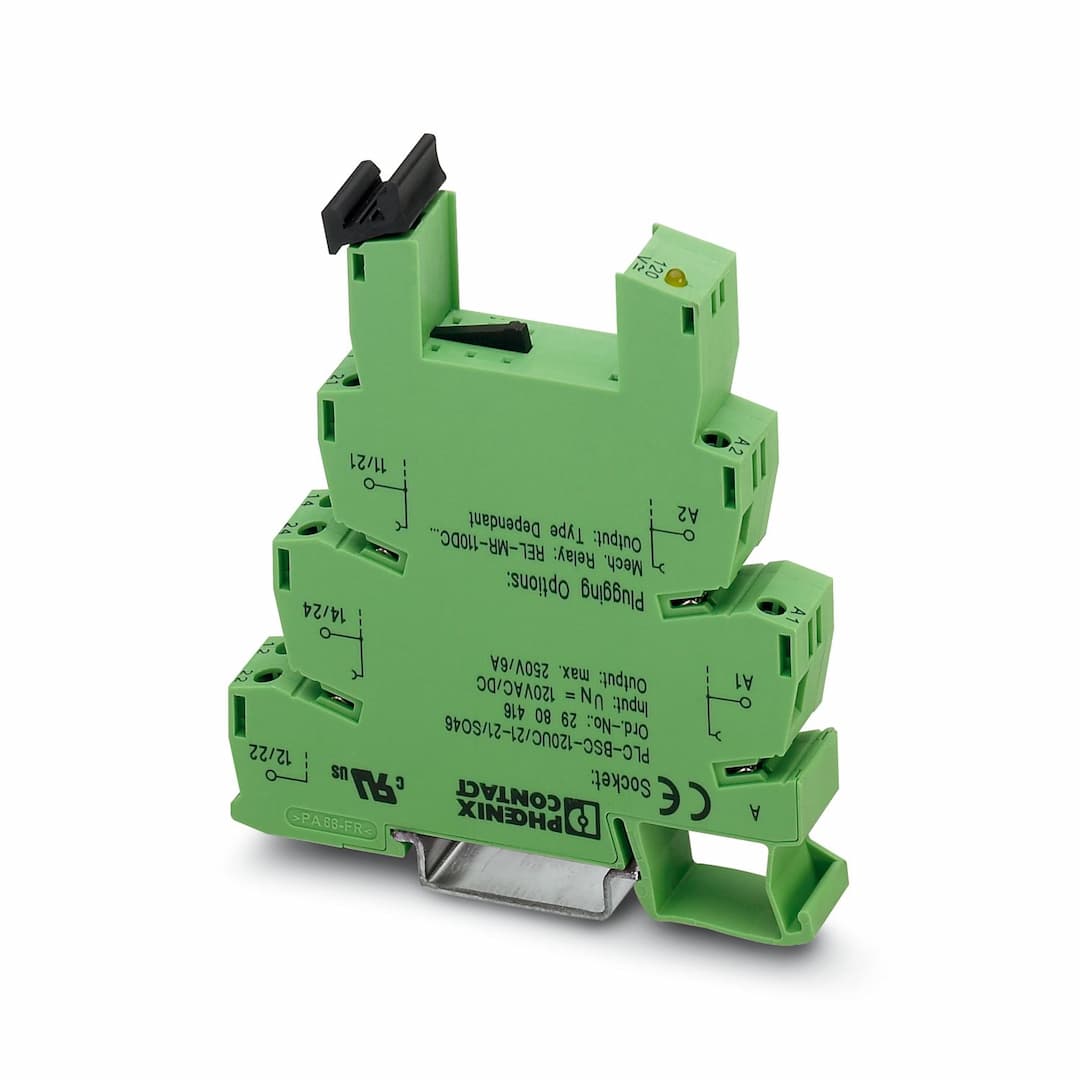

PLC-BSP-120UC/21HC
Key Features
- 1High continuous currents for reliable operation.
- 2Spring-cage connection for secure conductor termination.
- 3Robust design with insulation class UL 94 V0.
- 4Compatible with DIN rail NS 35/7,5 for easy mounting.
- 5Ideal for applications requiring high current handling and interference protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | High continuous currents |
| Set comprises | 2912316 PLC-RSP-120UC/21HC | Operating mode | 100% operating factor |
| Nominal input voltage U | 120 V AC/DC | Protective circuit | Bridge rectifier |
| Nominal input voltage U | 120 V AC/DC | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 14 |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Width | 14 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
