Product Model

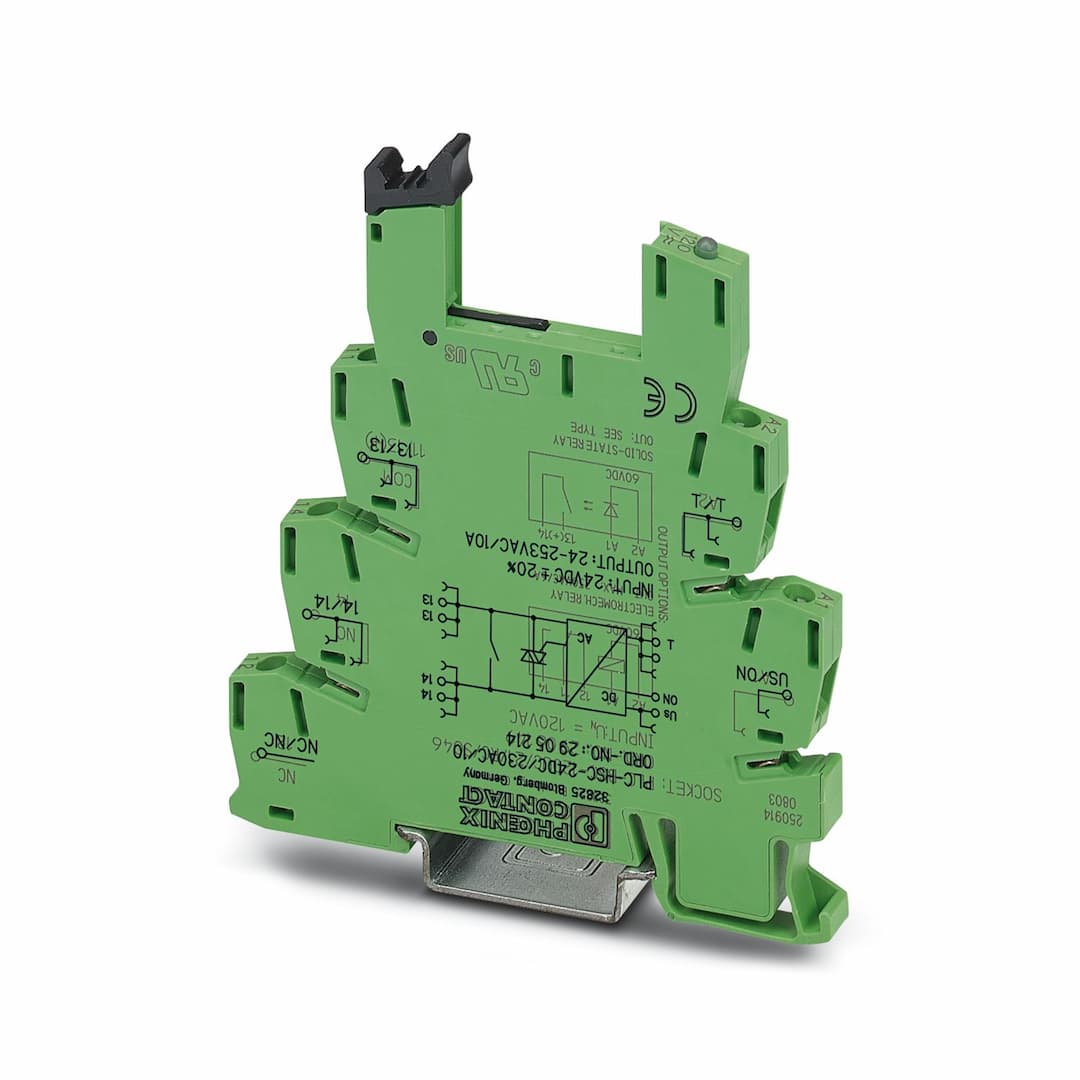

PLC-BSC-120UC/21/RC/SO46
Key Features
- 1High Relay Release Voltage: Ensures reliable switching operations.
- 2Robust Interference Protection: Shields against interference currents and voltages.
- 3Integrated RCZ Filter: Enhances signal quality and reduces noise.
- 4DIN Rail Mounting: Convenient and space-efficient installation.
- 5Screw Connection: Secure and easy-to-use terminal connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | Filter to prevent interference |
| Operating mode | 100% operating factor | Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21 |
| Article revision | 00 | Overvoltage category | III |
| Pollution degree | 2 | Protective circuit | Bridge rectifier; Bridge rectifier
RCZ filter; RCZ filter |
| Nominal input voltage U | 120 V AC
120 V AC | Nominal input voltage U | 120 V AC |
| Input voltage range in reference to U | 0.8 ... 1.4 | Typical input current at U | 10.5 mA (50 Hz)
12 mA (60 Hz) |
| Typical response time | 7 ms | Typical release time | 20 ms |
| Typical release voltage | 50 V AC | Operating voltage display | Yellow LED |
| Protective circuit | Bridge rectifier; Bridge rectifier
Filter; Filter | Compatible components | Miniature relay, REL-MR-60DC/21AU, REL-MR-60DC/21 |
| Connection method | Screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -25 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Standards/regulations | IEC 60255/DIN VDE 0435 (in relevant parts)
DIN EN 50178/VDE 0160 (in relevant parts) | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
