Product Model

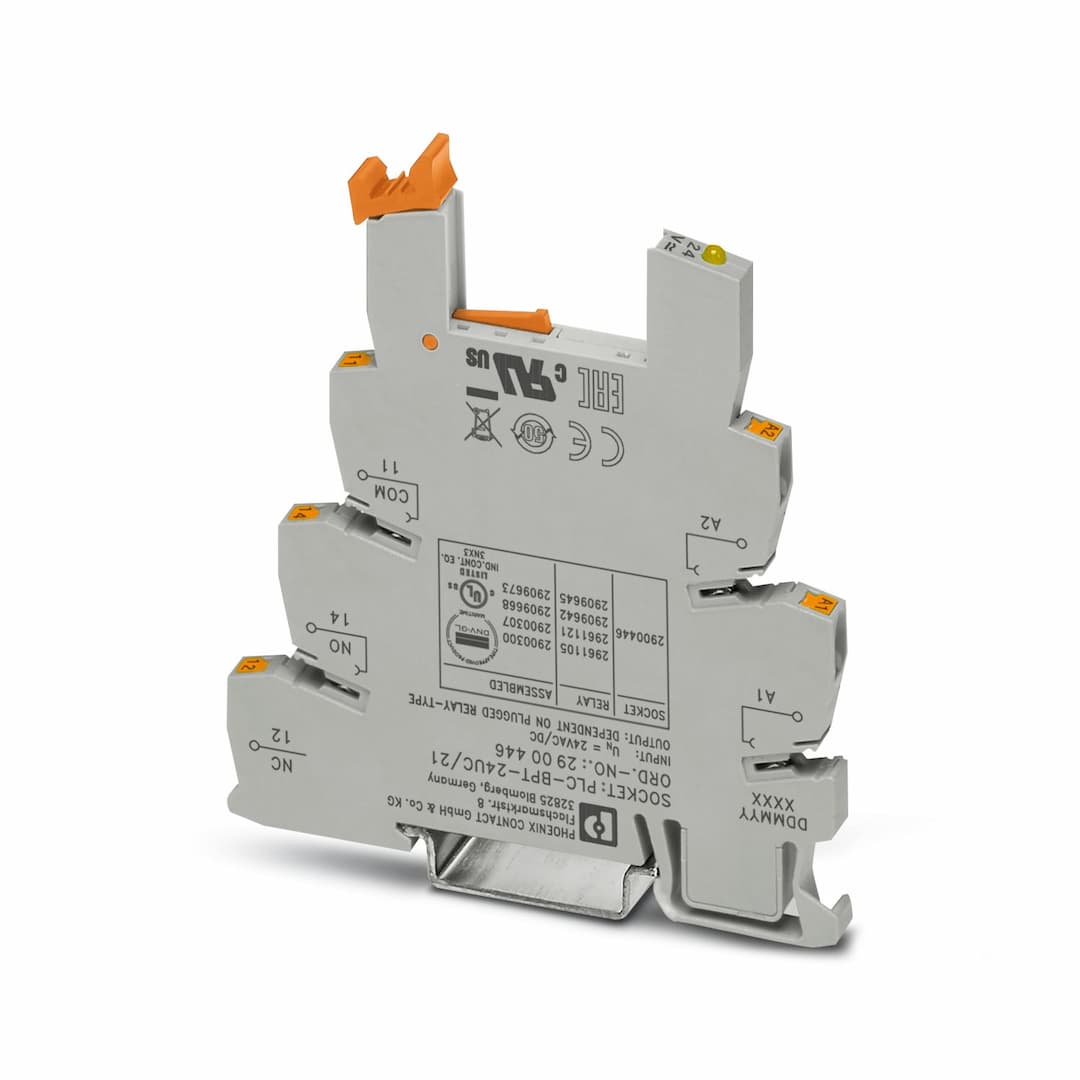

PLC-BPT- 24UC/21
Key Features
- 1Universal Compatibility: Suitable for various applications with a universal operating mode.
- 2100% Operating Factor: Ensures reliable performance in demanding environments.
- 3Robust Push-in Connections: Secure and easy-to-use connections with stripping length of 10 mm.
- 4LED Status Display: Visual indication of status through an integrated LED.
- 5DIN Rail Mounting: Conveniently mounts on DIN rail NS 35/7,5 for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500.... | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Relay socket | Product family | PLC-INTERFACE |
| Application | Universal | Operating mode | 100% operating factor |
| Article revision | 05 | Overvoltage category | II |
| Pollution degree | 3 | Protective circuit | Bridge rectifier |
| Nominal input voltage U | 24 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | Protective circuit | Bridge rectifier |
| Nominal input voltage U | 24 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Status display | LED | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
| Mounting position | any |
Specifications may be subject to change without notice
