Product Model

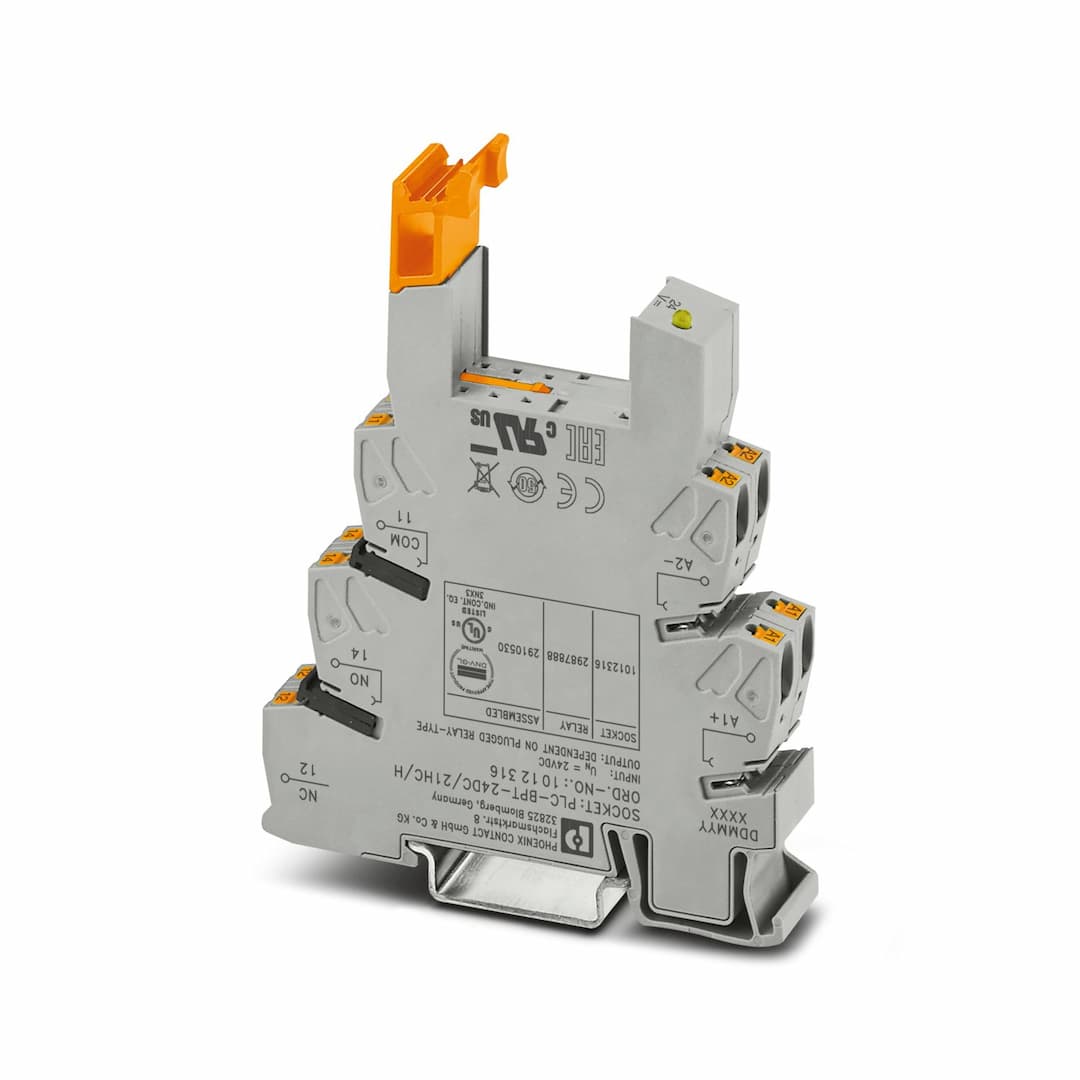

PLC-BPT- 24DC/21HC/H
Key Features
- 1High Continuous Currents: Handles high continuous currents with push-in connection.
- 2DIN Rail Mounting: Easy installation on DIN rail NS 35/7,5.
- 3Reliable Protection: Equipped with freewheeling diode and polarity protection diode.
- 4Compact Design: 14 mm width, 80 mm height, and 94 mm depth for space-efficient use.
- 5Versatile Connectivity: Supports solid conductor cross sections from 0.14 mm² to 2.5 mm² and flexible options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay socket | Product family | PLC-INTERFACE |
| Application | High continuous currents | Operating mode | 100% operating factor |
| Article revision | 02 | Protective circuit | Damping diode, polarity protection diode |
| Nominal input voltage U | 24 V DC | Protective circuit | Freewheeling diode |
| Nominal input voltage U | 24 V DC | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Status display | LED | Width | 14 mm |
| Height | 80 mm | Depth | 104 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
