Product Model

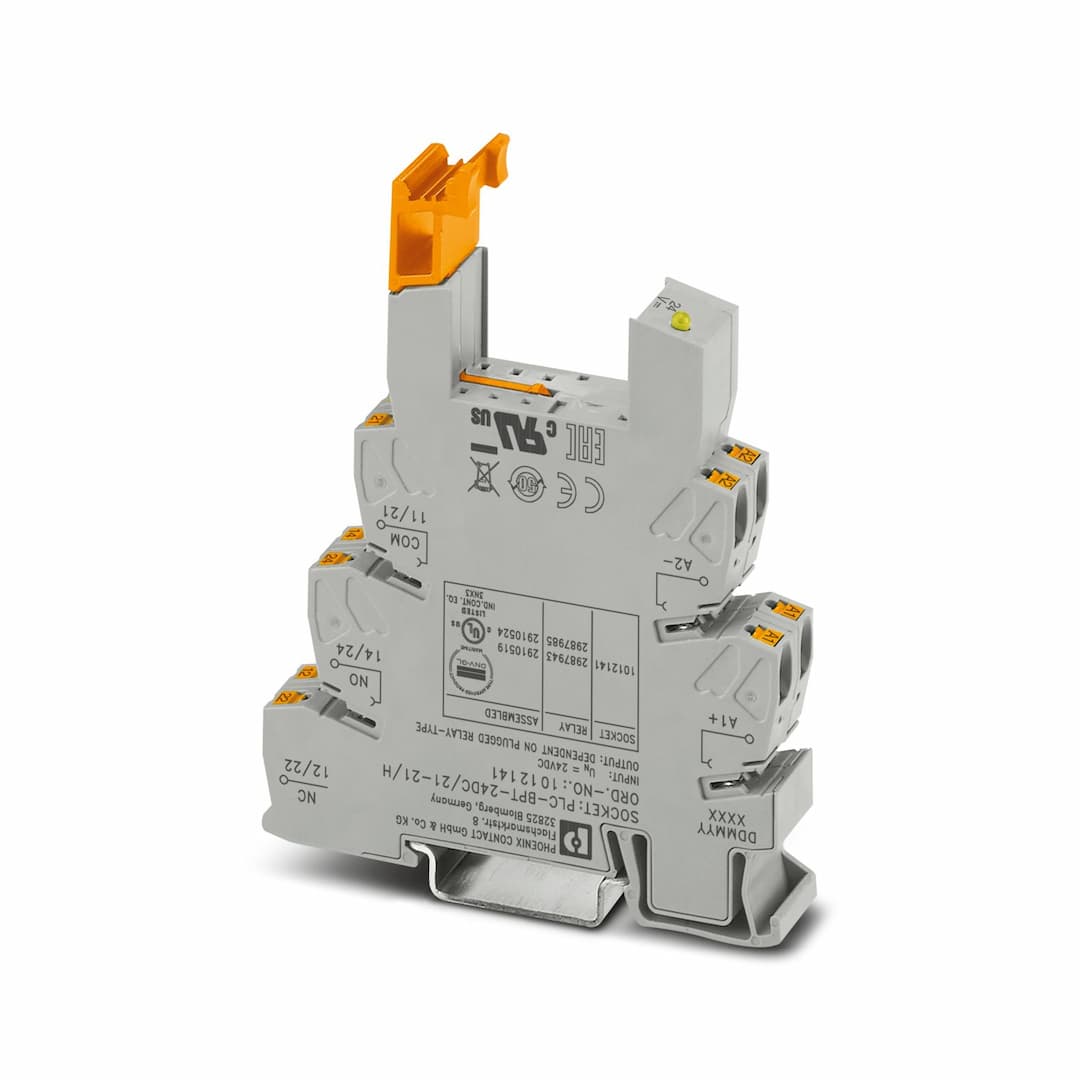

PLC-BPT- 24DC/21-21/H
Key Features
- 1Efficient Push-in Connection: Quick and easy connection method for solid and flexible conductors.
- 2Freewheeling Diode Protection: Ensures safe operation with built-in freewheeling diodes.
- 3Versatile DIN Rail Mounting: Compatible with DIN rail NS 35/7,5 for flexible mounting positions.
- 4Reliable Performance: Operates within -40 °C to 60 °C ambient temperature range.
- 5Compact Design: Measuring 14 mm wide and 80 mm high, suitable for space-constrained installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay socket | Product family | PLC-INTERFACE |
| Application | Universal | Operating mode | 100% operating factor |
| Article revision | 02 | Nominal input voltage U | 24 V DC |
| Protective circuit | Freewheeling diode | Nominal input voltage U | 24 V DC |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Status display | LED |
| Width | 14 mm | Height | 80 mm |
| Depth | 104 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Certificate | UKCA-compliant | Certificate | TAE0000196 |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
| Humidity | A | Vibration | B/C |
| EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
