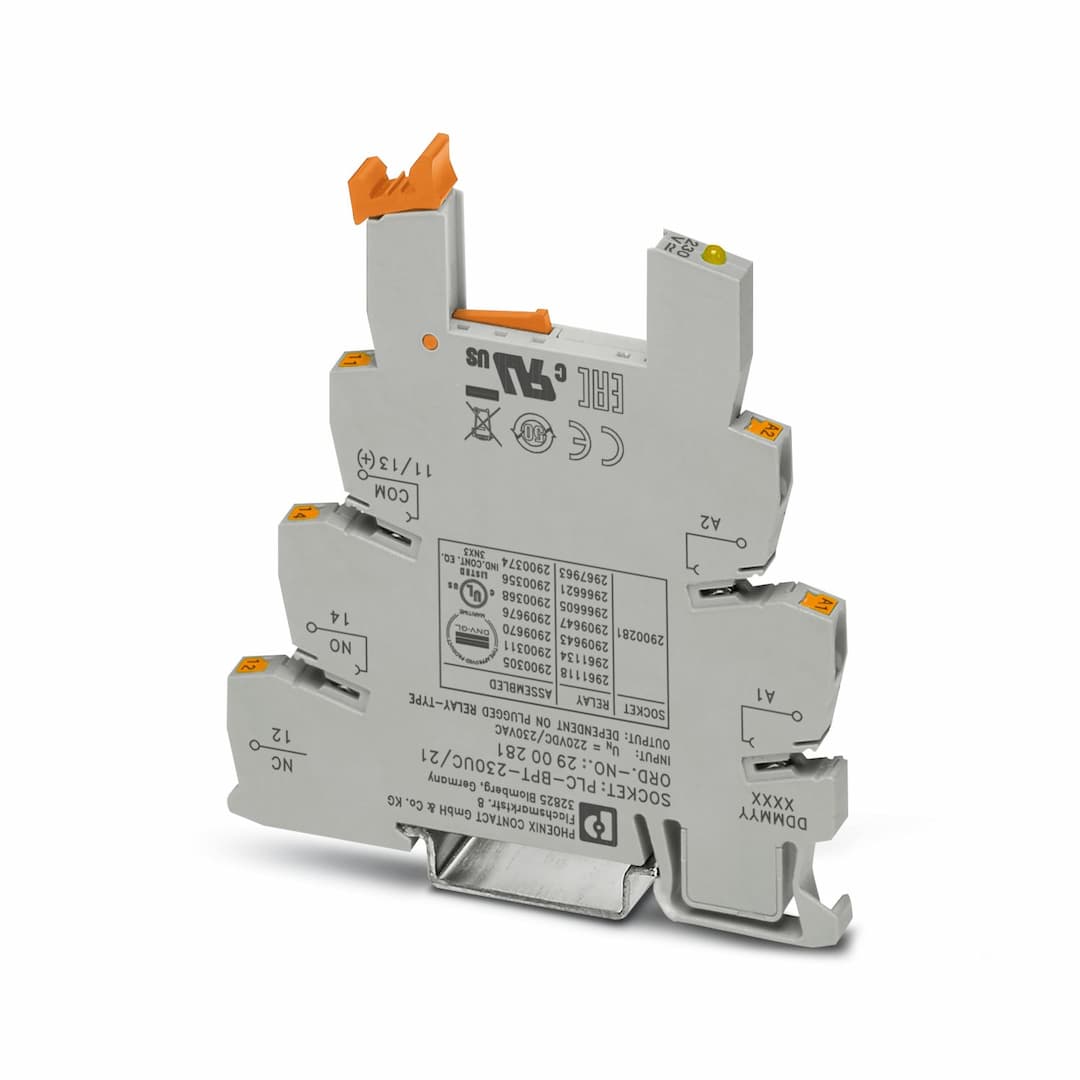

Product Model
PLC-BPT-230UC/21
Key Features
- 1Reliable Automation Solution: Designed for industrial automation, ensuring high reliability and efficiency.
- 2Push-in Connections: Easy to use with solid and flexible conductor cross sections up to 2.5 mm².
- 3LED Status Display: Visual indication of operational status for easy monitoring.
- 4Robust Construction: Built to withstand ambient temperatures from -40°C to 55°C.
- 5DIN Rail Mounting: Conveniently mounts on DIN rail NS 35/7,5 for compact installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Relay socket |
| Product family | PLC-INTERFACE | Application | Universal |
| Operating mode | 100% operating factor | Article revision | 05 |
| Overvoltage category | II | Pollution degree | 3 |
| Protective circuit | Bridge rectifier | Nominal input voltage U | 230 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit |
| Protective circuit | Bridge rectifier | Nominal input voltage U | 230 V AC/DC
The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Status display | LED |
| Width | 6.2 mm | Height | 80 mm |
| Depth | 94 mm | Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) | Ambient temperature (operation) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Certificate | UKCA-compliant | Certificate | TAE0000196 |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Temperature | D |
| Humidity | A | Vibration | B/C |
| EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC directive | Low Voltage Directive | Conformance with Low Voltage Directive |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
