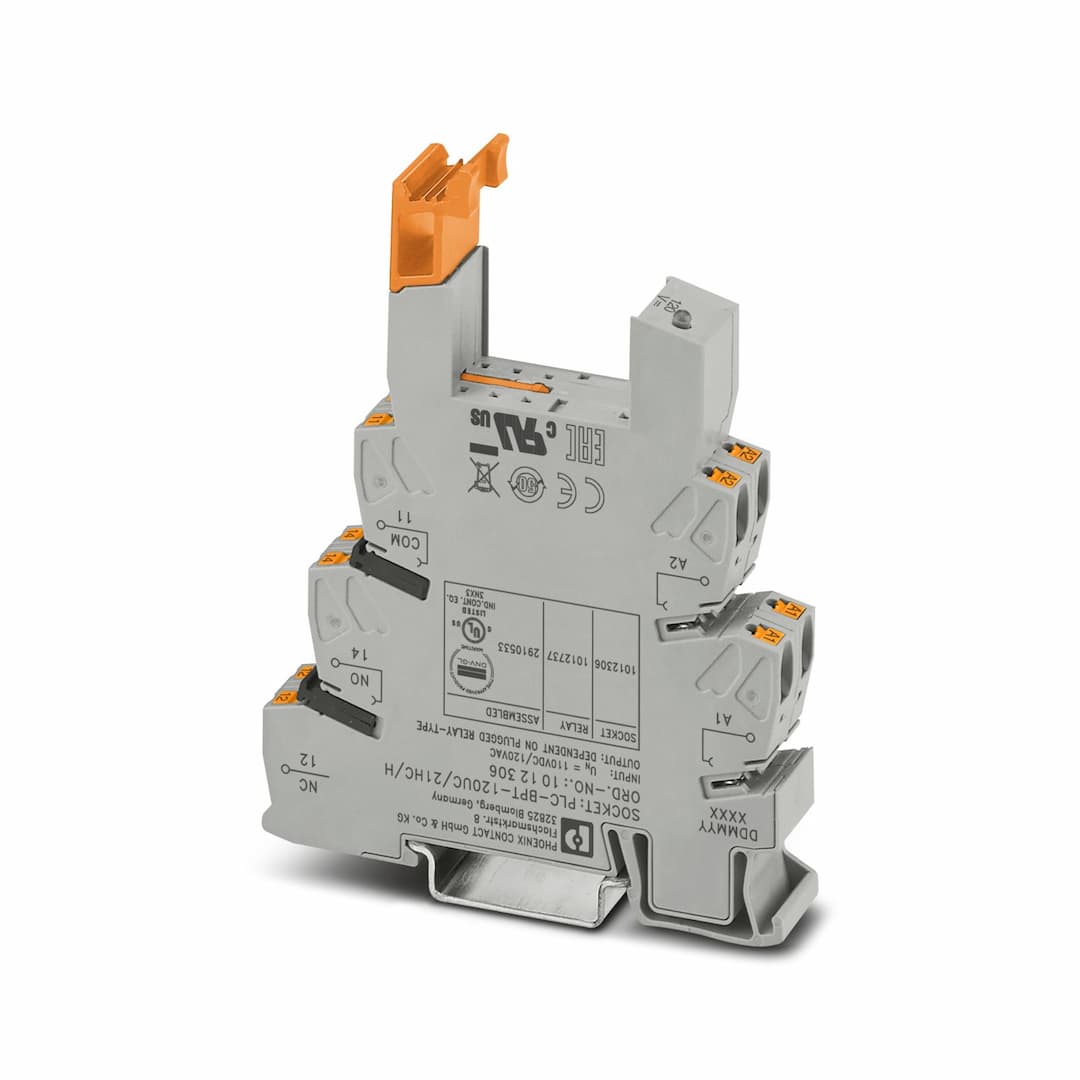

Product Model
PLC-BPT-120UC/21HC/H
Key Features
- 1Universal Compatibility: Suitable for various industrial applications with a universal operating mode.
- 2Push-in Connection: Easy and secure connection method with a stripping length of 10 mm.
- 3LED Status Display: Visual indication of the relay's status through an integrated LED.
- 4Durable Construction: Built with gray (RAL 7042) housing and a flammability rating of V0 according to UL 94.
- 5Comprehensive Certifications: CE-compliant, UKCA-compliant, and TAE0000196 shipbuilding approval certified.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay socket | Product family | PLC-INTERFACE |
| Application | High continuous currents | Operating mode | 100% operating factor |
| Article revision | 02 | Protective circuit | Bridge rectifier |
| Nominal input voltage U | 120 V AC/DC | Protective circuit | Bridge rectifier |
| Nominal input voltage U | 120 V AC/DC | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) | Conductor cross section AWG | 26 ... 14 |
| Status display | LED | Width | 14 mm |
| Height | 80 mm | Depth | 104 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Ambient temperature (operation) | -40 °C ... 55 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Certificate | TAE0000196 | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
| Temperature | D | Humidity | A |
| Vibration | B/C | EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
