Product Model

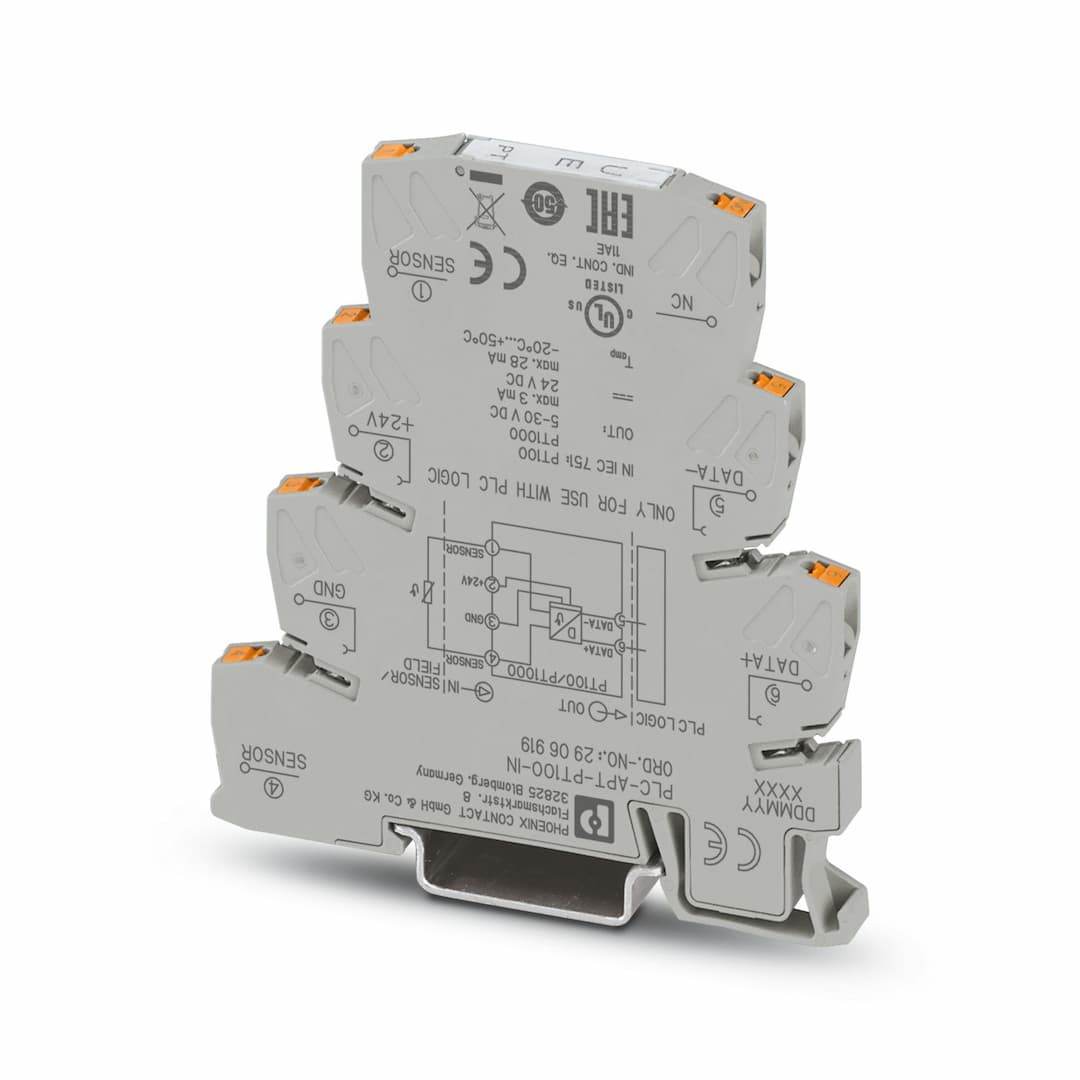

PLC-APT-PT100-IN
Key Features
- 1Easily switch between Pt100 and Pt1000 temperature signals.
- 2Reliable operation with a standard 24V DC power supply.
- 3Simple and efficient connection technology for easy integration.
- 4Accurate temperature measurement across a wide range.
- 5Enhanced protection against voltage surges for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Extension module |
| Product family | PLC logic | Operating mode | 100% operating factor |
| Article revision | 04 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
| Rated control circuit supply voltage U | 24 V DC | Rated control supply voltage range with reference to U | 0.8 ... 1.1 |
| Rated control supply current I | 14 mA | Protective circuit | Reverse polarity protection
Surge protection |
| Sensor types (RTD) that can be used | Pt 100 (IEC 60751, α = 0,00385) | Number of inputs | 1 |
| Connection technology | 2-conductor | Sensor input current | 900 µA |
| Temperature measuring range | -50 °C ... 200 °C | Maximum temperature coefficient | 0.01 %/K |
| Maximum transmission error | 1 % | Surge voltage protection | > 33 V |
| Resolution | 10 bit (scaled to 0 to 1000) | Sensor types (RTD) that can be used | Pt 1000 (IEC 60751, α = 0.00385) |
| Number of inputs | 1 | Connection technology | 2-conductor |
| Sensor input current | 900 µA | Temperature measuring range | -50 °C ... 200 °C |
| Maximum temperature coefficient | 0.01 %/K | Maximum transmission error | 1 % |
| Surge voltage protection | > 33 V | Resolution | 10 bit (scaled to 0 to 1000) |
| Output name | Digital output | Switching voltage range | 5 V DC ... 30 V DC |
| Switching current | ≤ 3 mA | Connection method | Push-in connection |
| Stripping length | 10 mm | Number of connections | 4 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 | Operating voltage display | Green LED |
| Error indication | Red LED | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Certificate | CE-compliant | Identification | UL 508 Listed |
| Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
