Product Model

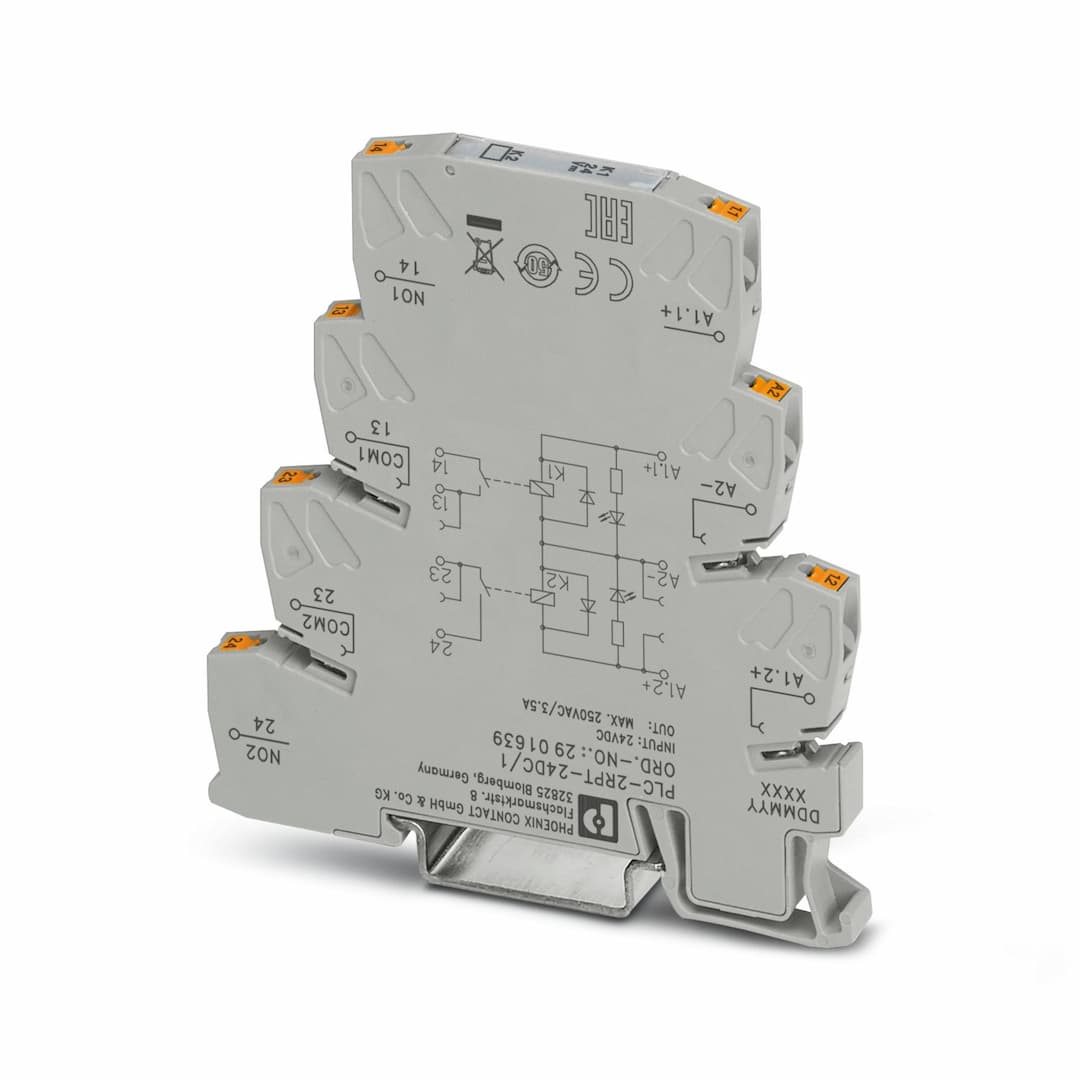

PLC-2RPT-24DC/1
Key Features
- 1Compact 6.2 mm housing with 2 independent relays.
- 2100% operating factor and 2x 10^7 cycles mechanical service life.
- 3Reverse polarity protection, polarity protection diode, and free-wheeling diode.
- 4Push-in connection with stripping length of 8 mm for solid and flexible conductors.
- 5Suitable for mounting on DIN rail NS 35/7,5 with IP20 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Relay Module | Product family | PLC-INTERFACE |
| Application | two integrated relays | Operating mode | 100% operating factor |
| Mechanical service life | 2x 10 | Date of last data management | 16.09.2024 |
| Article revision | 08 | Insulation | Basic insulation |
| Overvoltage category | III | Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.17 W | Test voltage (Winding/contact) | 3 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Contact/contact) | 3 kV AC (50 Hz, 1 min., contact/contact) | Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV | Nominal input voltage U | 24 V DC |
| Input voltage range | 18 V DC ... 33.6 V DC (20 °C) | Drive and function | monostable |
| Drive (polarity) | polarized | Typical input current at U | 7 mA |
| Typical response time | 4 ms | Typical release time | 6 ms |
| Protective circuit | Reverse polarity protection; Polarity protection diode
Surge protection; Freewheeling diode | Operating voltage display | Yellow LED |
| Contact switching type | 2 N/O contacts | Type of switch contact | Single contact |
| Note regarding the switch contact | two integrated relays | Contact material | AgNi |
| Maximum switching voltage | 250 V AC
30 V DC | Minimum switching voltage | 24 V AC/DC |
| Limiting continuous current | 3.5 A | Maximum inrush current | 5 A |
| Min. switching current | 5 mA | Interrupting rating (ohmic load) max. | 84 W (at 24 V DC)
24 W (at 48 V DC)
24 W (at 60 V DC)
31 W (at 110 V DC)
46 W (at 220 V DC)
875 VA (for 250 V AC) |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² | Conductor cross section flexible | 0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule) |
| Conductor cross section AWG | 26 ... 14 | Width | 6.2 mm |
| Height | 80 mm | Depth | 94 mm |
| Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 (Housing) |
| Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 60 °C | Certificate | CE-compliant |
| Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive | Standards/regulations | IEC 60664
EN 50178 |
| Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
| Mounting position | any |
Specifications may be subject to change without notice
