Product Model

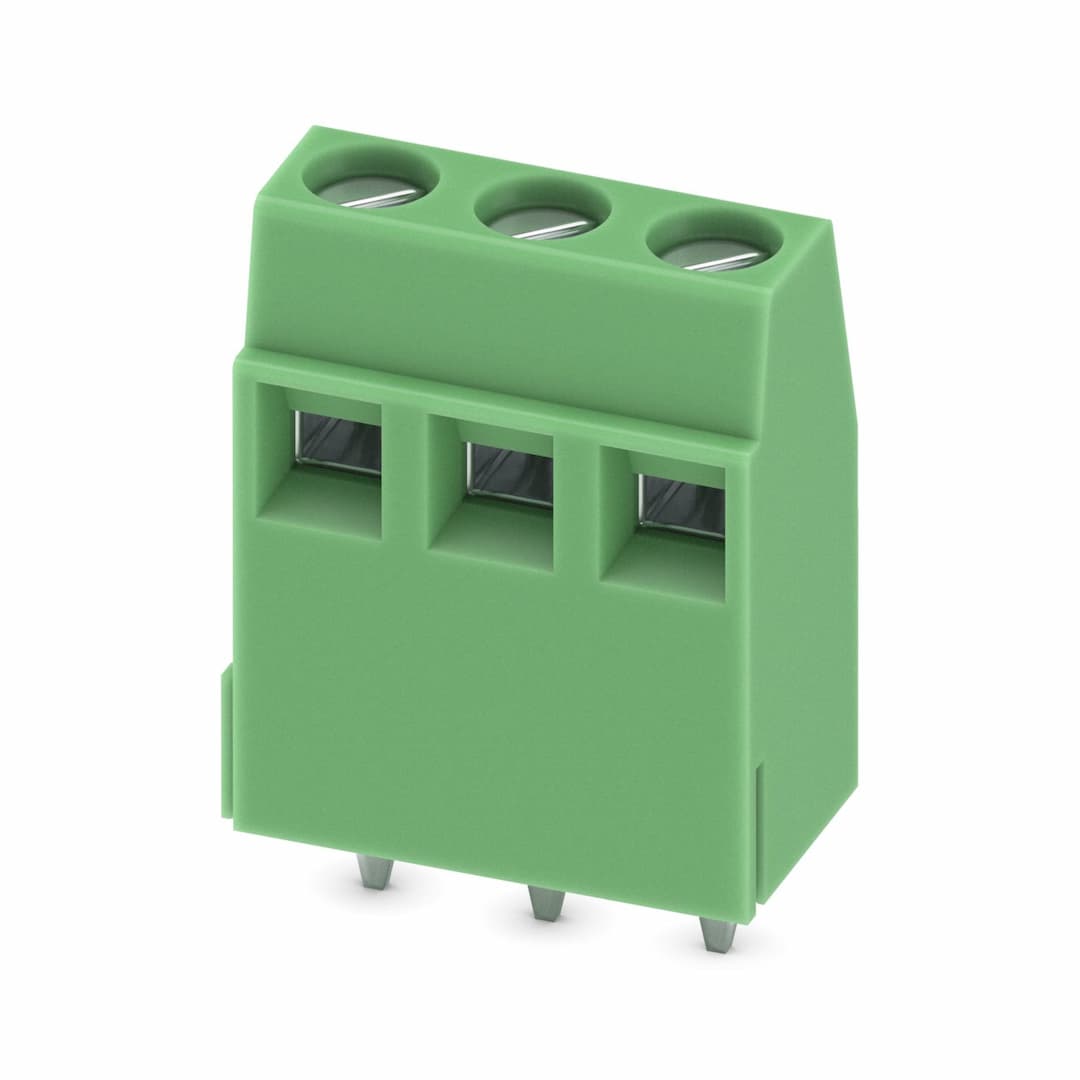

MKKDSNH 1,5/ 3-5,08
Key Features
- 1Well-known connection principle allows worldwide use.
- 2Low temperature rise, thanks to maximum contact force.
- 3Allows connection of two conductors with high contact density.
- 4Extremely small design for the respective conductor cross section.
- 5Latching on the side enables various numbers of positions to be combined.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Printed circuit board terminal | Product family | MKKDSNH 1,5 |
| Product line | COMBICON Terminals S | Type | PC terminal block can be aligned |
| Number of positions | 3 | Pitch | 5.08 mm |
| Number of connections | 3 | Number of rows | 1 |
| Number of potentials | 3 | Pin layout | Linear pinning |
| Solder pins per potential | 1 | Article revision | 05 |
| Nominal current I | 13.5 A | Nominal voltage U | 400 V |
| Rated voltage (III/3) | 250 V | Rated surge voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 400 V | Rated surge voltage (III/2) | 4 kV |
| Rated voltage (II/2) | 630 V | Rated surge voltage (II/2) | 4 kV |
| Type | PC terminal block can be aligned | Nominal cross section | 1.5 mm² |
| Connection method | Screw connection with tension sleeve | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 26 ... 16 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1 mm² | Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with same cross section, solid | 0.14 mm² ... 0.75 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 0.75 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² (1st level: 0.5 mm² ... 1 mm² / 2nd level: 0.5 mm²) |
| Stripping length | 6 mm | Drive form screw head | Slotted (L) |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Mounting type | Wave soldering |
| Pin layout | Linear pinning | Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy | Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) | Metal surface terminal point (middle layer) | Nickel (2 - 3 µm Ni) |
| Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) | Metal surface soldering area (middle layer) | Nickel (2 - 3 µm Ni) |
| Color (Housing) | green (6021) | Insulating material | PA |
| Insulating material group | I | CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 | Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 | Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Pitch | 5.08 mm | Width [w] | 15.24 mm |
| Height [h] | 22.6 mm | Length [l] | 8.6 mm |
| Installed height | 19.1 mm | Solder pin length [P] | 3.5 mm |
| Pin dimensions | 0.5 x 1 mm | Hole diameter | 1.3 mm |
| Specification | IEC 60998-2-1:2002-12 | Result | Test passed |
| Specification | IEC 60998-2-1:2002-12 | Conductor cross section/conductor type/tractive force setpoint/actual value | 0.14 mm² / solid / > 10 N
0.14 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N |
| Specification | IEC 60998-2-1:2002-12 | Specification | IEC 60998-1:2002-12 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K | Specification | IEC 60998-1:2002-12 |
| Insulation resistance, neighboring positions | 10 | Specification | IEC 60664-1:2007-04 |
| Insulating material group | I | Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 250 V | Rated surge voltage (III/3) | 4 kV |
| minimum clearance value - non-homogenous field (III/3) | 3 mm | minimum creepage distance (III/3) | 3.2 mm |
| Note on connection cross section | With connected conductor 1.5 mm² (solid). | Rated insulation voltage (III/2) | 400 V |
| Rated surge voltage (III/2) | 4 kV | minimum clearance value - non-homogenous field (III/2) | 3 mm |
| minimum creepage distance (III/2) | 3 mm | Rated insulation voltage (II/2) | 630 V |
| Rated surge voltage (II/2) | 4 kV | minimum clearance value - non-homogenous field (II/2) | 3 mm |
| minimum creepage distance (II/2) | 3.2 mm | Specification | IEC 60068-2-6:1995-03 |
| Frequency | 10 - 150 - 10 Hz | Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) | Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h | Test directions | X-, Y- and Z-axis |
| Specification | IEC 60998-1:2002-12 | Temperature | 850 °C |
| Time of exposure | 5 s | Ambient temperature (operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C | Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C | Type of packaging | packed in cardboard |
