Product Model

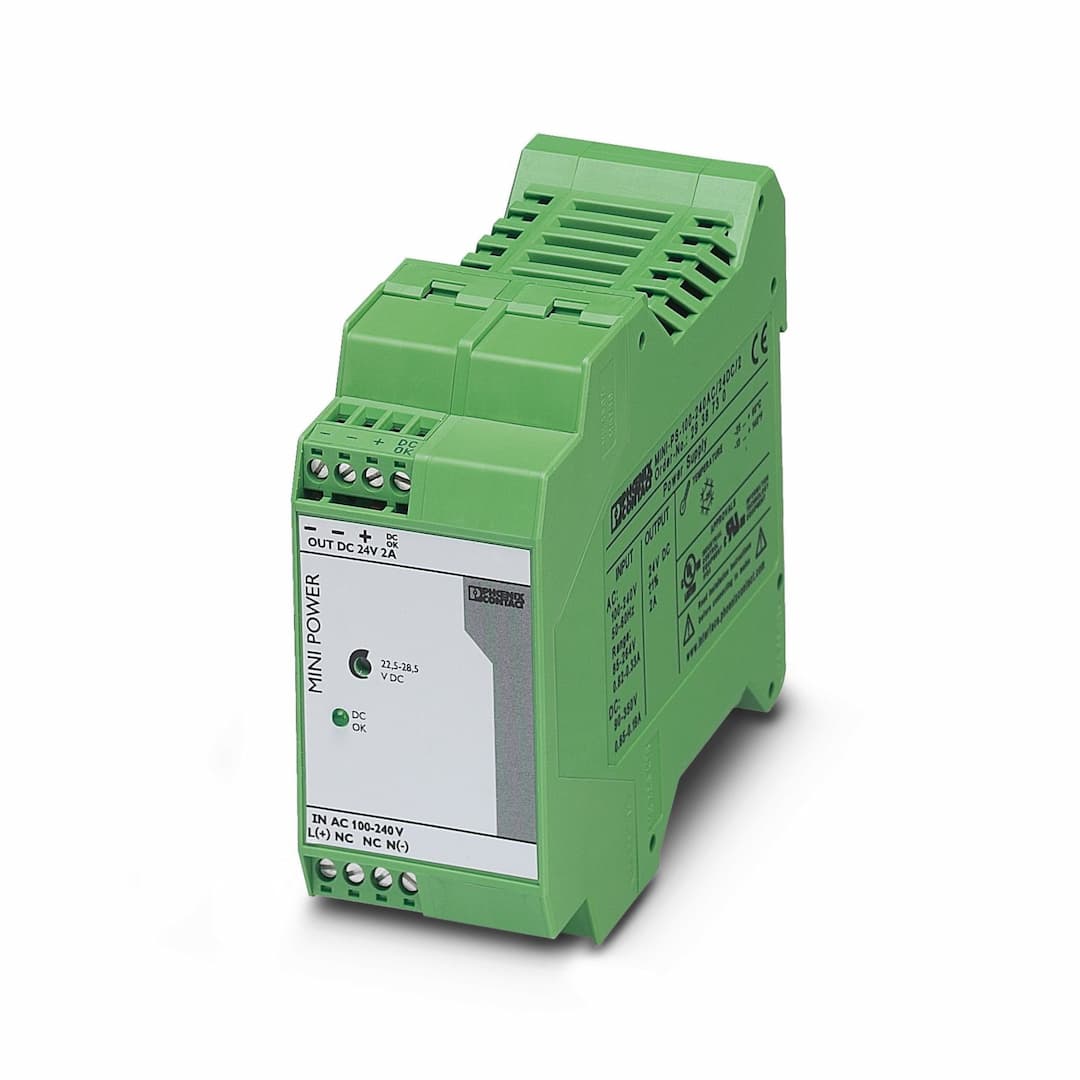

MINI-PS-100-240AC/24DC/2
Key Features
- 1The Mini-PS 100-240AC/24DC/2 features a compact design, making it ideal for space-constrained applications.
- 2This power supply offers adjustable output voltage, allowing for customization to meet specific requirements.
- 3With a typical efficiency of 88%, it ensures reliable and efficient power delivery.
- 4It operates within a wide input voltage range of 100VAC to 240VAC, providing flexibility in various environments.
- 5The device is internationally approved, ensuring safe and reliable operation worldwide.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
| Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
| Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
| Inrush current integral (I | 4.1 A | AC frequency range | 45 Hz ... 65 Hz |
| Mains buffering time | > 35 ms (120 V AC)
> 170 ms (230 V AC) | Current consumption | 0.7 A (120 V AC)
0.4 A (230 V AC)
0.65 A (90 V DC)
0.2 A (350 V DC) |
| Nominal power consumption | 84 VA | Typical response time | < 1 s |
| Input fuse | 2.5 A (slow-blow, internal) | Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
| Efficiency | > 88 % (for 230 V AC and nominal values) | Nominal output voltage | 24 V DC ±1 % |
| Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted) | Nominal output current (I | 2 A (-25 °C ... 60 °C) |
| POWER BOOST (I | 2.9 A (-25 °C ... 40 °C permanent) | Derating | 60 °C ... 70 °C (2.5 %/K) |
| Feedback voltage resistance | 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Starting delay with capacitive load | unrestricted | Max. capacitive load | unlimited |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 20 mV |
| Output power | 48 W | Peak switching voltages nominal load | < 100 mV |
| Maximum no-load power dissipation | 2 W | Power loss nominal load max. | 7 W |
| Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
| Output description | U | Maximum switching voltage | ≤ 24 V |
| Output voltage | + 24 V | Continuous load current | ≤ 20 mA |
| Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm | Screw thread | M3 |
| Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
| Screw thread | M3 | Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output |
| Operating voltage display | Green LED | Status display | "DC OK" LED green |
| Note on status display | U | Insulation voltage input/output | 4 kV (type test)
3 kV (routine test) |
| Product type | Power supply | Product family | MINI POWER |
| MTBF (IEC 61709, SN 29500) | > 507000 h (40 °C) | Article revision | 11 |
| Protection class | II (in closed control cabinet) | Degree of pollution | 2 |
| Width | 45 mm | Height | 99 mm |
| Depth | 107 mm | Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
| Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
| Temp code | T3C ≤ 60 °C | Rail applications | EN 50121-4 |
| Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) | Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) |
| Standard - Safe isolation | DIN VDE 0100-410 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
NEC Class 2 as per UL 1310 |
| SIL in accordance with IEC 61508 | 0 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise immunity | EN 61000-6-2 |
| Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
| Housing | Level 3 | Contact discharge | 8 kV |
| Discharge in air | 8 kV | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m | Frequency range | 1 GHz ... 2 GHz |
| Test field strength | 3 V/m | Frequency range | 2 GHz ... 2.7 GHz |
| Test field strength | 1 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | 4 kV (level 4 - asymmetrical: conductor to ground) |
| Output | 2 kV (level 3 - asymmetrical: conductor to ground) | Signal | 1 kV (level 2 - asymmetrical: conductor to ground) |
| Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
| Input | 4 kV (level 4 - asymmetrical: conductor to ground)
2 kV (level 4 - symmetrical: conductor to conductor) | Output | 0.5 kV (level 1 - asymmetrical: conductor to ground)
0.5 kV (level 1 - symmetrical: conductor to conductor) |
| Signal | 0.5 kV (level 1 - asymmetrical: conductor to ground) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | I/O/S | Level 3 - asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
| Voltage | 10 V | Standards/regulations | EN 61000-4-11 |
| Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
| Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
