Product Model

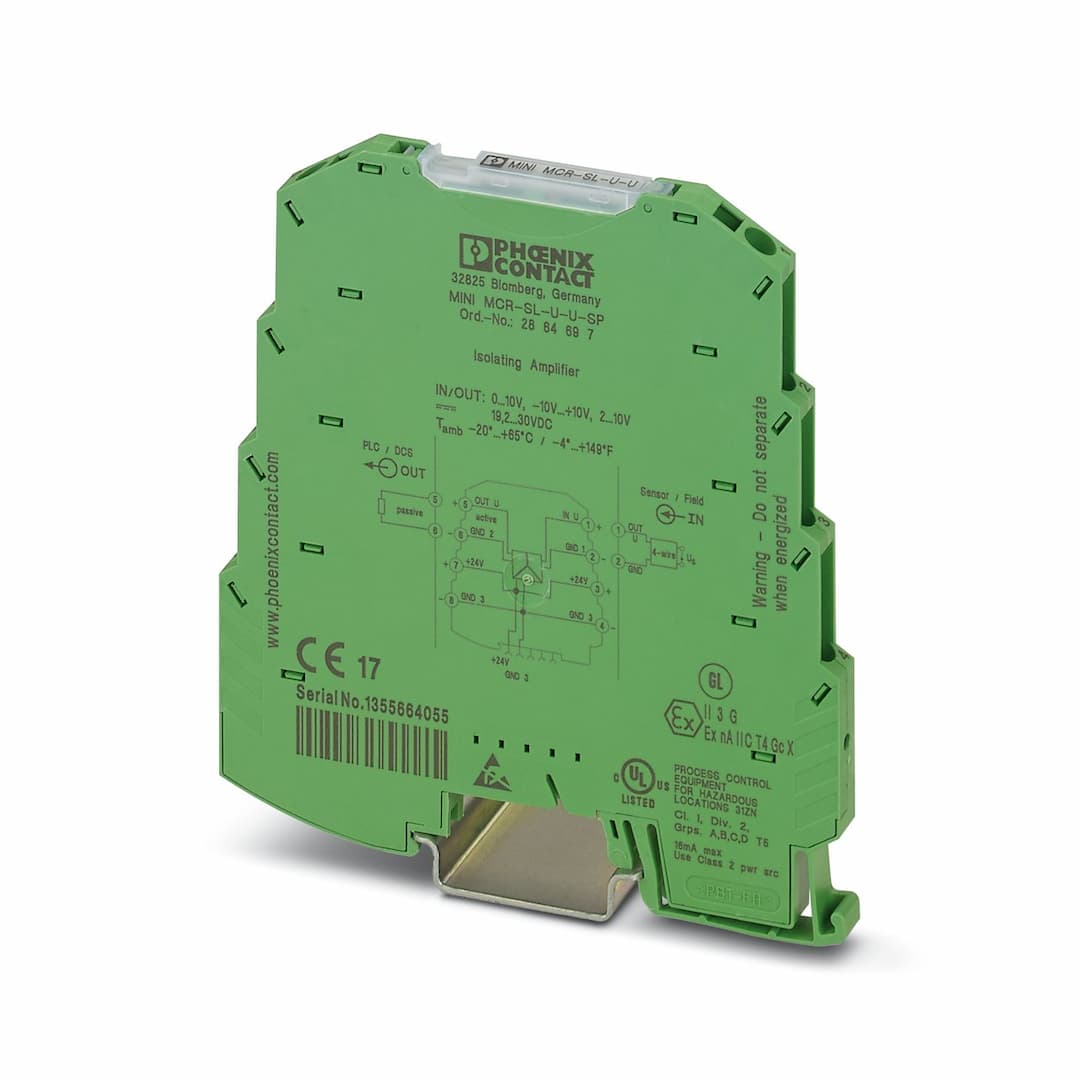

MINI MCR-SL-U-U-SP

Manufacturer

Phoenix Contact

Key Features

1DIN Rail Mounting: Easily integrate into industrial settings with DIN rail mounting.
2Robust Temperature Range: Operates from -20°C to +60°C, ensuring reliability in various environments.
3Versatile Output Signals: Provides both current and voltage output signals for diverse applications.
4Compact Design: Highly compact design for space-efficient installations.
5Integrated Optical Diagnostics: Includes integrated optical diagnostics for enhanced performance and diagnostics.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Signal conditioner	Product family	MINI Analog
No. of channels	1	Article revision	10
Overvoltage category	II	Pollution degree	2
Rated insulation voltage	50 V AC/DC	Electrical isolation	Basic insulation in accordance with EN 61010
Electrical isolation between input and output	yes	Limit frequency (3 dB)	approx. 100 Hz
Maximum power dissipation for nominal condition	224 mW	Test voltage, input/output/supply	1.5 kV AC (50 Hz, 60 s)
Protective circuit	Transient protection	Step response (10-90%)	approx. 3.2 ms
Maximum temperature coefficient	< 0.01 %/K	Temperature coefficient, typical	< 0.002 %/K
Maximum transmission error	≤ 0.1 % (of final value)	Nominal supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)	Max. current consumption	< 9 mA
Power consumption	< 200 mW (at 24 V DC)	Number of inputs	1
Configurable/programmable	no	Voltage input signal	0 V ... 10 V -10 V ... 10 V
Max. voltage input signal	30 V	Input resistance of voltage input	approx. 100 kΩ
Number of outputs	1	Configurable/programmable	no
Voltage output signal	0 V ... 10 V -10 V ... 10 V	Max. voltage output signal	12.5 V
Short-circuit current	approx. 2 mA	Load/output load voltage output	≥ 10 kΩ
Ripple	< 20 mV	Connection method	Spring-cage connection
Stripping length	8 mm	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 12
Width	6.2 mm	Height	93.1 mm
Depth	102.5 mm	Color	green (RAL 6021)
Housing material	PBT	Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2	Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2
Degree of protection	IP20	Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Certificate	CE-compliant
Identification	 II 3 G Ex nA IIC T4 Gc X	Identification	UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T5
Identification	GL EMC 2 D	Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2	Note	When being exposed to interference, there may be minimal deviations.
Noise emission	EN 61000-6-4	Comments	Safety measures must be taken to prevent electrostatic discharge.
Designation	Electromagnetic RF field	Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	15 %	Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4	Typical deviation from the measuring range final value	15 %
Designation	Conducted interferences	Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	15 %	Electrical isolation	Basic insulation in accordance with EN 61010
Mounting type	DIN rail mounting	Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position	any

Specifications may be subject to change without notice
