Product Model

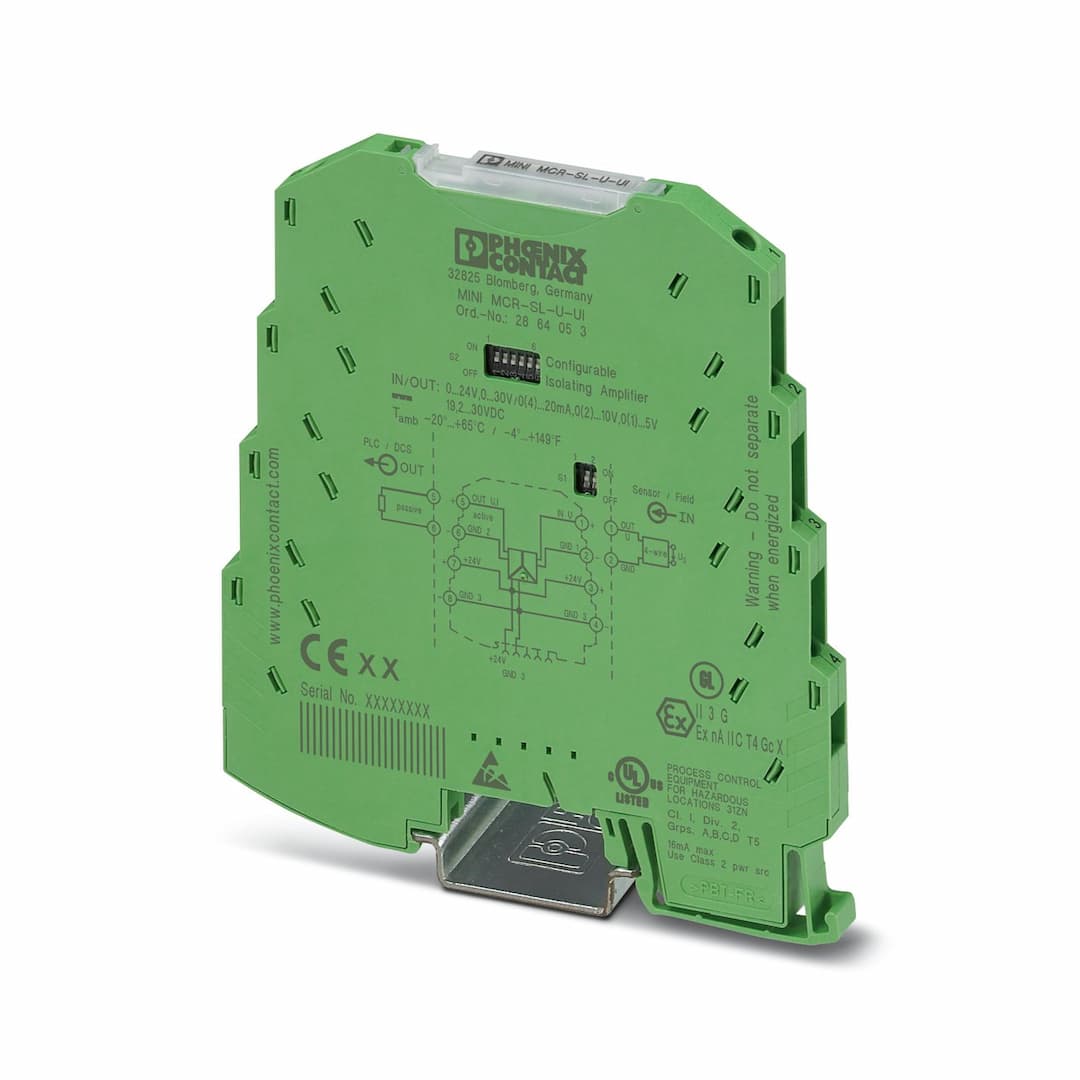

MINI MCR-SL-U-UI
Key Features
- 1Compact design for space-saving installations.
- 2Reliable operation with minimal maintenance required.
- 3Efficient energy consumption for cost-effective use.
- 4High-quality materials for durability and longevity.
- 5Easy integration with existing systems for seamless performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Signal conditioner | Product family | MINI Analog |
| No. of channels | 1 | Article revision | 07 |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 100 Hz |
| Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Protective circuit | Transient protection |
| Step response (10-90%) | 3.5 ms | Maximum temperature coefficient | < 0.01 %/K |
| Temperature coefficient, typical | < 0.002 %/K | Maximum transmission error | < 0.1 % (of final value)
< 0.4 % (Without adjustment) |
| Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Max. current consumption | < 19 mA (at 24 V DC incl. load) | Power consumption | < 450 mW |
| Number of inputs | 1 | Configurable/programmable | Yes, preconfigured |
| Voltage input signal | 0 V ... 24 V
0 V ... 30 V | Max. voltage input signal | 50 V DC |
| Input resistance of voltage input | approx. 125 kΩ (0 ... 24 V)
approx. 155 kΩ (0 V ... 30 V) | Number of outputs | 1 |
| Configurable/programmable | Yes, preconfigured | Voltage output signal | 0 V ... 10 V
0 V ... 5 V
1 V ... 5 V
2 V ... 10 V |
| Max. voltage output signal | ≤ 12.5 V | Non-load voltage | ≤ 12.5 V |
| Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current output signal | 28 mA |
| Short-circuit current | ≤ 22 mA | Load/output load voltage output | > 10 kΩ |
| Load/output load current output | < 500 Ω (at 20 mA) | Ripple | < 20 mV
< 20 mV |
| Connection method | Screw connection | Stripping length | 12 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 12 |
| Width | 6.2 mm | Height | 93.1 mm |
| Depth | 102.5 mm | Color | green (RAL 6021) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Identification | II 3 G Ex nA IIC T4 Gc X | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 |
| Identification | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 5 % |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 5 % | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 5 % |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715. | Mounting position | any |
Specifications may be subject to change without notice
