Product Model

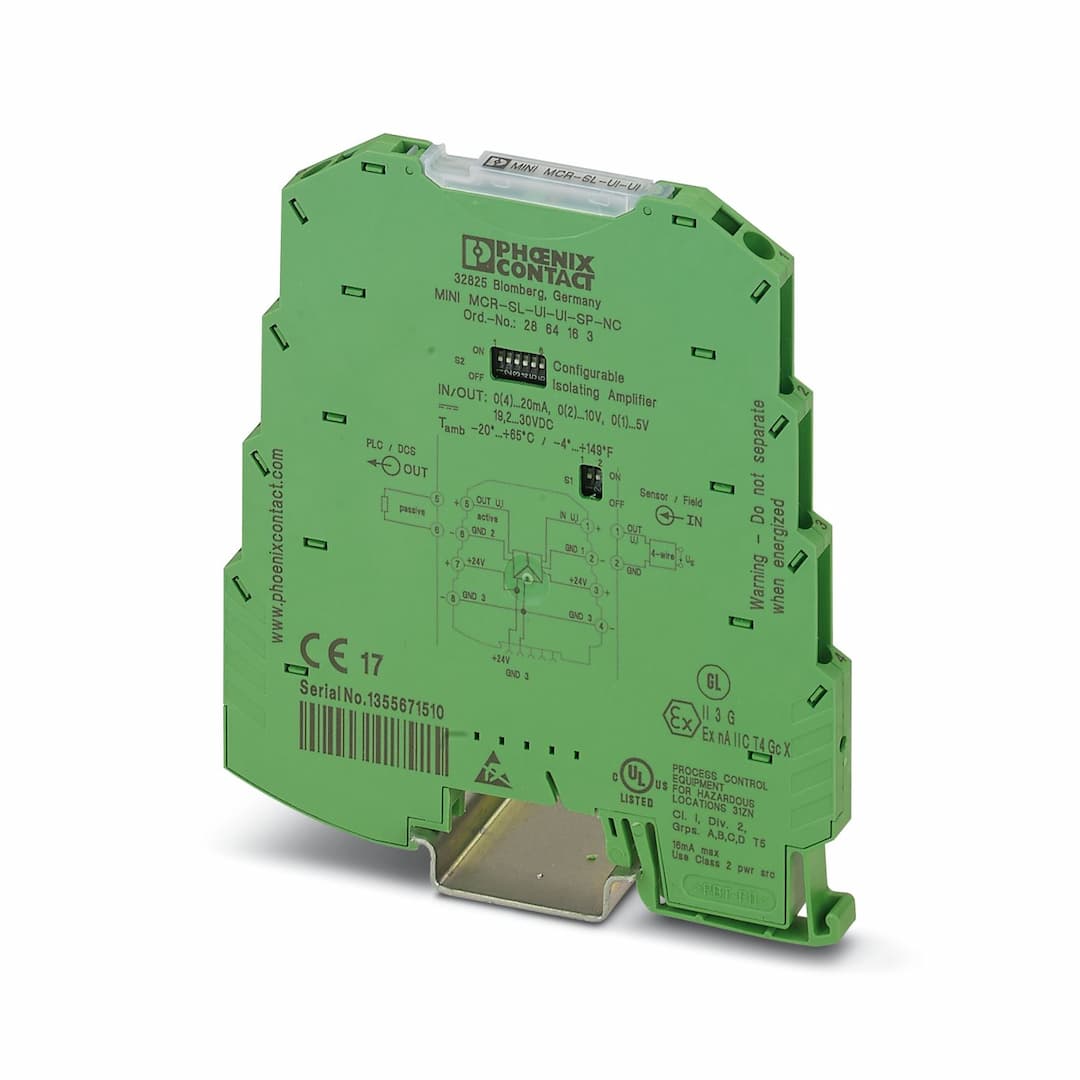

MINI MCR-SL-UI-UI-SP-NC
Key Features
- 1Configurable input/output for flexible signal processing.
- 2Electrical isolation ensures safe and reliable operation.
- 3Compatible with analog signals up to 30 V.
- 4Spring-cage connection for easy installation.
- 5Compact design with dimensions: 6.2 mm x 93.1 mm x 102.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Signal conditioner | Product family | MINI Analog |
| No. of channels | 1 | Article revision | 11 |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 100 Hz |
| Maximum power dissipation for nominal condition | 58 mW
184 mW | Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) |
| Protective circuit | Transient protection | Step response (10-90%) | 3.2 ms |
| Maximum temperature coefficient | < 0.01 %/K | Temperature coefficient, typical | < 0.002 %/K |
| Maximum transmission error | ≤ 0.1 % (of final value)
< 0.4 % (Without adjustment) | Nominal supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 19 mA (Current output, at 24 V DC incl. load)
< 9 mA (Voltage output, at 24 V DC incl. load) |
| Power consumption | < 450 mW (Current output)
< 200 mW (Voltage output) | Number of inputs | 1 |
| Configurable/programmable | Yes, unconfigured | Voltage input signal | 0 V ... 10 V
0 V ... 5 V
1 V ... 5 V
2 V ... 10 V |
| Max. voltage input signal | 30 V | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA |
| Max. current input signal | 50 mA | Input resistance of voltage input | approx. 100 kΩ |
| Input resistance current input | approx. 50 Ω | Number of outputs | 1 |
| Configurable/programmable | Yes, unconfigured | Voltage output signal | 0 V ... 10 V
0 V ... 5 V
1 V ... 5 V
2 V ... 10 V |
| Max. voltage output signal | approx. 12.5 V | Non-load voltage | approx. 12.5 V |
| Current output signal | 0 mA ... 20 mA (please indicate if different setting when ordering)
4 mA ... 20 mA | Max. current output signal | 28 mA |
| Short-circuit current | approx. 22 mA | Load/output load voltage output | ≥ 10 kΩ |
| Load/output load current output | < 500 Ω (at 20 mA) | Ripple | < 20 mV
< 20 mV |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Width | 6.2 mm |
| Height | 93.1 mm | Depth | 102.5 mm |
| Color | green (RAL 6021) | Housing material | PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
| Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 | Identification | GL EMC 2 D |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 5 % | Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 5 % |
| Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
| Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
| Typical deviation from the measuring range final value | 5 % | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Mounting position | any |
