Product Model

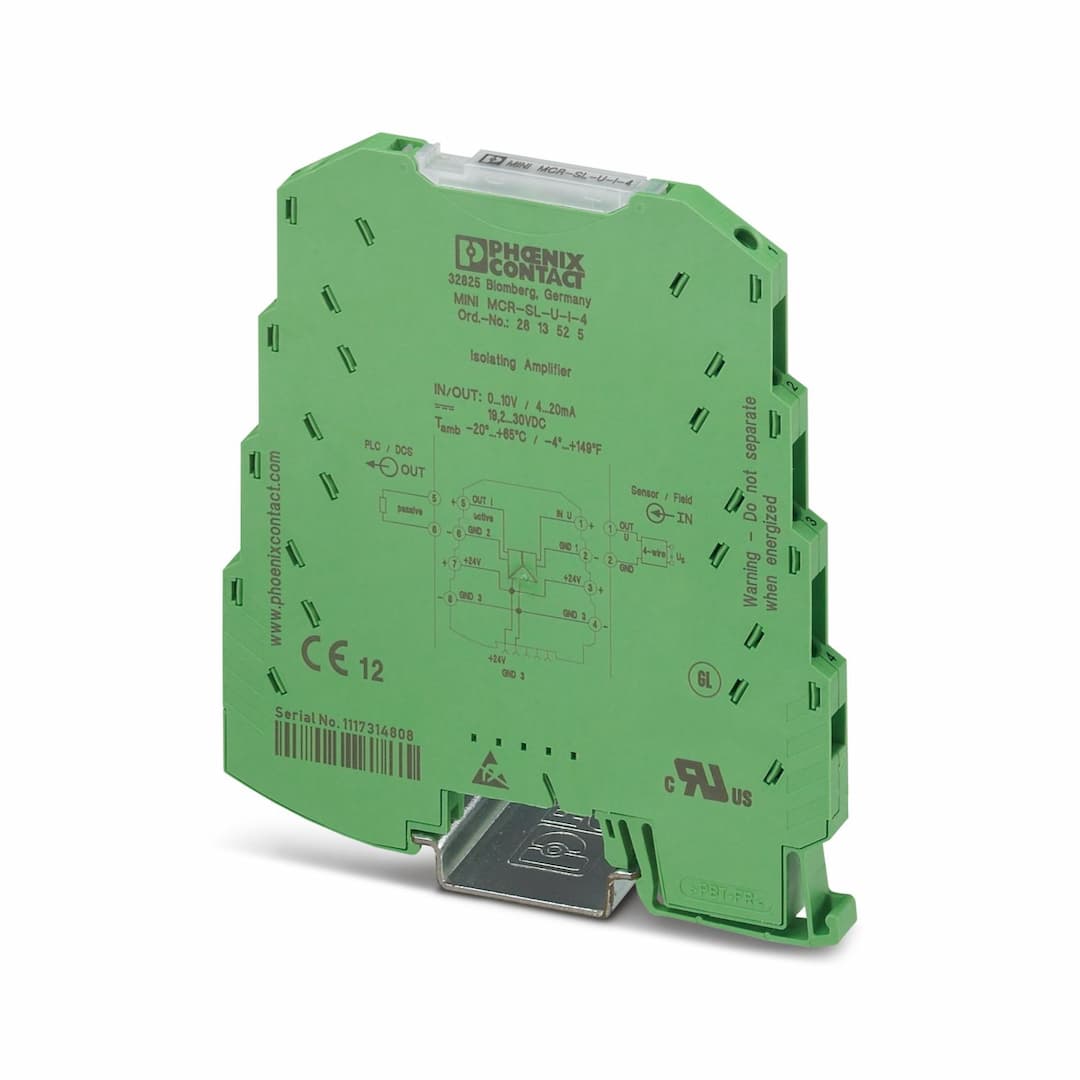

MINI MCR-SL-U-I-4
Key Features
- 1Compact Design: 6.2 mm wide, highly-compact isolating amplifier.
- 2Electrical Isolation: Basic insulation according to EN 61010, ensuring safe signal transmission.
- 3Versatile Signal Handling: Handles input signals from 0 V to 10 V and output signals from 4 mA to 20 mA.
- 4Low Power Consumption: < 20 mA current consumption, ideal for energy-efficient applications.
- 5Easy Installation: Power supply possible via the foot element (T-connector) or DIN rail connector.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
| Product family | MINI Analog | No. of channels | 1 |
| Article revision | 11 | Overvoltage category | II |
| Pollution degree | 2 | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 100 Hz |
| Maximum power dissipation for nominal condition | 88 mW | Step response (10-90%) | 3.5 ms |
| Maximum temperature coefficient | < 0.01 %/K | Temperature coefficient, typical | < 0.002 %/K |
| Maximum transmission error | ≤ 0.1 % (of final value) | Rated insulation voltage | 30 V AC
50 V DC |
| Test voltage | 1.5 kV AC (50 Hz, 60 s) | Nominal supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 20 mA |
| Power consumption | < 450 mW | Number of inputs | 1 |
| Configurable/programmable | no | Voltage input signal | 0 V ... 10 V |
| Max. voltage input signal | 30 V | Input resistance of voltage input | approx. 100 kΩ |
| Number of outputs | 1 | Configurable/programmable | no |
| Non-load voltage | approx. 12.5 V | Current output signal | 4 mA ... 20 mA |
| Max. current output signal | 28 mA | Load/output load current output | ≤ 500 Ω |
| Ripple | < 20 mV | Connection method | Screw connection |
| Stripping length | 12 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 12 | Width | 6.2 mm |
| Height | 93.1 mm | Depth | 101.2 mm |
| Color | green (RAL 6021) | Housing material | PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T4 | Certificate | DNV GL TAA000020N |
| Temperature | B | Humidity | B |
| Vibration | B | EMC | A |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 5 % |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 5 % | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 5 % |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
