Product Model

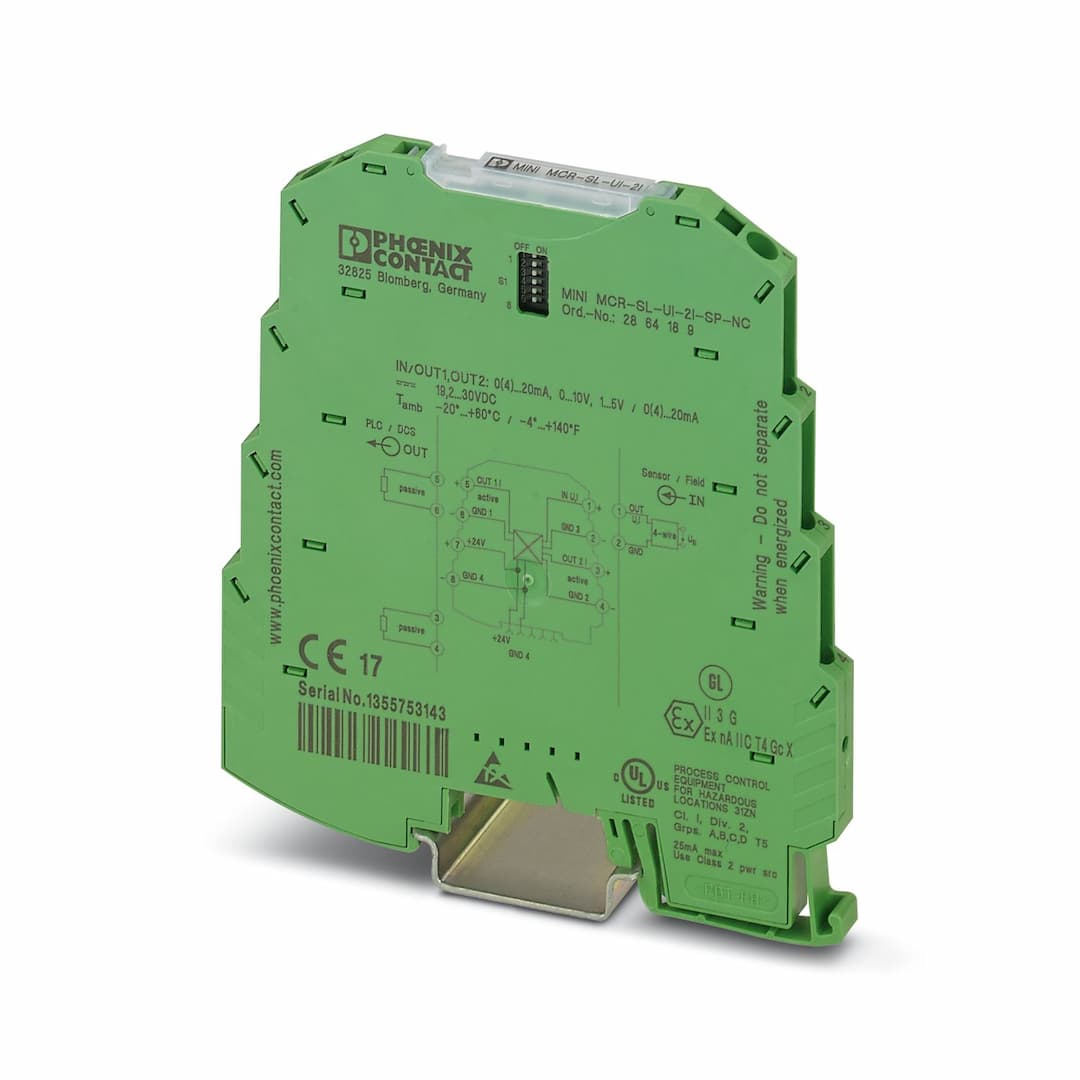

MINI MCR-SL-UI-2I-SP-NC
Key Features
- 1Configurable 4-way isolating amplifier for electrical isolation and signal duplication.
- 2Supports standard analog signals (0...20 mA, 4...20 mA, 0...10 V, 1...5 V).
- 3Two electrically isolated current outputs with independent signal settings.
- 4Power supply via connection terminal blocks or DIN rail bus connector (19.2 V DC to 30 V DC).
- 5Compact design with dimensions (6.2 mm x 93.1 mm x 101.2 mm) and IP20 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Signal duplicator | Product family | MINI Analog |
| No. of channels | 2 | Article revision | 10 |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 35 Hz |
| Maximum power dissipation for nominal condition | 500 mW | Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) |
| Protective circuit | Transient protection | Step response (0–99%) | 10 ms |
| Maximum temperature coefficient | < 0.01 %/K | Temperature coefficient, typical | < 0.004 %/K |
| Maximum transmission error | ≤ 0.2 % (of final value) | Transmission error, typical | < 0.1 % |
| Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Max. current consumption | < 30 mA (at 24 V DC incl. load) | Power consumption | < 600 mW |
| Number of inputs | 1 | Configurable/programmable | Yes, unconfigured |
| Voltage input signal | 0 V ... 10 V (please indicate if different setting when ordering)
1 V ... 5 V | Max. voltage input signal | 30 V |
| Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current input signal | 50 mA |
| Input resistance of voltage input | approx. 100 kΩ | Input resistance current input | approx. 50 Ω |
| Number of outputs | 2 | Configurable/programmable | Yes, unconfigured |
| Non-load voltage | 9 V | Current output signal | 2x 0 mA ... 20 mA
2x 4 mA ... 20 mA |
| Max. current output signal | approx. 22 mA | Load/output load current output | ≤ 250 Ω (at 20 mA) |
| Ripple | < 20 mV | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Width | 6.2 mm | Height | 93.1 mm |
| Depth | 102.5 mm | Color | green (RAL 6021) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
| Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 | Identification | GL EMC 2 D |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 5 % | Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 5 % |
| Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
| Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
| Typical deviation from the measuring range final value | 5 % | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Mounting position | any |
Specifications may be subject to change without notice
