Product Model

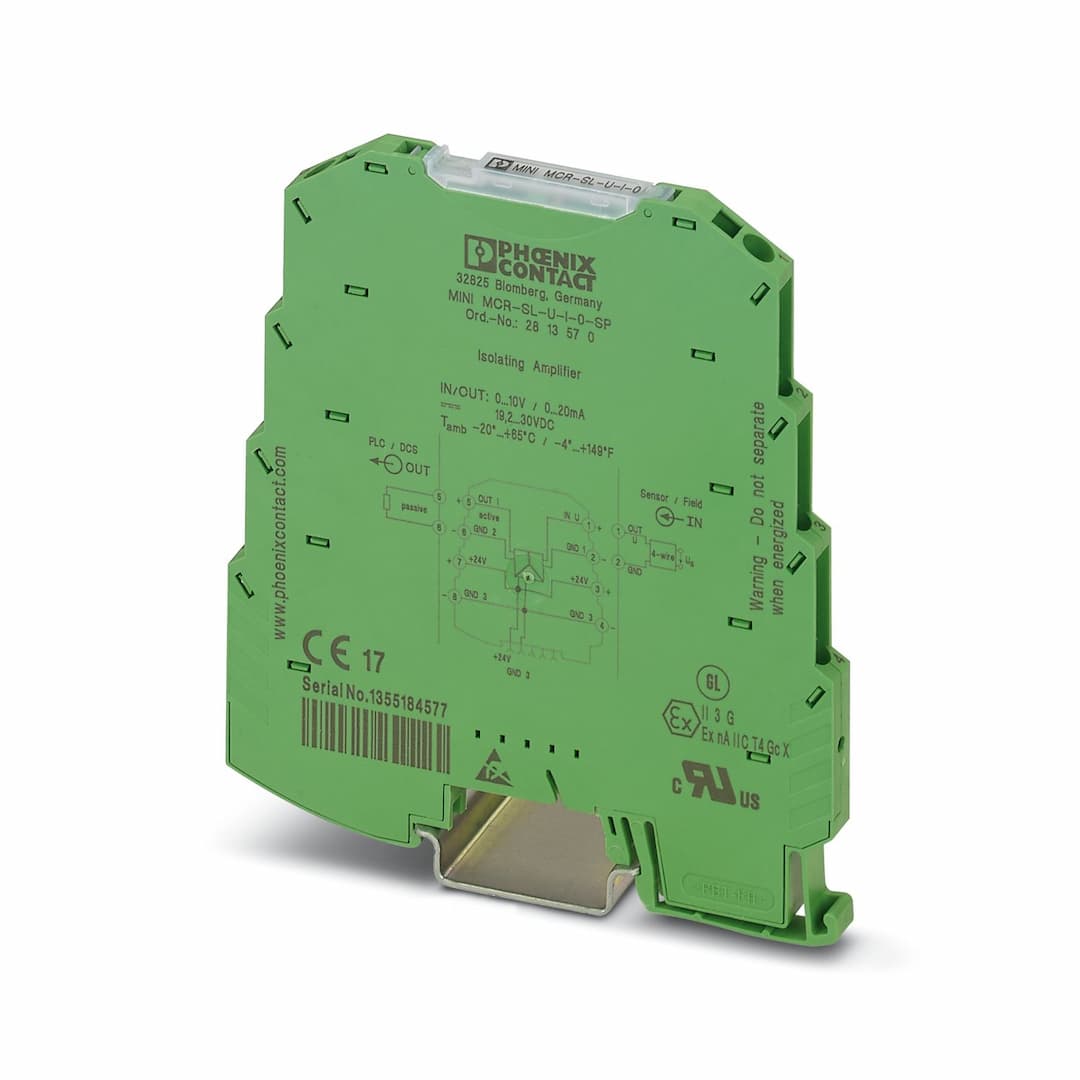

MINI MCR-SL-U-I-0-SP
Key Features
- 1Configurable 3-way isolating amplifier: Easily adjust input and output signal ranges via DIP switches.
- 2Electrical Isolation: Basic insulation according to EN 61010, ensuring safe and reliable operation.
- 3Versatile Signal Processing: Handles standard signals from 0...20 mA, 4...20 mA, 0...10 V, 2...10 V, 0...5 V, or 1...5 V.
- 4Compact Design: Only 6.2 mm wide, ideal for space-constrained applications.
- 5Flexible Power Supply: Powered via terminal blocks or DIN rail connector, offering flexibility in installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Signal conditioner | Product family | MINI Analog |
| No. of channels | 1 | Article revision | 08 |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 30 V AC
50 V DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 100 Hz |
| Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Step response (10-90%) | 3.5 ms |
| Maximum temperature coefficient | < 0.01 %/K | Temperature coefficient, typical | < 0.002 %/K |
| Maximum transmission error | ≤ 0.1 % (of final value) | Nominal supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 28 mA |
| Power consumption | < 600 mW | Number of inputs | 1 |
| Configurable/programmable | no | Voltage input signal | 0 V ... 10 V |
| Max. voltage input signal | 30 V | Input resistance of voltage input | approx. 100 kΩ |
| Number of outputs | 1 | Configurable/programmable | no |
| Non-load voltage | approx. 12.5 V | Current output signal | 0 mA ... 20 mA |
| Max. current output signal | 28 mA | Load/output load current output | ≤ 500 Ω |
| Ripple | < 20 mV | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Width | 6.2 mm | Height | 93.1 mm |
| Depth | 102.5 mm | Color | green (RAL 6021) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
| Identification | II 3 G Ex nA IIC T4 Gc X | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T4 |
| Identification | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 5 % | Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 5 % |
| Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
| Typical deviation from the measuring range final value | 5 % | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Mounting position | any |
Specifications may be subject to change without notice
