Product Model

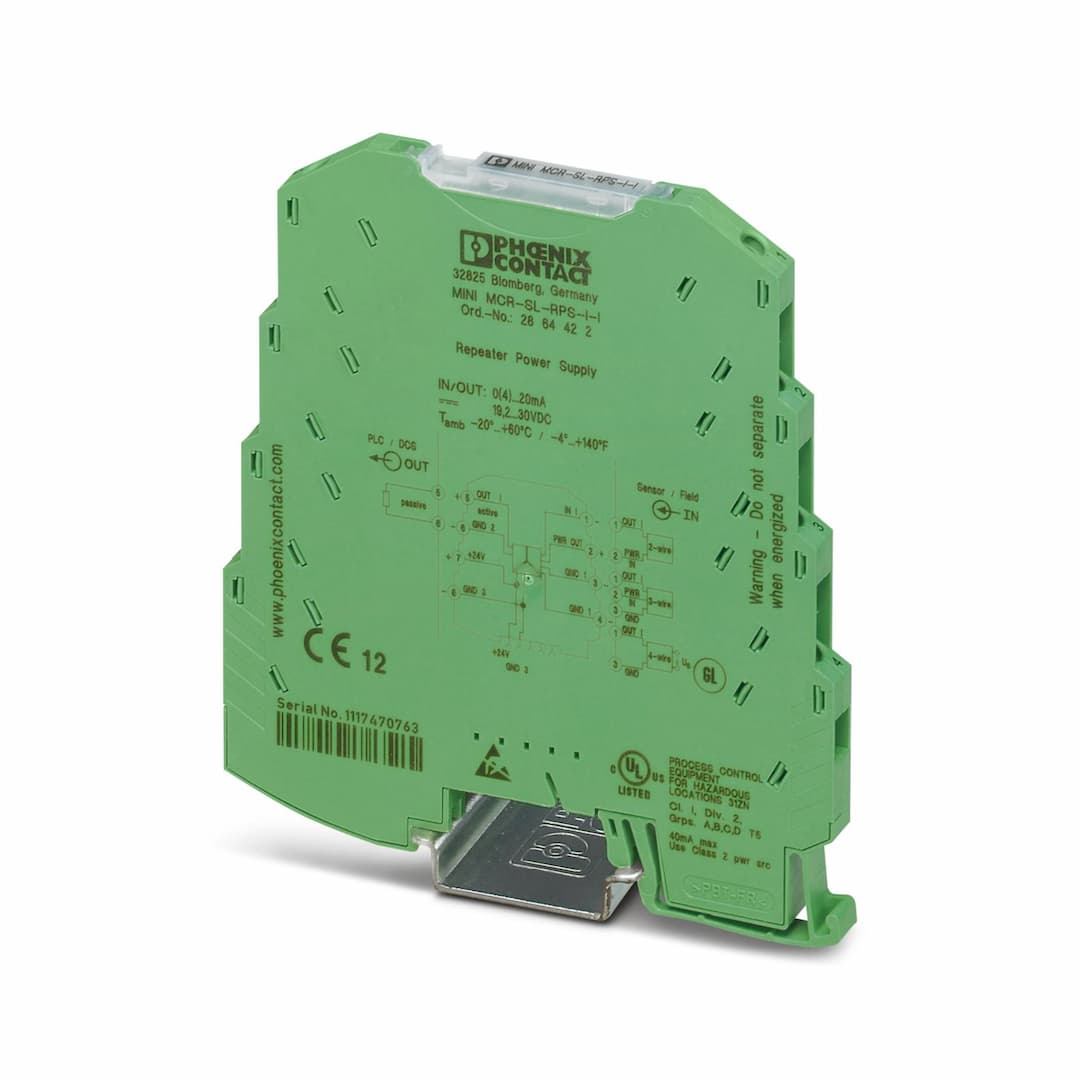

MINI MCR-SL-RPS-I-I
Key Features
- 1The MINI MCR-SL-RPS-I-I provides 3-way electrical isolation to ensure signal integrity.
- 2Measuring 6.2 mm wide, 93.1 mm high, and 102.5 mm deep, it is highly compact for easy integration.
- 3Designed for amplification and filtering of standard analog signals with minimal transmission error.
- 4Operates from -20 °C to 60 °C, making it suitable for various environmental conditions.
- 5Equipped with transient protection and basic insulation according to EN 61010 for enhanced reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Repeater power supply |
| Product family | MINI Analog | No. of channels | 1 |
| Article revision | 16 | Overvoltage category | II |
| Pollution degree | 2 | Electrical isolation | 3-way isolation |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 100 Hz |
| Maximum power dissipation for nominal condition | 508 mW (24 V DC)
208 mW (24 V DC) | Protective circuit | Transient protection |
| Signal transmission behavior | In = Out | Step response (10-90%) | 3.5 ms |
| Maximum temperature coefficient | < 0.01 %/K | Temperature coefficient, typical | < 0.002 %/K |
| Maximum transmission error | ≤ 0.2 % (of final value) | Transmission error, typical | ≤ 0.1 % (of final value) |
| Rated insulation voltage | 50 V AC/DC | Test voltage | 1.5 kV AC (50 Hz, 60 s) |
| Insulation | Basic insulation in accordance with IEC/EN 61010 | Nominal supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Power consumption | < 900 mW (at 24 V DC and in repeater power supply operation)
< 600 mW (at 24 V DC and in isolator operation) |
| Description of the input | Sensor circuit | Number of inputs | 1 |
| Current input signal | 0 mA ... 20 mA (isolator operation)
4 mA ... 20 mA (repeater power supply and isolator operation) | Max. current input signal | 28 mA |
| Input resistance current input | approx. 50 Ω | Transmitter supply voltage | U |
| Transmitter supply voltage range | 14.7 V DC ... 25.5 V DC | Number of outputs | 1 |
| Non-load voltage | approx. 12.5 V | Current output signal | 0 mA ... 20 mA (isolator operation)
4 mA ... 20 mA (repeater power supply and isolator operation) |
| Max. current output signal | 28 mA | Load/output load current output | ≤ 500 Ω (I = 20 mA) |
| Ripple | < 20 mV | Connection method | Screw connection |
| Stripping length | 12 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 12 | Width | 6.2 mm |
| Height | 93.1 mm | Depth | 101.2 mm |
| Color | green (RAL 6021) | Housing material | PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 | Certificate | DNV GL TAA000020N |
| Temperature | B | Humidity | B |
| Vibration | B | EMC | A |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 10 % |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 10 % | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 10 % |
| Electrical isolation | 3-way isolation | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715. | Mounting position | any |
Specifications may be subject to change without notice
