Product Model

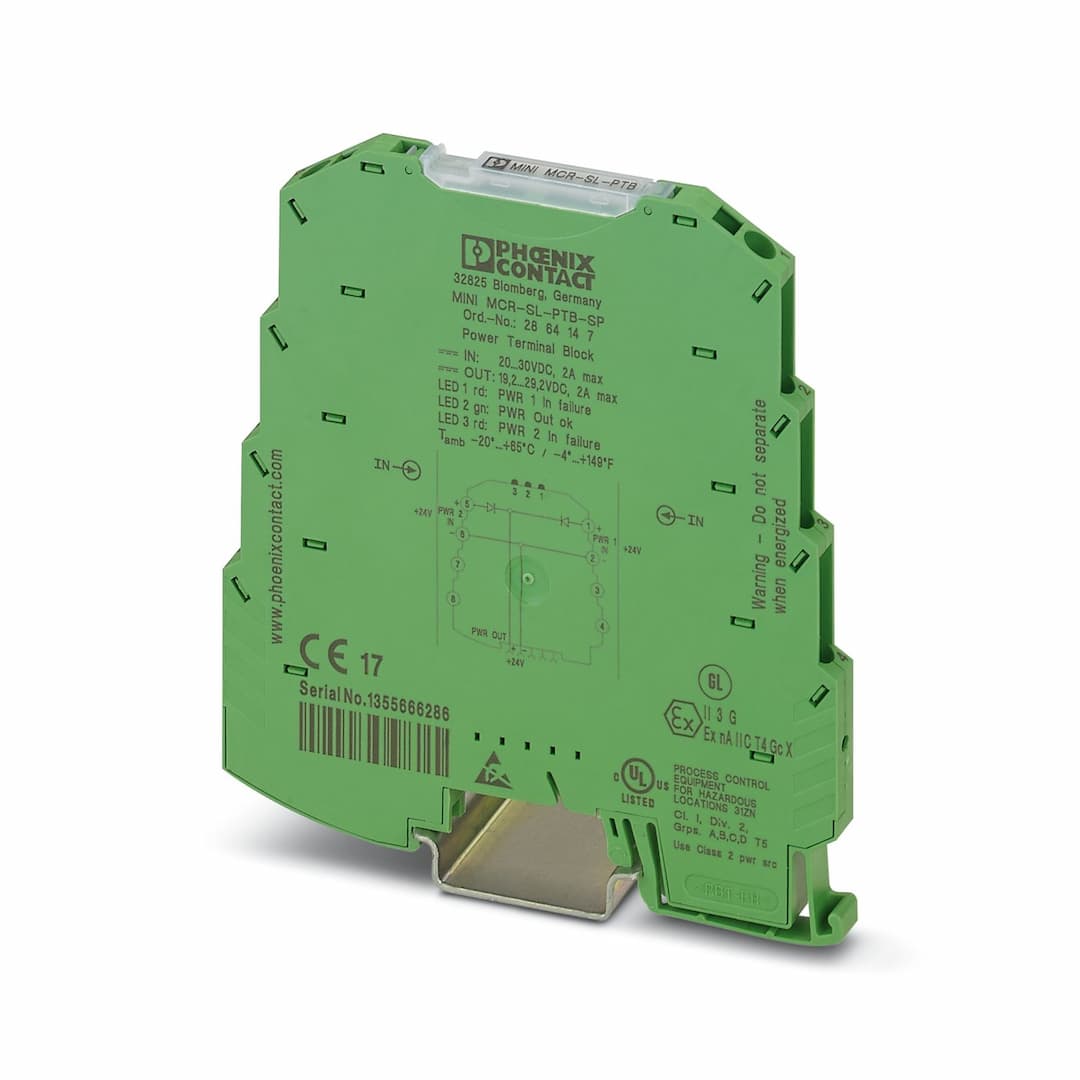

MINI MCR-SL-PTB-SP
Key Features
- 1Provides two separate voltage inputs for a redundant supply of 24 V DC.
- 2Features green and red LEDs for status and error indication, ensuring correct connection and supply.
- 3Supports a maximum current of 2 A, suitable for various industrial applications.
- 4Measures 6.2 mm x 93.1 mm x 102.5 mm, ideal for space-constrained environments.
- 5Made from polybutylenterephthalate (PBT) with IP20 protection, ensuring reliability in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Power module | Product family | MINI Analog |
| Article revision | 07 | Input voltage | 24 V DC |
| Input voltage range DC | 20 V DC ... 30 V DC | Max. input current | 2 A |
| Reverse polarity protection | yes | Output voltage range | Input voltage - 0.8 V |
| Maximum power dissipation for nominal condition | < 5 mW | Connection method | Spring-cage connection |
| Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
| Stripping length | 8 mm | Status display | Green LED (supply) |
| Error indication | Red LED | Width | 6.2 mm |
| Height | 93.1 mm | Depth | 102.5 mm |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X | UL, USA / Canada | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 |
| GL | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Evaluation criterion | A |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Evaluation criterion | B | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Evaluation criterion | A |
| Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Mounting position | any |
Specifications may be subject to change without notice
