Product Model

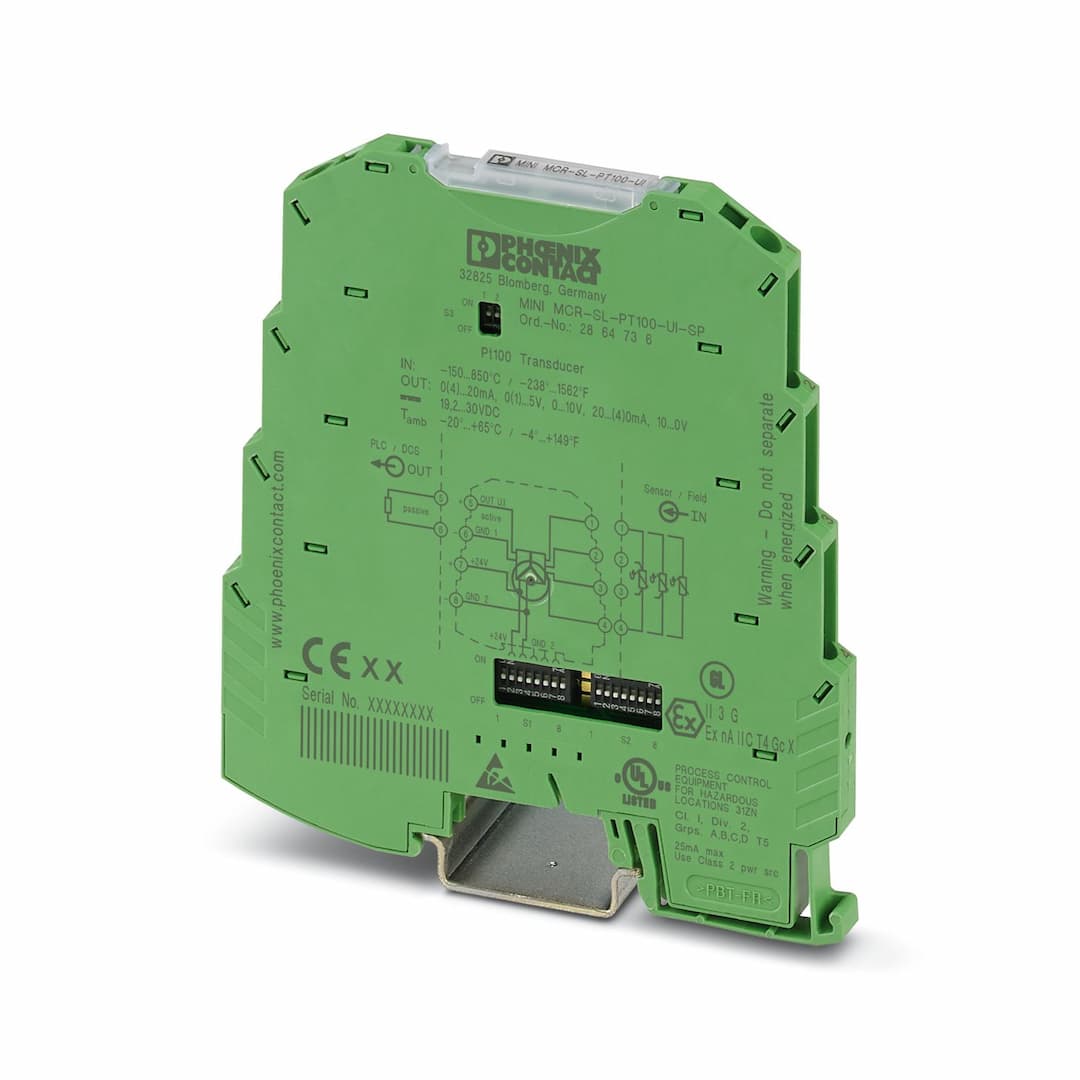

MINI MCR-SL-PT100-UI-SP
Key Features
- 1Accurate Temperature Measurement: Precise PT100 sensor for reliable temperature readings.
- 2Compact Design: Miniature size for easy integration into various applications.
- 3Wide Output Range: 4-20 mA current output signal for versatile connectivity.
- 4Durable Construction: Robust design with a 2-year warranty for long-term reliability.
- 5Easy Installation: Simple setup with minimal technical expertise required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Temperature transmitter | Product family | MINI Analog |
| No. of channels | 1 | Article revision | 13 |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Maximum power dissipation for nominal condition | 235.5 mW | Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) |
| Protective circuit | Transient protection | Step response (0–99%) | < 160 ms |
| Maximum temperature coefficient | < 0.02 %/K | Transmission error in the set measuring range | ((100 K / set measurement range [K]) + 0.1)% |
| Transmission error in the full measuring range | ≤ 0,2 % | Nominal supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 21 mA (at 24 V DC) |
| Power consumption | < 500 mW | Number of inputs | 1 |
| Input signal | Temperature | Configurable/programmable | Yes |
| Sensor types (RTD) that can be used | Pt 100 (IEC 60751/EN 60751) | Temperature measuring range | min. 50 K |
| Sensor type: | -150 °C ... 850 °C (configurable) | Sensor input current | 1 mA (constant) |
| Max. permissible overall conductor resistance | 10 Ω (Per cable) | Connection technology | 2-, 3-, 4-conductor |
| Number of outputs | 1 | Configurable/programmable | Yes, preconfigured |
| Voltage output signal | 0 V ... 10 V
10 V ... 0 V
0 V ... 5 V
1 V ... 5 V | Max. voltage output signal | approx. 12.5 V |
| Non-load voltage | approx. 12.5 V | Current output signal | 4 mA ... 20 mA
20 mA ... 0 mA
20 mA ... 4 mA
0 mA ... 20 mA (please indicate if different setting when ordering) |
| Max. current output signal | 23 mA | Short-circuit current | approx. 10 mA |
| Load/output load voltage output | ≥ 10 kΩ | Load/output load current output | < 500 Ω (at 20 mA) |
| Ripple | < 20 mV
< 20 mV | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Width | 6.2 mm | Height | 93.1 mm |
| Depth | 102.5 mm | Color | green (RAL 6021) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Identification | II 3 G Ex nA IIC T4 Gc X | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 |
| Identification | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 10 % |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 10 % | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 10 % |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
