Product Model

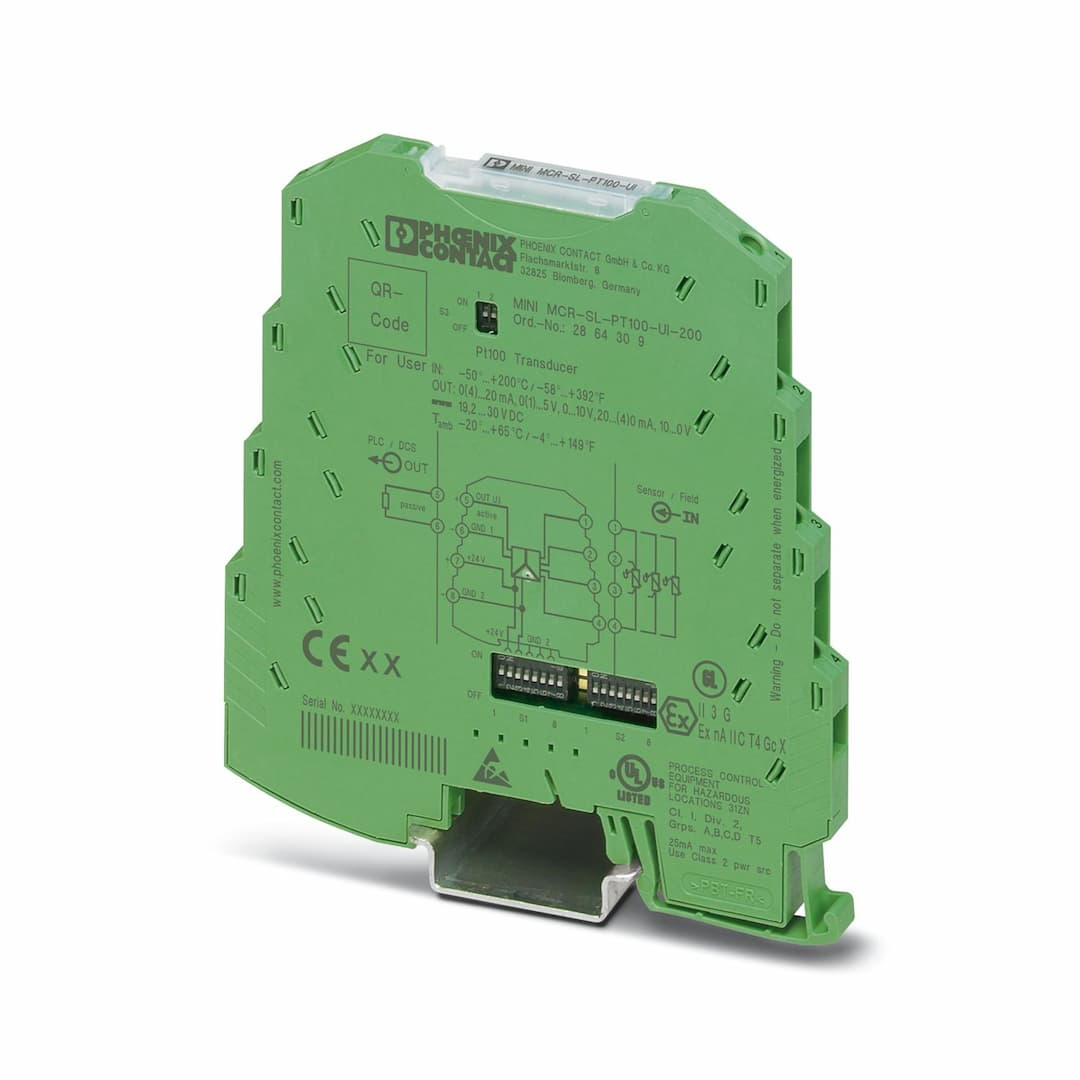

MINI MCR-SL-PT100-UI-200
Key Features
- 1Easily adjust connection method, temperature range, and output signal using accessible DIP switches.
- 2Measure temperatures from -50°C to +200°C for increased accuracy in various applications.
- 3Ensure electrical isolation, conversion, amplification, and filtering of input and output signals.
- 4Generate standard signals such as 0...20 mA, 4...20 mA, 0...10 V, and more.
- 5Ideal for space-constrained environments with a width of just 6.2 mm and a height of 93.1 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Temperature transmitter | Product family | MINI Analog |
| Article revision | 10 | Overvoltage category | II |
| Pollution degree | 2 | Rated insulation voltage | 50 V AC/DC |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Maximum power dissipation for nominal condition | 235.5 mW |
| Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Protective circuit | Transient protection |
| Step response (0–99%) | < 200 ms | Maximum temperature coefficient | < 0.02 %/K |
| Transmission error in the set measuring range | ((50 K / Δ Temp)+ 0.05)% | Transmission error in the full measuring range | ≤ 0.25 % |
| Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Max. current consumption | < 21 mA (at 24 V DC) | Power consumption | < 500 mW |
| Number of inputs | 1 | Input signal | Temperature |
| Sensor types (RTD) that can be used | Pt 100 (IEC 60751/EN 60751) | Temperature measuring range | -50 °C ... 200 °C |
| Temperature measuring range | min. 50 K | Sensor type: | -50 °C ... 200 °C (configurable) |
| Sensor input current | 1 mA (constant) | Max. permissible overall conductor resistance | 10 Ω (Per cable) |
| Connection technology | 2-, 3-, 4-conductor | Number of outputs | 1 |
| Configurable/programmable | Yes | Voltage output signal | 0 V ... 10 V
10 V ... 0 V
0 V ... 5 V
1 V ... 5 V |
| Max. voltage output signal | approx. 12.5 V | Non-load voltage | approx. 12.5 V |
| Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA
20 mA ... 0 mA
20 mA ... 4 mA | Max. current output signal | 23 mA |
| Short-circuit current | approx. 10 mA | Load/output load voltage output | > 10 kΩ |
| Load/output load current output | < 500 Ω (at 20 mA) | Ripple | < 20 mV
< 20 mV |
| Connection method | Screw connection | Stripping length | 12 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 12 |
| Width | 6.2 mm | Height | 93.1 mm |
| Depth | 102.5 mm | Color | green (RAL 6021) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
| Identification | II 3 G Ex nA IIC T4 Gc X | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 |
| Identification | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 10 % |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 10 % | Standards/regulations | EN 61000-4-5 |
| Comments | Criterion B | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 10 % |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
| Mounting position | any |
