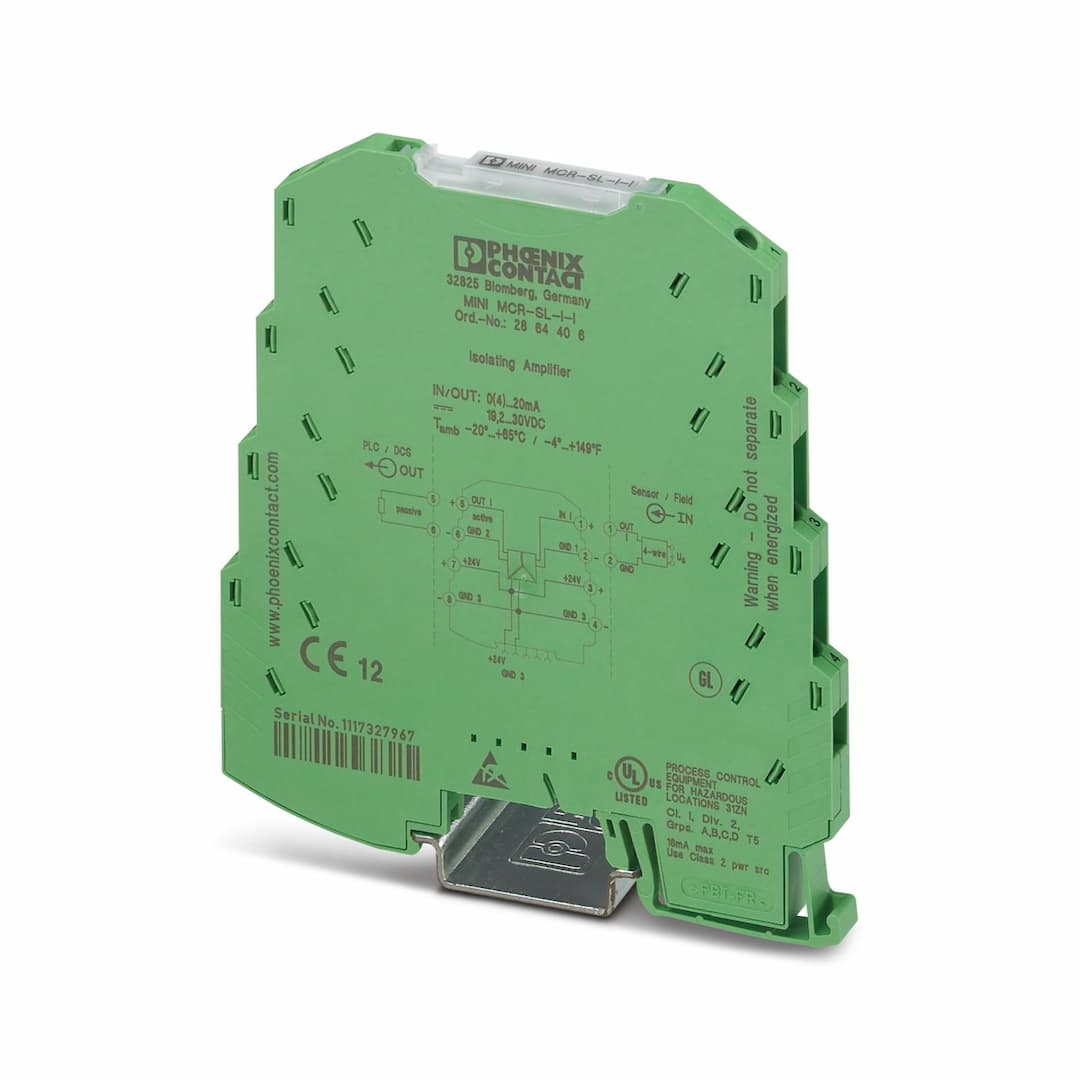

MINI MCR-SL-I-I

Manufacturer

Phoenix Contact

Key Features

1Compact design with a width of 6.2 mm.
2Low power consumption for energy-efficient operation.
33-way isolation for secure electrical isolation of analog signals.
4Input and output signals available in 0...20 mA or 4...20 mA.
5Highly-compact isolating amplifier suitable for industrial applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
EMC note	EMC: class A product, see manufacturer's declaration in the download area	Product type	Signal conditioner
Product family	MINI Analog	No. of channels	1
Article revision	13	Overvoltage category	II
Pollution degree	2	Rated insulation voltage	50 V AC/DC
Electrical isolation	Basic insulation in accordance with EN 61010	Electrical isolation between input and output	yes
Limit frequency (3 dB)	approx. 100 Hz	Maximum power dissipation for nominal condition	250 mW
Test voltage (Input/output/supply)	1.5 kV AC (50 Hz, 60 s)	Protective circuit	Transient protection
Signal transmission behavior	In = Out	Step response (10-90%)	 3.2 ms
Maximum temperature coefficient	< 0.01 %/K	Temperature coefficient, typical	< 0.002 %/K
Maximum transmission error	≤ 0.1 % (of final value)	Nominal supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)	Max. current consumption	< 20 mA
Power consumption	< 450 mW	Number of inputs	1
Configurable/programmable	no	Current input signal	0 mA ... 20 mA 4 mA ... 20 mA
Max. current input signal	50 mA	Input resistance current input	approx. 50 Ω
Number of outputs	1	Configurable/programmable	no
Non-load voltage	approx. 12.5 V	Current output signal	0 mA ... 20 mA 4 mA ... 20 mA
Max. current output signal	28 mA	Load/output load current output	< 500 Ω (at 20 mA)
Ripple	< 20 mV	Connection method	Screw connection
Stripping length	12 mm	Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²	Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	26 ... 12	Width	6.2 mm
Height	93.1 mm	Depth	101.2 mm
Color	green (RAL 6021)	Housing material	PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2	Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2	Degree of protection	IP20
Ambient temperature (operation)	-20 °C ... 65 °C	Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m	Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Certificate	CE-compliant	Certificate	UKCA-compliant
Identification	UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T5	Certificate	DNV GL TAA000020N
Temperature	B	Humidity	B
Vibration	B	EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board	Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2	Note	When being exposed to interference, there may be minimal deviations.
Noise emission	EN 61000-6-4	Comments	Safety measures must be taken to prevent electrostatic discharge.
Designation	Electromagnetic RF field	Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	10 %	Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4	Typical deviation from the measuring range final value	10 %
Designation	Conducted interferences	Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	10 %	Electrical isolation	Basic insulation in accordance with EN 61010
Mounting type	DIN rail mounting	Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position	any

Specifications may be subject to change without notice
