Product Model

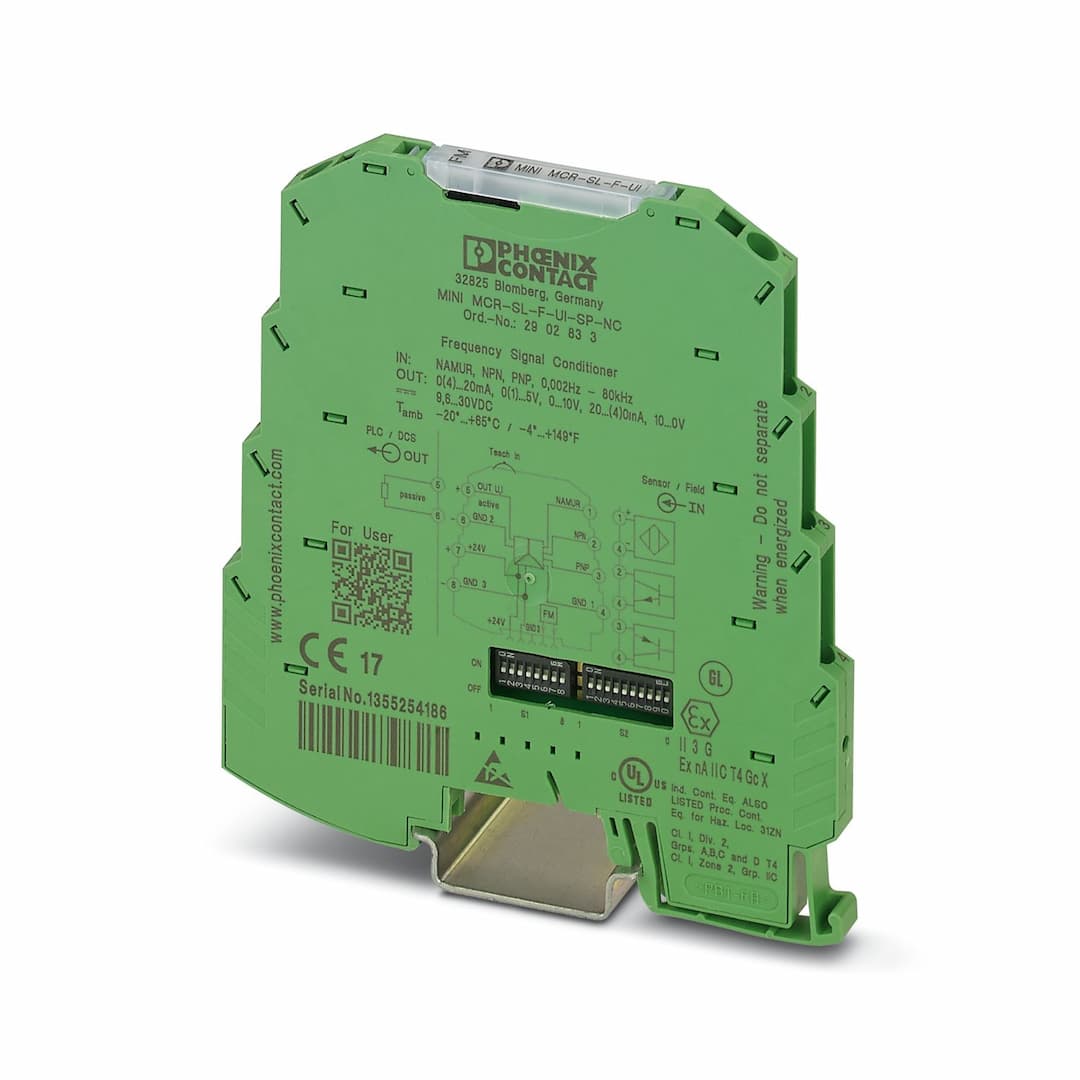

MINI MCR-SL-F-UI-SP-NC
Key Features
- 1Configurable via DIP Switches and Teach-in Wheel: Easily adjust settings to match your application needs.
- 2Suitable for NAMUR Proximity Sensors: Compatible with IEC 60947-5-6 and EN 50227 standards.
- 33-Way Isolated Frequency Transducer: Provides linear current or voltage output for reliable signal conversion.
- 4Fault Monitoring Capabilities: Detects and reacts to all errors for enhanced system reliability.
- 5Compact Design with IP20 Protection: Measures 6.2 mm x 93.1 mm x 102.5 mm, ensuring space efficiency in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Frequency value transformer | Product family | MINI Analog |
| No. of channels | 1 | Operating elements | Press/slide button |
| Article revision | 07 | Overvoltage category | II |
| Pollution degree | 2 | Rated insulation voltage | 50 V AC/DC |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Electrical isolation between input and output | yes |
| Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Protective circuit | Transient protection |
| Step response (0–99%) | < 35 ms (At f > 500 Hz) | Maximum temperature coefficient | 0.01 %/K |
| Transmission error in the set measuring range | 0.1 % | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Typical current consumption | < 28 mA (at I | Power consumption | < 800 mW (at I |
| Configurable/programmable | Yes | Available input sources | NPN/PNP transistor outputs
NAMUR initiators
Floating relay contact (dry contact) |
| Max. voltage input signal | 30 V (incl. DC voltage) | Frequency measuring range | 0.002 Hz ... 20 kHz (DIP switch)
0.002 Hz ... 80 kHz (Teach-in wheel) |
| Number of inputs | 1 | Input signal | Frequency |
| Number of outputs | 1 | Configurable/programmable | Yes |
| Voltage output signal | 0 V ... 5 V
1 V ... 5 V
0 V ... 10 V
10 V ... 0 V | Max. voltage output signal | 12.3 V |
| Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA
20 mA ... 0 mA
20 mA ... 4 mA | Max. current output signal | 24.6 mA |
| Load/output load voltage output | ≥ 10 kΩ | Load/output load current output | 500 Ω (20 mA) |
| Ripple | < 20 mV
< 20 mV | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Status display | LED (red) | Width | 6.2 mm |
| Height | 93.1 mm | Depth | 102.5 mm |
| Color | green (RAL 6021) | Housing material | PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
| Identification | II 3 G Ex nA IIC T4 Gc X | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC |
| Identification | D, EMC2 | Certificate | DNV GL 14085-15HH |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 0.1 % | Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 2 % |
| Standards/regulations | EN 61000-4-5 | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 0.3 % |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
