Product Model

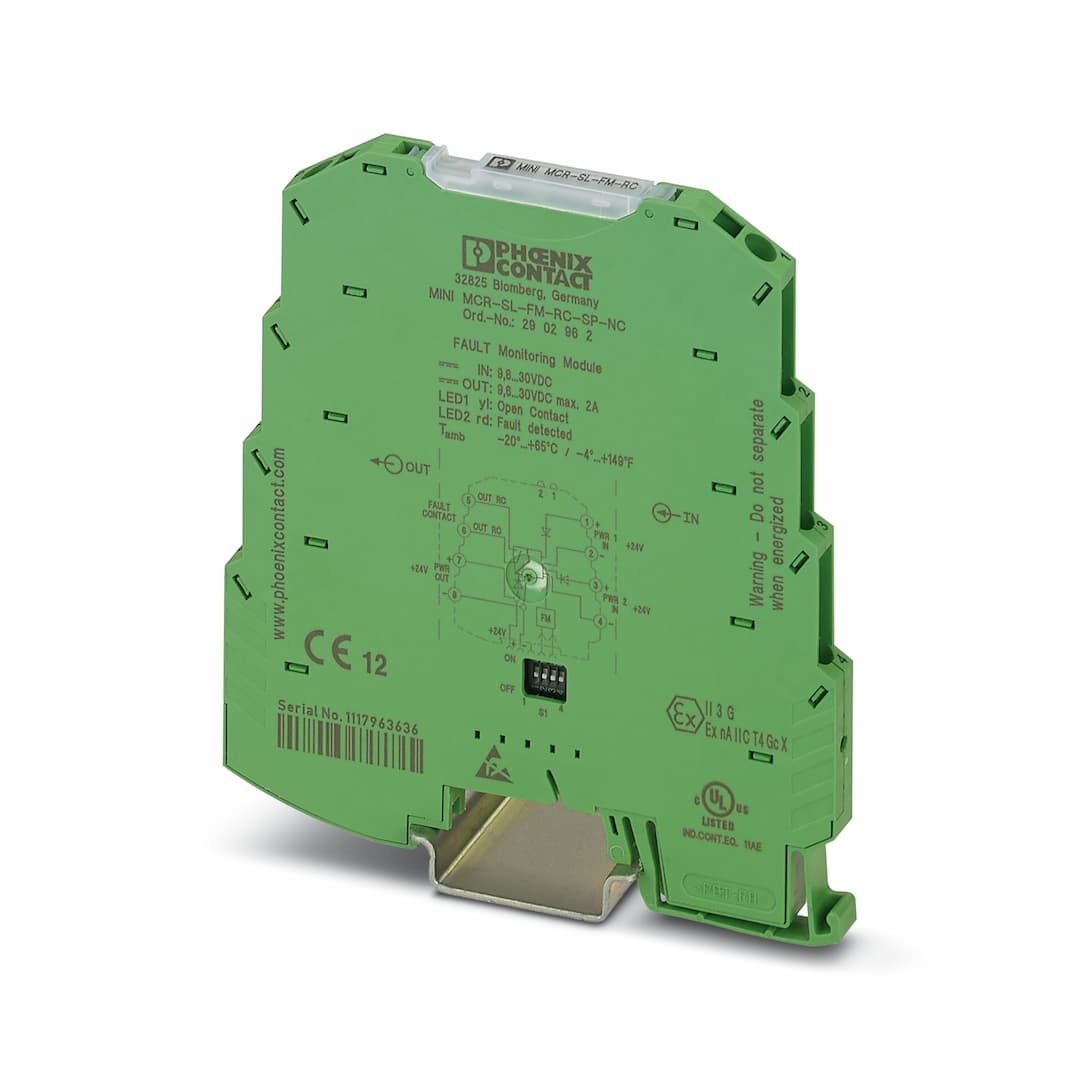

MINI MCR-SL-FM-RC-SP-NC
Key Features
- 1Reliable Fault Monitoring: Detects and reports group errors from the fault monitoring system.
- 2Versatile Connectivity: Supports up to 80 measuring transducers via ME 6,2 TBUS-2 DIN rail connector.
- 3Compact Design: Compact dimensions (6.2 mm x 93.1 mm x 101.2 mm) for easy installation.
- 4High-Sensitivity LEDs: Yellow LED for switching output and red LED for error indication.
- 5EMC Compliance: Meets EMC directive standards with basic insulation in accordance with IEC/EN 61010.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Evaluation unit | Product family | MINI Analog |
| Article revision | 05 | Overvoltage category | II |
| Pollution degree | 2 | Rated insulation voltage | 50 V AC/DC |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) |
| Maximum temperature coefficient | < 0.01 %/K | Electrical isolation | Input, power supply and output to the switching output |
| Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 5 mA (at 24 V DC) |
| Power consumption | < 120 mW (at 24 V DC) | Description of the input | Voltage input for redundancy monitoring |
| Voltage input signal | 9.6 V DC ... 30 V DC | Maximum switching voltage | 30 V AC/DC |
| Max. switching current | 50 mA | Voltage output signal | 8.8 V DC ... 29.2 V DC |
| Max. current output signal | 2 A | Connection method | Spring-cage connection |
| Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Status display | Yellow LED (switching output) | Error indication | Red LED |
| Width | 6.2 mm | Height | 93.1 mm |
| Depth | 102.5 mm | Color | green (RAL 6021) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
| Identification | II 3 G Ex nA nC IIC T4 Gc X | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5 pending
Class I, Zone 2, Group IIC |
| Identification | D, EMC1 | Certificate | DNV GL 14085-15HH |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 0.5 % | Comments | Criterion A |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 2 % | Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
| Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
| Typical deviation from the measuring range final value | 0.5 % | Comments | Criterion A |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
| Mounting position | any |
Specifications may be subject to change without notice
