Product Model

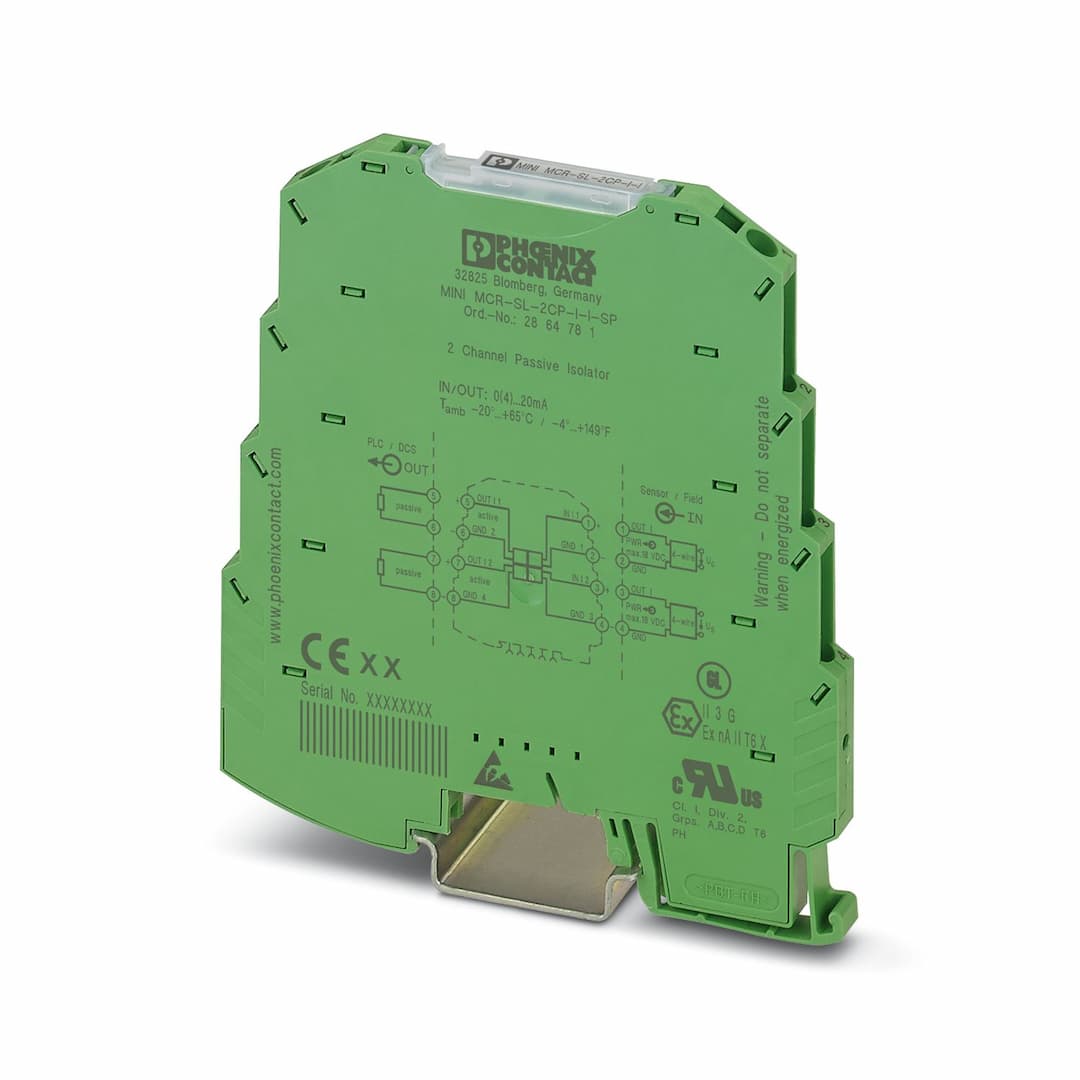

MINI MCR-SL-2CP-I-I-SP
Key Features
- 16.2 mm wide and 93.1 mm high, ideal for space-constrained applications.
- 2No separate supply voltage required, ensuring efficient use of power.
- 3Maximum transmission error ≤ 0.1% and step response of 5 ms at 600 Ω load.
- 4Basic insulation according to EN 61010 and surge voltage category II for enhanced safety.
- 5Spring-cage connection with conductor cross sections from 0.2 mm² to 2.5 mm² for flexible wiring options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Passive separator | Product family | MINI Analog |
| No. of channels | 2 | Article revision | 07 |
| Overvoltage category | II | Pollution degree | 2 |
| Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Electrical isolation between input and output | yes | Limit frequency (3 dB) | 75 Hz |
| Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) | Test voltage channel/channel | 1.5 kV AC (50 Hz, 60 s) |
| Signal transmission behavior | In = Out | Step response (10-90%) | 5 ms (at 600 Ω load) |
| Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) | Temperature coefficient, typical | < 0.002 %/K (of measured value / 100 Ω load) |
| Maximum transmission error | ≤ 0.1 % (of final value) | Additional error, load-dependent | < 0.03 % (of measured value / 100 Ω load) |
| Supply voltage range | loop-powered, no external supply necessary | Power consumption | 34 mW (per channel) |
| Description of the input | Current input | Number of inputs | 2 |
| Configurable/programmable | no | Max. voltage input signal | 18 V |
| Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current input signal | 40 mA |
| Response current | approx. 190 µA | Input voltage limitation | < 2 V (20 mA) |
| Voltage dissipation | 1.9 V (I = 20 mA) | Number of outputs | 2 |
| Configurable/programmable | no | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
| Load/output load current output | < 600 Ω (at I = 20 mA output signal) | Ripple | < 10 mV |
| Connection method | Spring-cage connection | Stripping length | 8 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 | Width | 6.2 mm |
| Height | 93.1 mm | Depth | 102.5 mm |
| Color | green (RAL 6021) | Housing material | PBT |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Identification | II 3 G Ex nA II T6 X |
| Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D | Identification | GL EMC 2 D |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Comments | Criterion B |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Evaluation criterion | A | Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 | Evaluation criterion | B |
| Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
| Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
| Evaluation criterion | A | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Mounting position | any |
Specifications may be subject to change without notice
