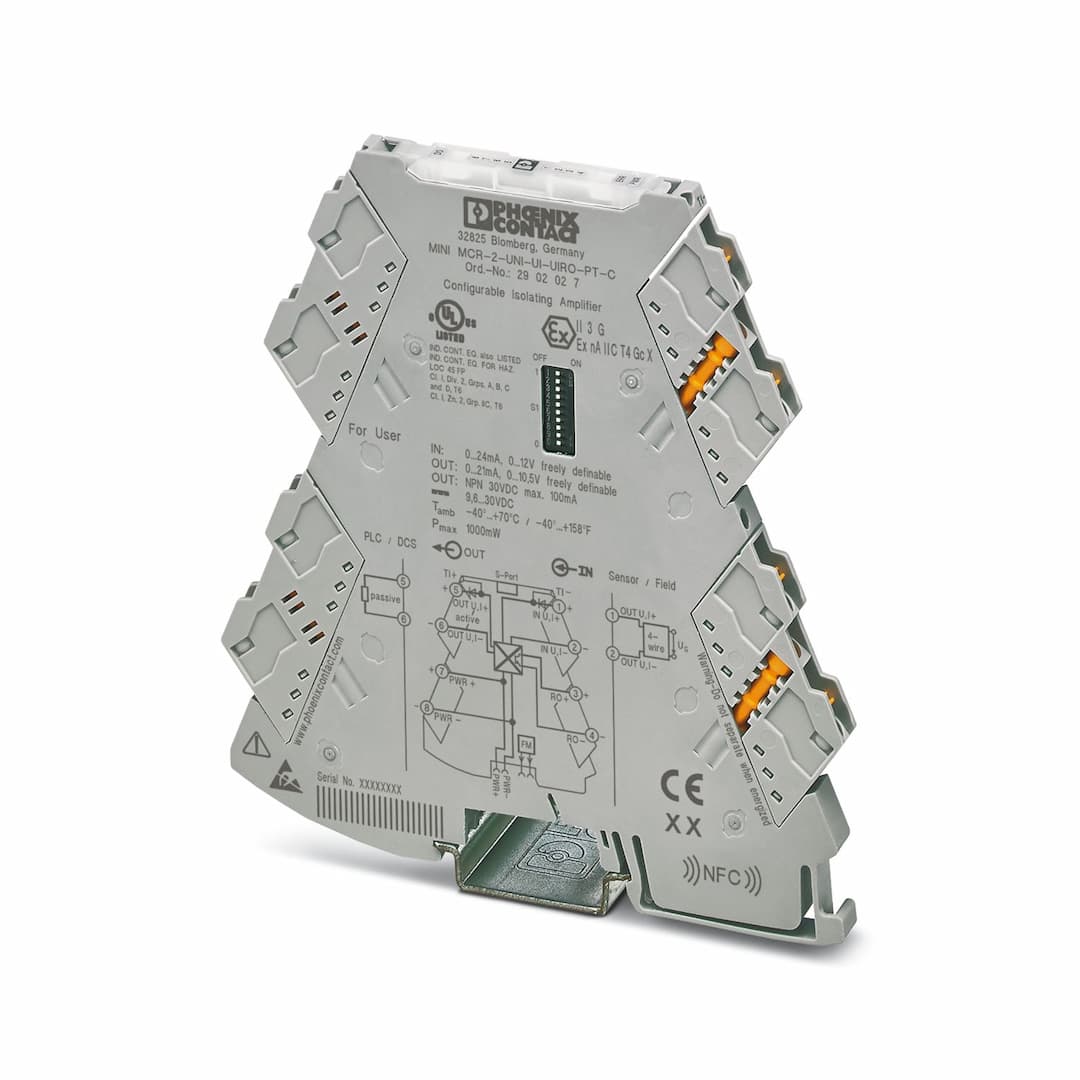

MINI MCR-2-UNI-UI-UIRO-PT-C

Manufacturer

Phoenix Contact

Key Features

1Easily adjustable for various input and output signals via DIP switches.
2Reinforced insulation in accordance with IEC 61010-1 for safe operation.
3Highly compact, suitable for confined spaces with dimensions of 6.2 mm x 110.5 mm x 120.5 mm.
4Supports a wide range of voltage inputs from 0 V to 30 V and current inputs from 0 mA to 20 mA.
5Includes status display with a yellow LED for monitoring switching output and fault conditions.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
EMC note	EMC: class A product, see manufacturer's declaration in the download area	Product type	Signal conditioner
Product family	MINI Analog Pro	No. of channels	1
Type	Signal conditioner	Configuration	DIP switches Software App
Article revision	08	Overvoltage category	II
Pollution degree	2	Electrical isolation	4-way isolation
Electrical isolation between input and output	yes	Step response (0–99%)	140 ms (15 Hz sample rate) 45 ms (60 Hz sample rate) 25 ms (240 Hz sample rate, can only be set via software)
Maximum temperature coefficient	0.01 %/K	Temperature coefficient, typical	0.01 %/K
Maximum transmission error	0.1 % (of final value)	Rated insulation voltage	300 V
Test voltage	3 kV AC (50 Hz, 60 s)	Insulation	Reinforced insulation according to IEC/EN 61010-1
Nominal supply voltage	24 V DC	Supply voltage range	9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption	32 mA (24 V DC) 63 mA (12 V DC)	Power consumption	≤ 1 W (at I
Number of inputs	1	Configurable/programmable	Yes
Voltage input signal	0 V ... 10 V (via DIP switch) 2 V ... 10 V (via DIP switch) 0 V ... 5 V (via DIP switch) 1 V ... 5 V (via DIP switch) 10 V ... 0 V (via DIP switch) 10 V ... 2 V (via DIP switch) 5 V ... 0 V (via DIP switch) 5 V ... 1 V (via DIP switch) 0 V ... 12 V (can be set via software)	Max. voltage input signal	12 V
Current input signal	0 mA ... 20 mA (via DIP switch) 4 mA ... 20 mA (via DIP switch) 0 mA ... 10 mA (via DIP switch) 2 mA ... 10 mA (via DIP switch) 20 mA ... 0 mA (via DIP switch) 20 mA ... 4 mA (via DIP switch) 10 mA ... 0 mA (via DIP switch) 10 mA ... 2 mA (via DIP switch) 0 mA ... 24 mA (can be set via software)	Max. current input signal	24 mA
Input resistance of voltage input	> 120 kΩ	Input resistance current input	approx. 50 Ω (+0.7 V for test diode)
Number of outputs	1	Contact switching type	1 N/O contact
Minimum switching voltage	1 V	Maximum switching voltage	30 V DC
Min. switching current	100 µA	Max. switching current	100 mA (at 30 V)
Number of outputs	1	Configurable/programmable	Yes
Voltage output signal	0 V ... 10 V (via DIP switch) 2 V ... 10 V (via DIP switch) 0 V ... 5 V (via DIP switch) 1 V ... 5 V (via DIP switch) 0 V ... 10.5 V (can be set via software)	Max. voltage output signal	approx. 12.3 V
Current output signal	0 mA ... 20 mA (via DIP switch) 4 mA ... 20 mA (via DIP switch) 0 mA ... 10 mA (via DIP switch) 2 mA ... 10 mA (via DIP switch) 0 mA ... 21 mA (can be set via software)	Max. current output signal	24.6 mA
Load/output load voltage output	≥ 10 kΩ	Load/output load current output	≤ 600 Ω (at 20 mA)
Ripple	< 20 mV < 20 mV	Connection method	Push-in connection
Stripping length	10 mm	Conductor cross section rigid	0.2 mm² ... 2.5 mm² (with ferrule) 0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 12 (flexible)
Ex installation (EPL)	Gc Div. 2	Connection method	Micro USB type B
Status display	Green LED (supply voltage) Yellow LED (switching output)	Error indication	Red LED
Width	6.2 mm	Height	109.81 mm
Depth	119.2 mm	Color	gray (RAL 7042)
Housing material	PBT	Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2	Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2
Degree of protection	IP20 (not assessed by UL)	Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)	Certificate	CE-compliant
Identification	 II 3 G Ex ec IIC T4 Gc	Certificate	BVS 19 ATEX E 083 X
Identification	 II 3 G Ex ec IIC T4 Gc	Certificate	PxCIF21UKEX2905026X
Identification	Ex ec IIC T4 Gc	Certificate	IECEx BVS 19.0072X
Identification	Ex nA IIC T4 Gc	Certificate	NEPSI GYJ21.1123X
Identification	UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 Class I, Zone 2, Group IIC T6	Certificate	DNV GL TAA000021E Rev. 1
Identification	 2Ex ec IIC T4 Gc	Certificate	BY/112 02.01 TP012 103.01 00079
Temperature	B	Humidity	B
Vibration	A	EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board	Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2	Note	When being exposed to interference, there may be minimal deviations.
Noise emission	EN 61000-6-4	Standards/regulations	EN 61000-4-2
Comments	Safety measures must be taken to prevent electrostatic discharge.	Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3	Typical deviation from the measuring range final value	0.2 %
Designation	Fast transients (burst)	Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	0.1 %	Standards/regulations	EN 61000-4-5
Designation	Conducted interferences	Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	2.8 %	Electrical isolation	4-way isolation
Standards/regulations	GB 3836.1 GB 3836.8	Mounting type	DIN rail mounting
Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.	Mounting position	any

Specifications may be subject to change without notice
