Product Model

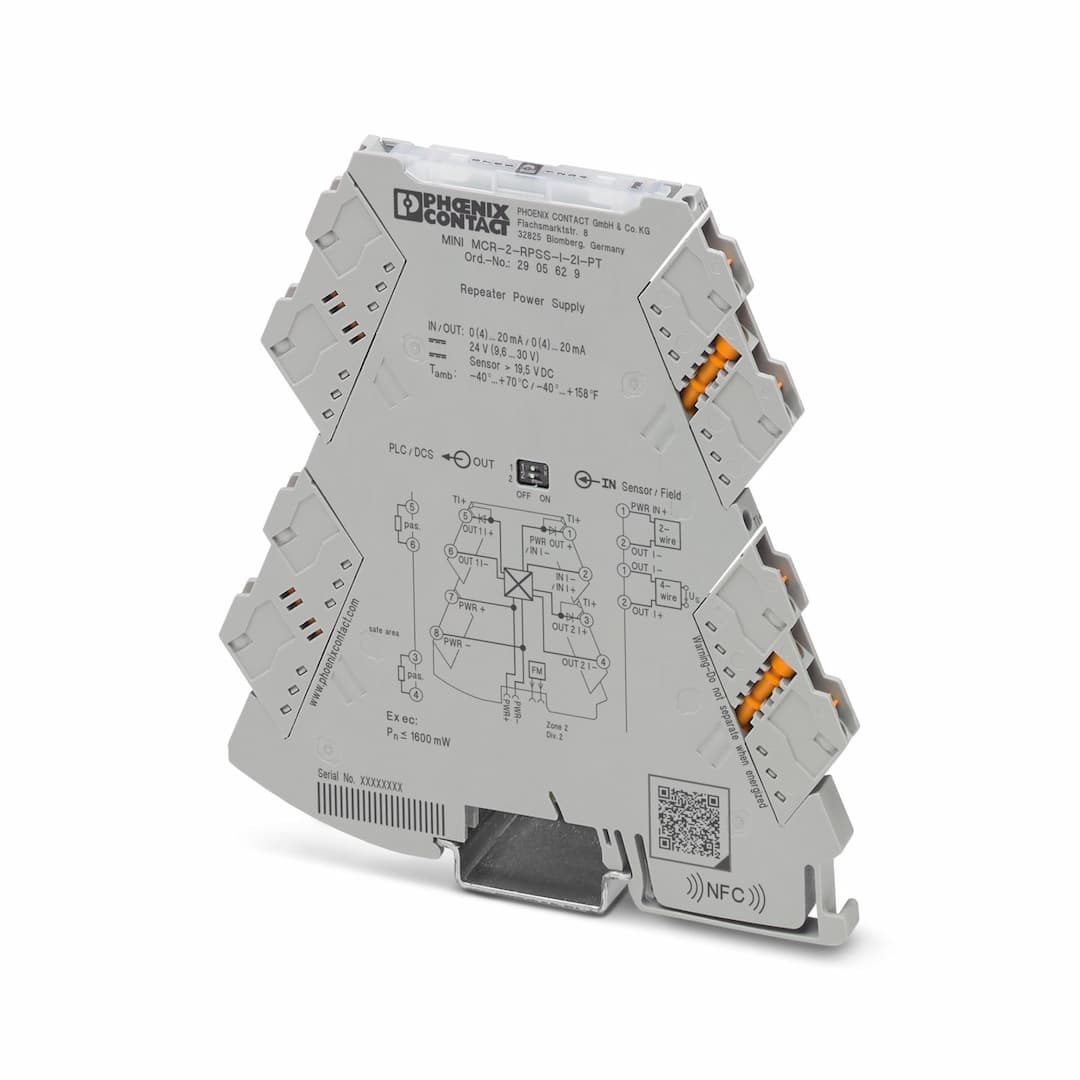

MINI MCR-2-RPSS-I-2I-PT
Key Features
- 1Dual Mode Operation: Works in both signal and power supply duplicator modes.
- 2HART Transparency: Supports bi-directional HART data protocols.
- 3Electrical Isolation: Provides reinforced insulation for safe operation.
- 4Compact Design: Measures 6.2 mm in width, 109.81 mm in height, and 119.2 mm in depth.
- 5High Reliability: Compliant with EN 61000-6-2 for noise immunity and EN 60715 for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Repeater power supply |
| Product family | MINI Analog Pro | No. of channels | 2 |
| Type | Signal conditioner | Configuration | DIP switches |
| Article revision | 02 | Overvoltage category | II |
| Pollution degree | 2 | Electrical isolation | 4-way isolation |
| Limit frequency (3 dB) | > 1 kHz | Signal transmission behavior | In = Out |
| Step response (10-90%) | < 400 µs | Maximum temperature coefficient | 0.0075 %/K |
| Maximum transmission error | 0.05 % (of final value) | Rated insulation voltage | 300 V |
| Test voltage | 3 kV AC (50 Hz, 60 s) | Insulation | Reinforced insulation according to IEC/EN 61010-1 |
| Nominal supply voltage | 24 V DC | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Typical current consumption | 40 mA (For 24 V DC and in signal duplicator mode)
65 mA (For 24 V DC and in power supply duplicator mode)
75 mA (For 12 V DC and in signal duplicator mode)
130 mA (For 12 V DC and in power supply duplicator mode) | Power consumption | 1.6 W (at I |
| Description of the input | Sensor circuit | Number of inputs | 1 |
| Current input signal | 0 mA ... 20 mA (Signal duplicator mode)
4 mA ... 20 mA (Power supply and signal duplicator mode) | Input resistance current input | 90 Ω (+1.6 V) |
| Transmitter supply voltage | > 19.5 V | Number of outputs | 2 |
| Non-load voltage | < 20 V | Current output signal | 0 mA ... 20 mA (Signal duplicator mode)
4 mA ... 20 mA (Power supply and signal duplicator mode) |
| Max. current output signal | 25 mA | Load/output load current output | ≤ 500 Ω (per channel) |
| Ripple | < 20 mV | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
| Ex installation (EPL) | Gc
Div. 2 | HART function | Yes |
| Limit frequency (3 dB) | 1 kHz | Status display | Green LED (supply voltage) |
| Width | 6.2 mm | Height | 109.81 mm |
| Depth | 119.2 mm | Color | gray (RAL 7042) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
| Identification | II 3 G Ex ec ic IIC T4 Gc | Certificate | BVS 19 ATEX E 047 X |
| Identification | II 3 G Ex ec ic IIC T4 Gc | Certificate | PxCIF21UKEX2902000X |
| Identification | Ex ec ic IIC T4 Gc | Certificate | IECEx BVS 19.0041X |
| Identification | Ex nA ic IIC T4 Gc | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC T5 |
| Certificate | DNV GL TAA000021E Rev. 1 | Identification | 2Ex ec ic IIC T4 Gc |
| Certificate | BY/112 02.01 TP012 103.01 00081 | Temperature | B |
| Humidity | B | Vibration | A |
| EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
| Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
| Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
| Standards/regulations | EN 61000-4-5 | Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 | Electrical isolation | 4-way isolation |
| Standards/regulations | GB 3836.1
GB 3836.4
GB 3836.8 | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
