Product Model

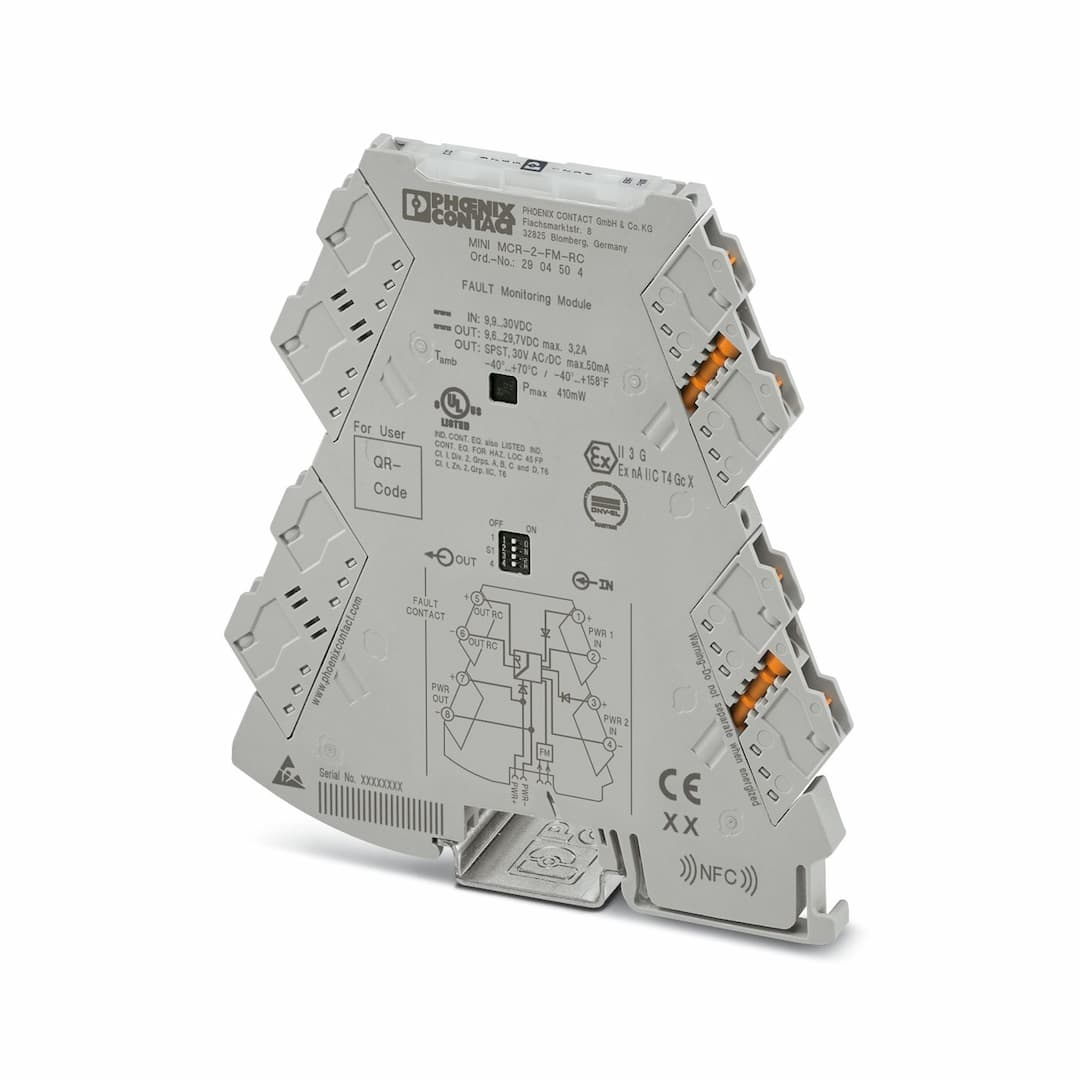

MINI MCR-2-FM-RC
Key Features
- 1The MINI MCR-2-FM-RC offers precise fault monitoring with high measurement accuracy, ensuring reliable operations.
- 2Enjoy straightforward integration and easy maintenance with the module's plug-in connection technology.
- 3Save valuable panel space with the compact, DIN rail-mounted design, perfect for industrial environments.
- 4Minimize noise and disturbances with isolated output signals, enhancing the integrity of transmitted data.
- 5Built to last, this module is certified for harsh industrial conditions, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Evaluation unit |
| Product family | MINI Analog Pro | Configuration | DIP switches |
| Article revision | 11 | Overvoltage category | II |
| Pollution degree | 2 | Configuration | DIP switches |
| Rated insulation voltage | 50 V AC/DC (effective) | Electrical isolation | Basic insulation in accordance with EN 61010 |
| Test voltage (Input/output) | 1.5 kV AC (50 Hz, 60 s) | Maximum temperature coefficient | < 0.01 %/K |
| Electrical isolation | Input, power supply and output to the switching output | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Max. current consumption | < 16 mA (24 V DC) | Power consumption | < 410 mW (24 V DC) |
| Description of the input | Voltage input for redundancy monitoring | Number of inputs | 1 |
| Voltage input signal | 9.9 V DC ... 30 V DC | Maximum switching voltage | 30 V DC |
| Max. switching current | 50 mA DC | Number of outputs | 1 |
| Voltage output signal | 9.6 V DC ... 29.7 V DC | Max. current output signal | 3.2 A |
| Connection method | Screw connection | Stripping length | 10 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Ex installation (EPL) | Gc
Div. 2 |
| Status display | Green LED (supply voltage)
Yellow LED (switching output) | Error indication | Red LED |
| Width | 6.2 mm | Height | 109.81 mm |
| Depth | 119.2 mm | Color | gray (RAL 7042) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
| Identification | II 3 G Ex ec IIC T4 Gc | Certificate | BVS 20 ATEX E 014X |
| Identification | II 3 G Ex ec IIC T4 Gc | Certificate | PxCIF21UKEX2902004X |
| Identification | Ex ec IIC T4 Gc | Certificate | IECEx BVS 20.0010X |
| Identification | Ex nA IIC T4 Gc | Certificate | NEPSI GYJ20.1320X |
| Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 | Certificate | DNV GL TAA00002UA |
| Identification | 2Ex ec IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00079 |
| Temperature | B | Humidity | B |
| Vibration | A | EMC | A |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
| Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
| Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 | Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-5 |
| Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
| Electrical isolation | Basic insulation in accordance with EN 61010 | Standards/regulations | GB 3836.1
GB 3836.8 |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
