Product Model

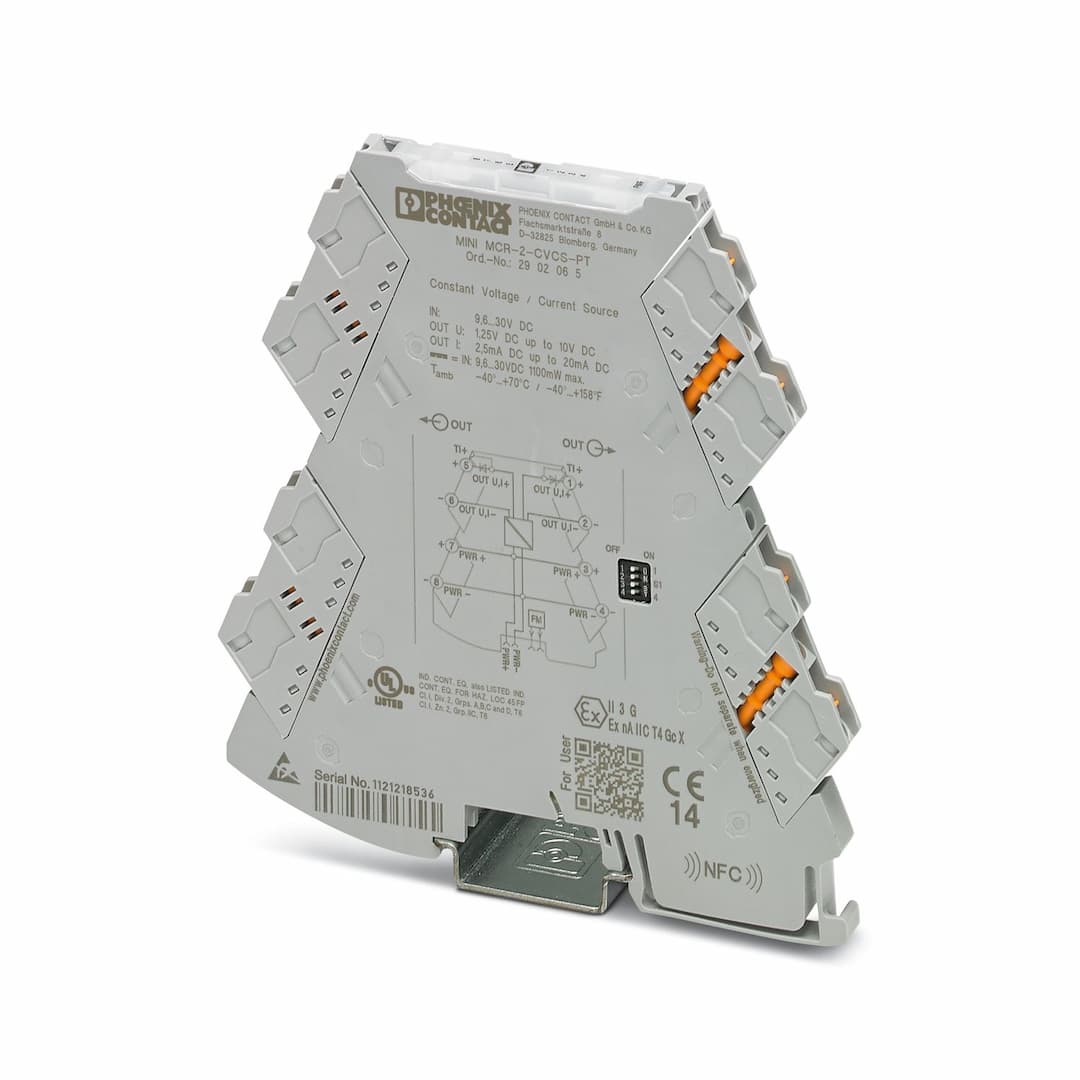

MINI MCR-2-CVCS-PT
Key Features
- 1Set output voltage and current values easily using DIP switches.
- 2Achieve precise constant voltages (1.25 V DC to 10 V DC) and currents (2.5 mA to 20 mA).
- 3Simplify connections with push-in technology for solid conductors.
- 4Ensure reliability with built-in fault monitoring and NFC communication capabilities.
- 5Compact dimensions (6.2 mm x 110.5 mm x 120.5 mm) for easy integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Constant voltage source |
| Product family | MINI Analog Pro | Configuration | DIP switches |
| Article revision | 05 | Overvoltage category | II |
| Pollution degree | 2 | Configuration | DIP switches |
| Maximum temperature coefficient | < 0.01 %/K | Maximum transmission error | ≤ 0.1 % (of final value) |
| Rated insulation voltage | 300 V | Test voltage | 3 kV AC (50 Hz, 60 s) |
| Insulation | Reinforced insulation according to IEC/EN 61010-1 | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Typical current consumption | < 42 mA (24 V DC)
< 85 mA (12 V DC) | Power consumption | < 1.1 W (9.6 V DC) |
| Voltage input signal | 9.6 V DC ... 30 V DC | Transmitter supply voltage | 10 V |
| Configurable/programmable | Yes | Max. voltage output signal | 10 V DC
8.75 V DC
7.5 V DC
6.25 V DC
5 V DC
3.75 V DC
2.5 V DC
1.25 V DC |
| Max. current output signal | 20 mA
17.5 mA
15 mA
12.5 mA
10 mA
7.5 mA
5 mA
2.5 mA | Short-circuit current | > 32 mA |
| Output voltage with wire break | 13.5 V | Output current | ≤ 30 mA |
| Load/output load current output | ≤ 600 Ω (20 mA) | Ripple | < 20 mV |
| Ripple current | 40 µA | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
| Ex installation (EPL) | Gc
Div. 2 | Status display | Green LED (supply voltage) |
| Width | 6.2 mm | Height | 109.81 mm |
| Depth | 119.2 mm | Color | gray (RAL 7042) |
| Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
| Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Certificate | CE-compliant | Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | BVS 20 ATEX E 014X | Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | PxCIF21UKEX2902004X | Identification | Ex ec IIC T4 Gc |
| Certificate | IECEx BVS 20.0010X | Identification | Ex nA IIC T4 Gc |
| Certificate | NEPSI GYJ20.1320X | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 |
| Certificate | DNV GL TAA000021E Rev. 1 | Temperature | B |
| Humidity | B | Vibration | A |
| EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
| Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
| Standards/regulations | GB 3836.1
GB 3836.8 | Mounting type | DIN rail mounting |
| Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
