Product Model

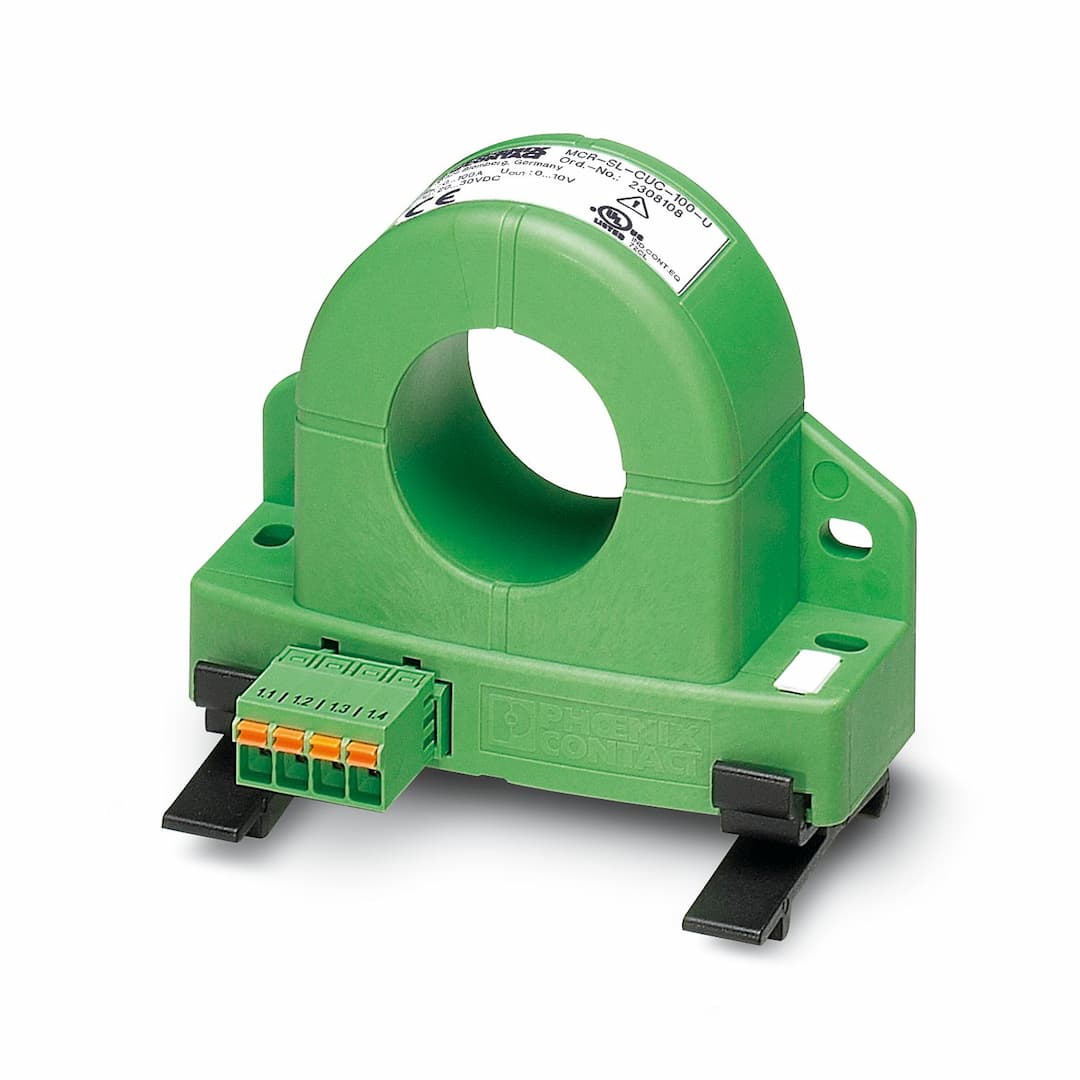

MCR-SL-CUC-100-U
Key Features
- 1Accurate Measurement: Provides precise measurement of current with high accuracy.
- 2Versatile Applications: Suitable for a wide range of applications, including industrial and commercial use.
- 3Reliable Performance: Ensures consistent and reliable operation under various conditions.
- 4Multilingual Support: Available in multiple languages for global compatibility.
- 5Easy Installation: Simple and straightforward installation process for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Current transducer | Article revision | 04 |
| Overvoltage category | III | Pollution degree | 2 |
| Linearity error | — | Maximum power dissipation for nominal condition | 1 W |
| Step response (10-90%) | 150 ms | Temperature coefficient, typical | 0.02 %/K (0 °C ... 60 °C)
0.04 %/K (-40 °C ... 65 °C) |
| Maximum transmission error | — | Rated insulation voltage | 300 V AC |
| Test voltage | 3.5 kV AC (50 Hz, 60 s) | Test voltage | 3.5 kV AC (50 Hz, 60 s) |
| Nominal supply voltage | 24 V DC | Supply voltage range | 20 V DC ... 30 V DC |
| Max. current consumption | 30 mA | Number of inputs | 1 |
| Configurable/programmable | no | Input current range | 0 A AC/DC ... 100 A AC/DC |
| Overload capacity | 6 x I | Frequency measuring range | 20 Hz ... 6000 Hz (0 Hz) |
| Curve type | AC, DC or distorted currents | Voltage output signal | 0 V ... 10 V |
| Load/output load voltage output | ≥ 10 kΩ | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.25 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Connection method | Through connection | Width | 90 mm |
| Height | 33.8 mm | Depth | 85 mm |
| Diameter | 32 mm | Color | green (RAL 6021) |
| Housing material | Frianyl B63 V0 GV30 | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Certificate | CE-compliant | Certificate | UKCA-compliant |
| Identification | UL/C-UL Listed UL 508 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
