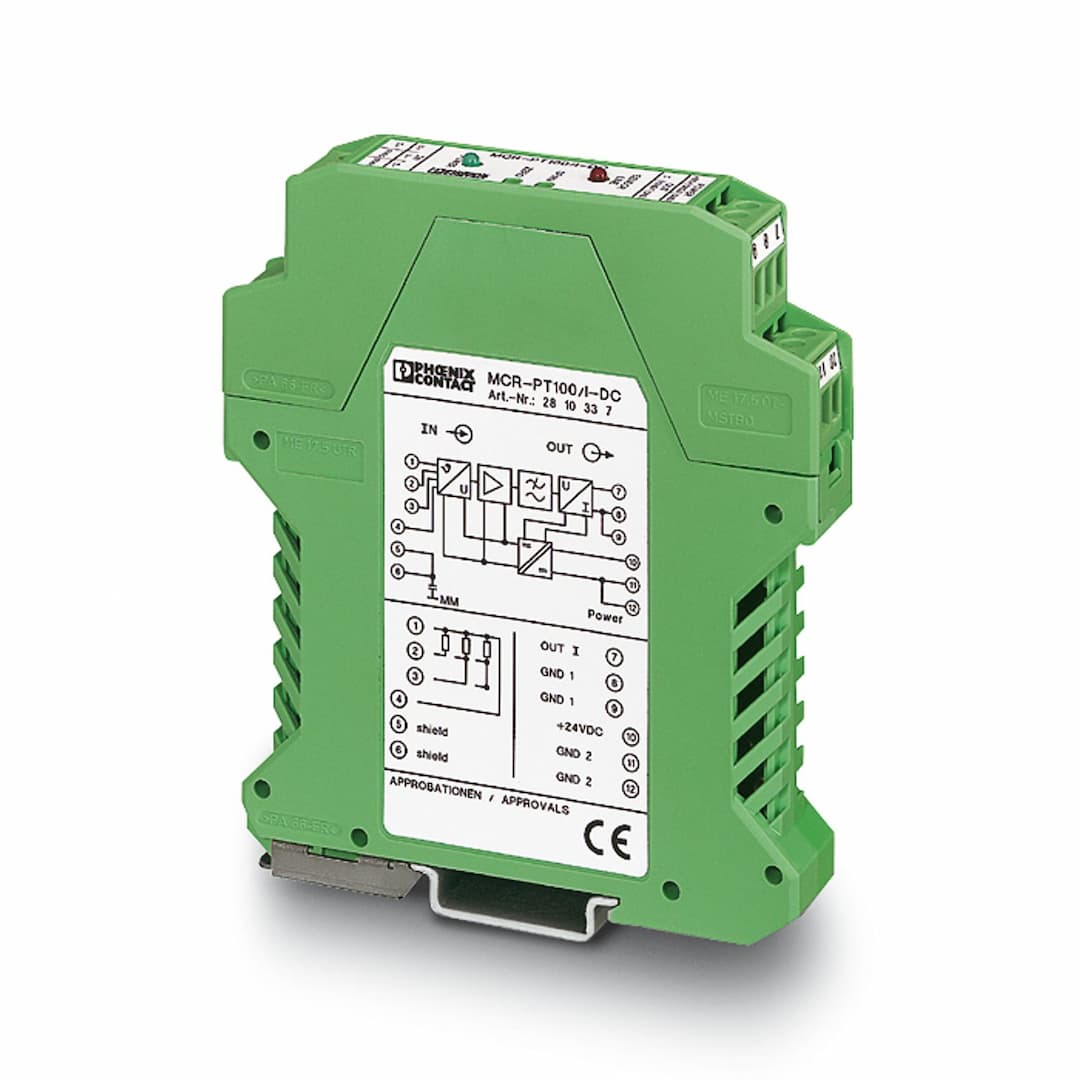

Product Model
MCR-PT100-U-DC-NC
Key Features
- 1Configurable via DIP switches for flexible temperature range settings.
- 2Electrically isolated supply voltage for enhanced safety and reliability.
- 3Compatible with Pt 100 sensors (IEC 60751/EN 60751) for precise measurements.
- 4Robust polyamide PA non-reinforced housing with a green color for easy identification.
- 5Compact dimensions: 17.5 mm width, 99 mm height, and 114.5 mm depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Temperature transmitter |
| No. of channels | 1 | Alignment span | ± 5 % |
| Alignment zero | ± 5 % | Test voltage power supply/signal | 750 V AC (50 Hz, 60 s) |
| Step response (10-90%) | 11 ms | Maximum temperature coefficient | ≤ 0.02 %/K |
| Maximum transmission error | ≤ 0.4 % (of final value) | Supply voltage range | 20 V DC ... 30 V DC |
| Max. current consumption | 35 mA | Configurable/programmable | Yes, unconfigured |
| Sensor types (RTD) that can be used | Pt 100 (IEC 60751/EN 60751) | Temperature measuring range | 0 °C ... 300 °C (0 ... 100/150/200/300)
-50 °C ... 250 °C (-50 ... 50/100/150/250) |
| Sensor type: | -50 °C ... 50 °C
-50 °C ... 100 °C
-50 °C ... 150 °C
-50 °C ... 250 °C
0 °C ... 100 °C
0 °C ... 150 °C
0 °C ... 200 °C
0 °C ... 300 °C | Sensor input current | approx. 1 mA |
| Connection technology | 2-, 3-, 4-conductor | Connection method | Pluggable screw connection |
| Configurable/programmable | Yes, unconfigured | Voltage output signal | 0 V ... 10 V |
| Max. voltage output signal | 15 V | Output voltage with wire break | > 11 V |
| Load/output load voltage output | ≥ 10 kΩ | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 | Width | 17.5 mm |
| Height | 99 mm | Depth | 114.5 mm |
| Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
| Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
| Certificate | CE-compliant | Identification | cULus |
| Mounting position | any |
Specifications may be subject to change without notice
