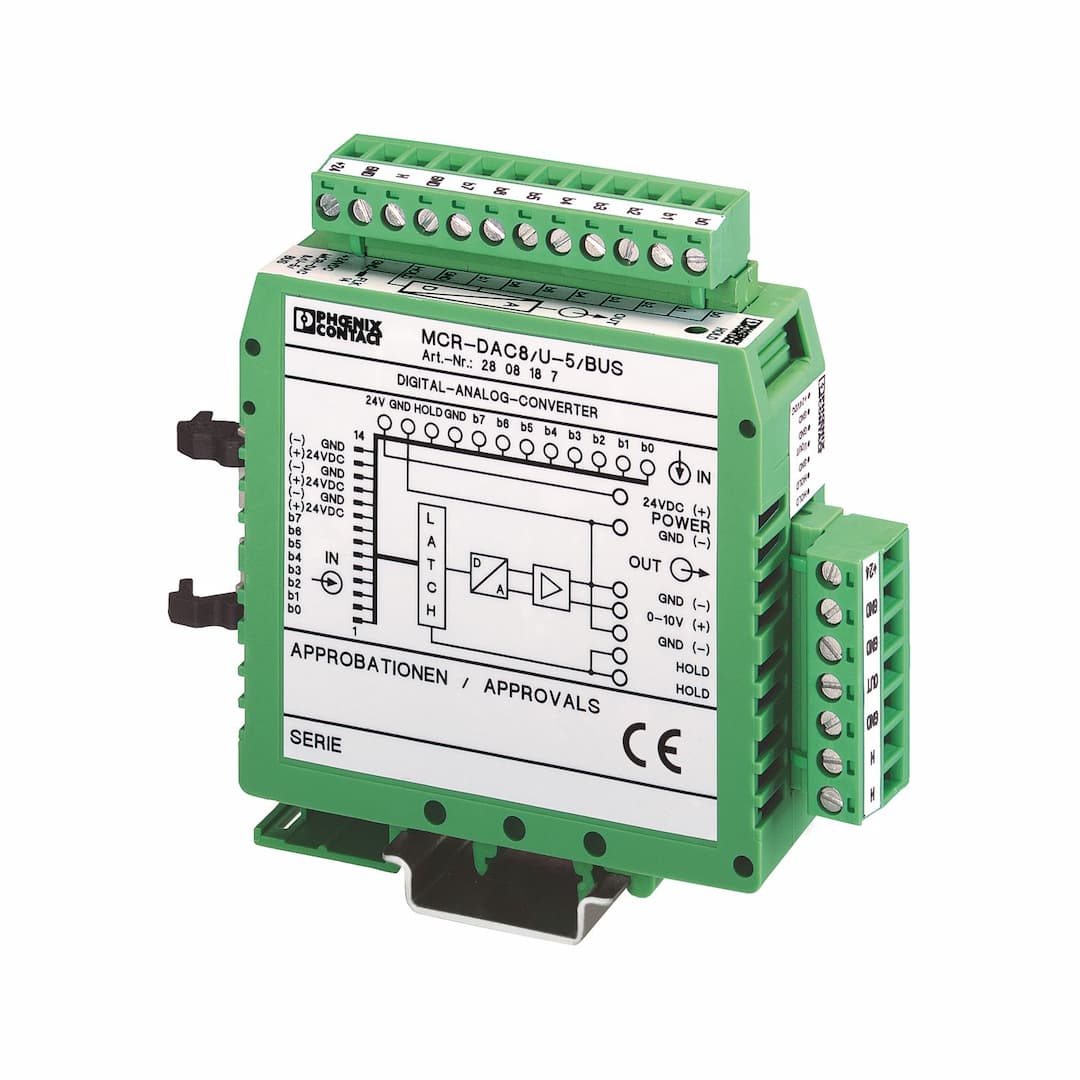

Product Model

MCR-DAC 8-U-10-BUS

Manufacturer

Phoenix Contact

Key Features

1High Precision Conversion: Converts digital signals to analog signals with 8-bit precision.
2Universal Usability: Suitable for various industrial setups with universal usability.
3Wide Input Voltage Range: Operates within a 24 V DC to 30 V DC input voltage range.
4Efficient Signal Handling: Handles multiple signals simultaneously with eight channels.
5Reliable Output: Provides a stable output current of 5 mA with a voltage output signal range of 0 V to 10 V.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Maximum power dissipation for nominal condition	< 480 mW	Protective circuit	Protection against polarity reversal, suppressor diode
Maximum transmission error	±1 LSB, for 25 °C	Nominal supply voltage	24 V DC ±10 %
Supply voltage range	22 V DC ... 26 V DC	Max. current consumption	20 mA
Input signal digital	8 bit (1 leading sign)	Input voltage range	24 V DC ... 30 V DC
Signal level "1" signal	≥ 15 V DC	Signal level "0" signal	≤ 2 V DC
Max. current input signal	≤ 1 mA	Input resistance of voltage input	≥ 5.7 kΩ
Protective circuit	Surge protection; Suppressor diode, 36 V / 1500 W	Output current	5 mA
Voltage output signal	0 V ... 10 V	Load/output load voltage output	≥ 2 kΩ
Resolution, outputs (voltage)	approx. 39 mV	D/A conversion time	≤ 25 µs
Connection method	Screw connection	Stripping length	8 mm
Screw thread	M3	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 14
Width	25 mm	Height	79 mm
Depth	93 mm	Color	green (RAL 6021)
Housing material	Polyamide PA non-reinforced	Ambient temperature (operation)	0 °C ... 55 °C
Certificate	CE-compliant	Mounting type	DIN rail mounting
Mounting position	any
