Product Model

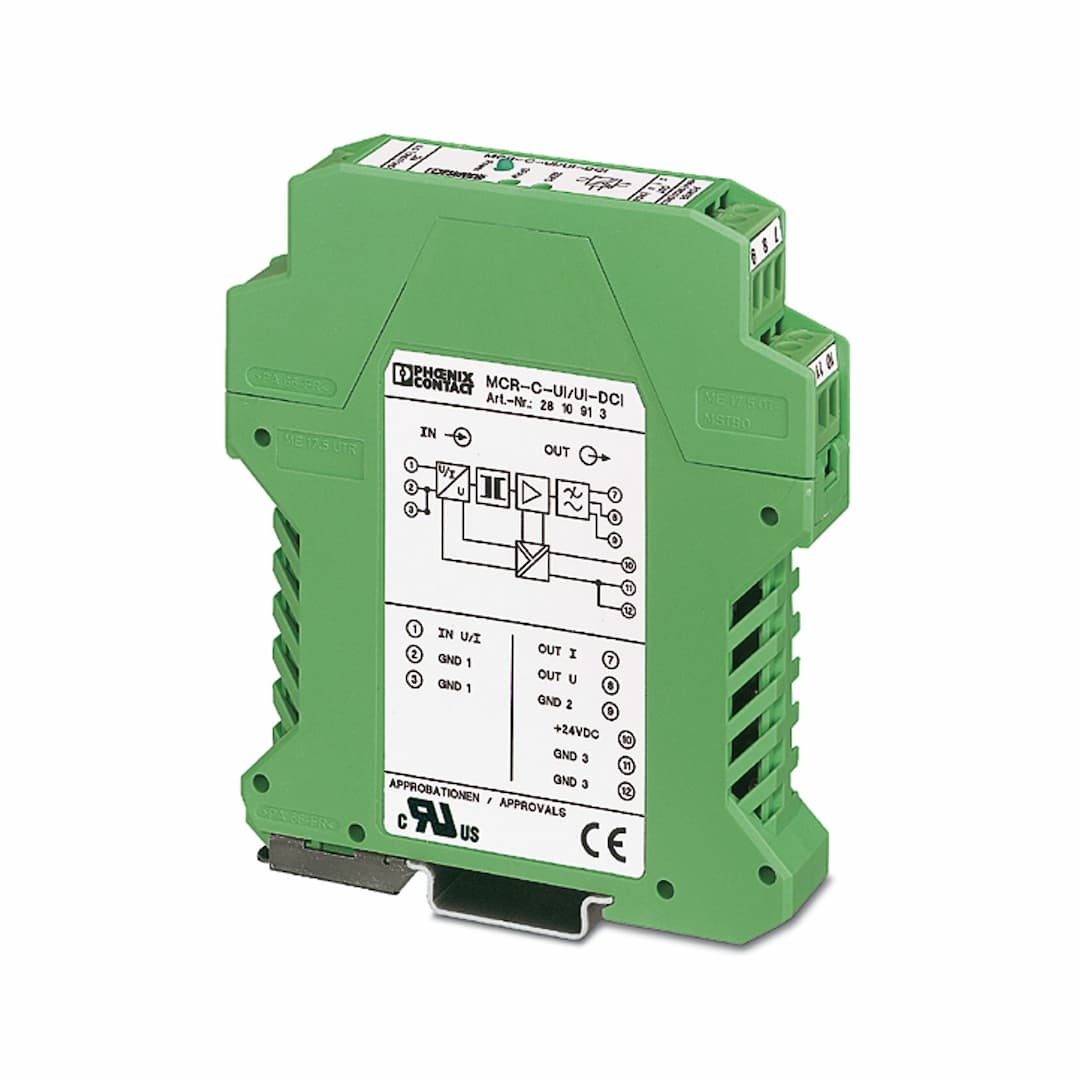

MCR-C-UI-UI-DCI
Key Features
- 1Electrical Isolation: Safely decouples sensor circuits from evaluation circuits, preventing negative effects of multiple sensor connections.
- 2Configurable I/O: Input and output signals can be configured via DIP switches, offering flexibility in signal range settings.
- 3High Accuracy: Transmits signals with ≤ 0.1% transmission error and ±2% alignment zero and span.
- 4Wide Frequency Range: Supports up to 450 Hz cut-off frequency for various analog signal applications.
- 5Compact Design: Measures 17.5 mm x 99 mm x 114.5 mm, suitable for DIN Rail mounting with an IP20 degree of protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Signal conditioner | No. of channels | 1 |
| Article revision | 21 | Alignment span | ± 2 % |
| Alignment zero | ± 2 % | Electrical isolation between input and output | yes |
| Limit frequency (3 dB) | 30 Hz | Maximum power dissipation for nominal condition | 900 mW |
| Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) | Test voltage power supply/signal | 1 kV AC (50 Hz, 60 s) |
| Protective circuit | Transient protection | Step response (10-90%) | 11 ms |
| Maximum temperature coefficient | 0.0075 %/K | Maximum transmission error | ≤ 0.1 % (of final value) |
| Supply voltage range | 18 V DC ... 30 V DC | Max. current consumption | < 30 mA (without load) |
| Number of inputs | 1 | Configurable/programmable | Yes, preconfigured |
| Voltage input signal | 0 V ... 10 V (please indicate if different setting when ordering) | Max. voltage input signal | 30 V |
| Max. current input signal | 50 mA | Input resistance of voltage input | 1 MΩ |
| Input resistance current input | 50 Ω | Supply voltage | 24 V DC |
| Number of outputs | 1 | Configurable/programmable | Yes, preconfigured |
| Voltage output signal | 0 V ... 10 V (please indicate if different setting when ordering) | Max. voltage output signal | 15 V |
| Max. current output signal | 30 mA | Load/output load voltage output | ≥ 10 kΩ |
| Load/output load current output | ≤ 500 Ω | Connection method | Pluggable screw connection |
| Connection technology | COMBICON | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
| Width | 17.5 mm | Height | 99 mm |
| Depth | 114.5 mm | Color | green (RAL 6021) |
| Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 65 °C | Certificate | CE-compliant |
| Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D
Class I, Zone 2, Group IIC | Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 | Noise emission | EN 61000-6-4 |
| Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
