Product Model

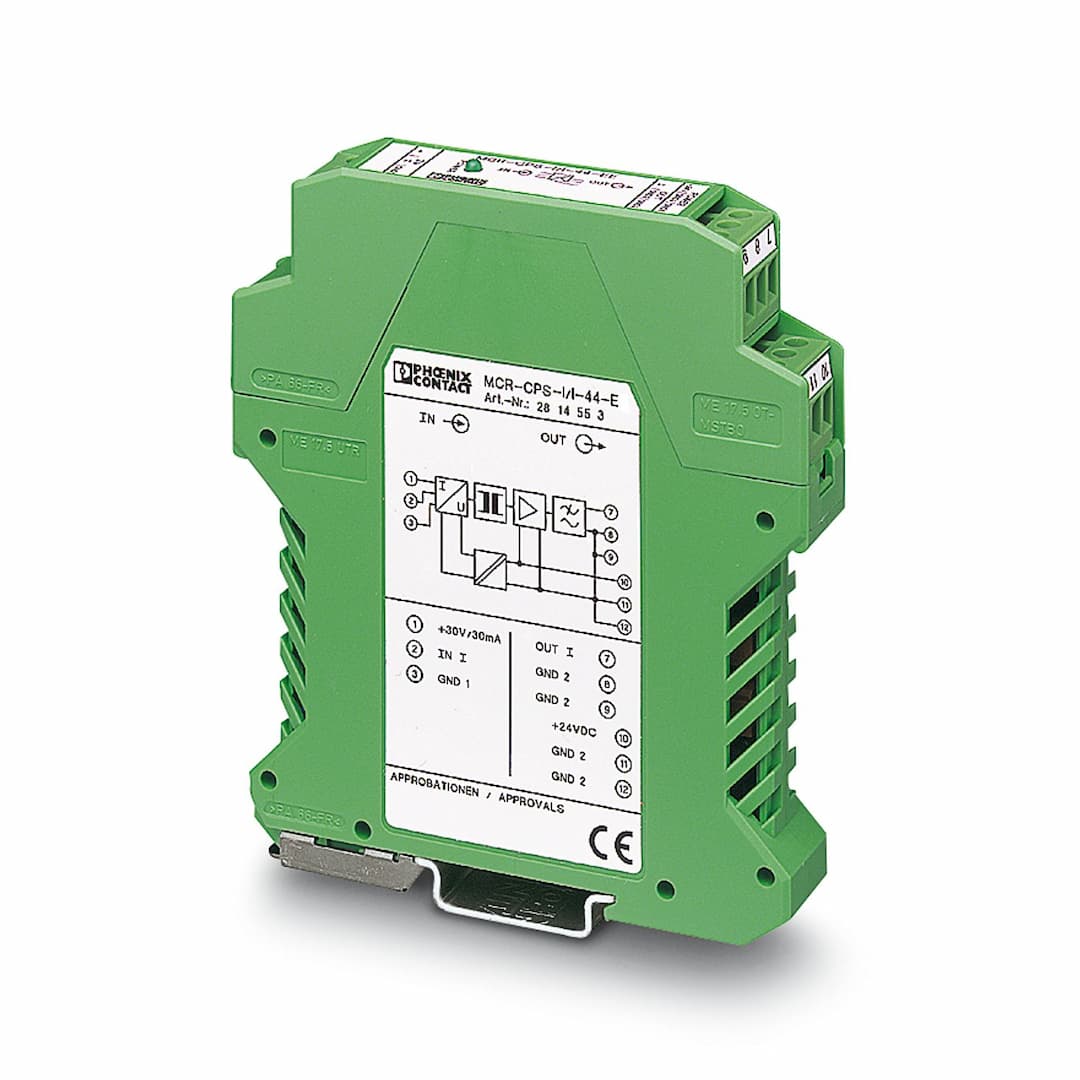

MCR-CPS-I-I-44-E

Manufacturer

Phoenix Contact

Key Features

1High Performance: Designed for 4-20 mA signal applications, ensuring precise and reliable operation.
2Durable Construction: Built with robust materials to withstand harsh industrial environments.
312-Month Warranty: Covered by a comprehensive 12-month warranty for peace of mind.
4Competitive Pricing: Available at competitive prices, making it an affordable solution for automation needs.
5Global Availability: Easily sourced from multiple suppliers worldwide, ensuring timely delivery.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Isolating switch transf.	No. of channels	1
Limit frequency (3 dB)	30 Hz	Test voltage, input/output/supply	1 kV AC (50 Hz, 60 s)
Protective circuit	Transient protection	Step response (10-90%)	 10 ms
Maximum temperature coefficient	< 0.01 %	Maximum transmission error	≤ 0.1 % (of final value)
Supply voltage range	20 V DC ... 30 V DC	Max. current consumption	approx. 70 mA
Description of the input	Current input (sensor circuit)	Current input signal	4 mA ... 20 mA
Max. current input signal	100 mA	Transmitter supply voltage range	20 V ... 30 V
Transmitter supply current	< 30 mA	Current output signal	4 mA ... 20 mA
Max. current output signal	approx. 28 mA	Output current with wire break	0 mA
Output current with short-circuit	> 20 mA	Load/output load current output	≤ 500 Ω
Connection method	Pluggable screw connection	Stripping length	8 mm
Screw thread	M3	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 14
Width	17.5 mm	Height	99 mm
Depth	114.5 mm	Color	green (RAL 6021)
Housing material	Polyamide PA non-reinforced	Ambient temperature (operation)	-20 °C ... 65 °C
Certificate	CE-compliant	Identification	cULus
Mounting position	any

Specifications may be subject to change without notice
