Product Model

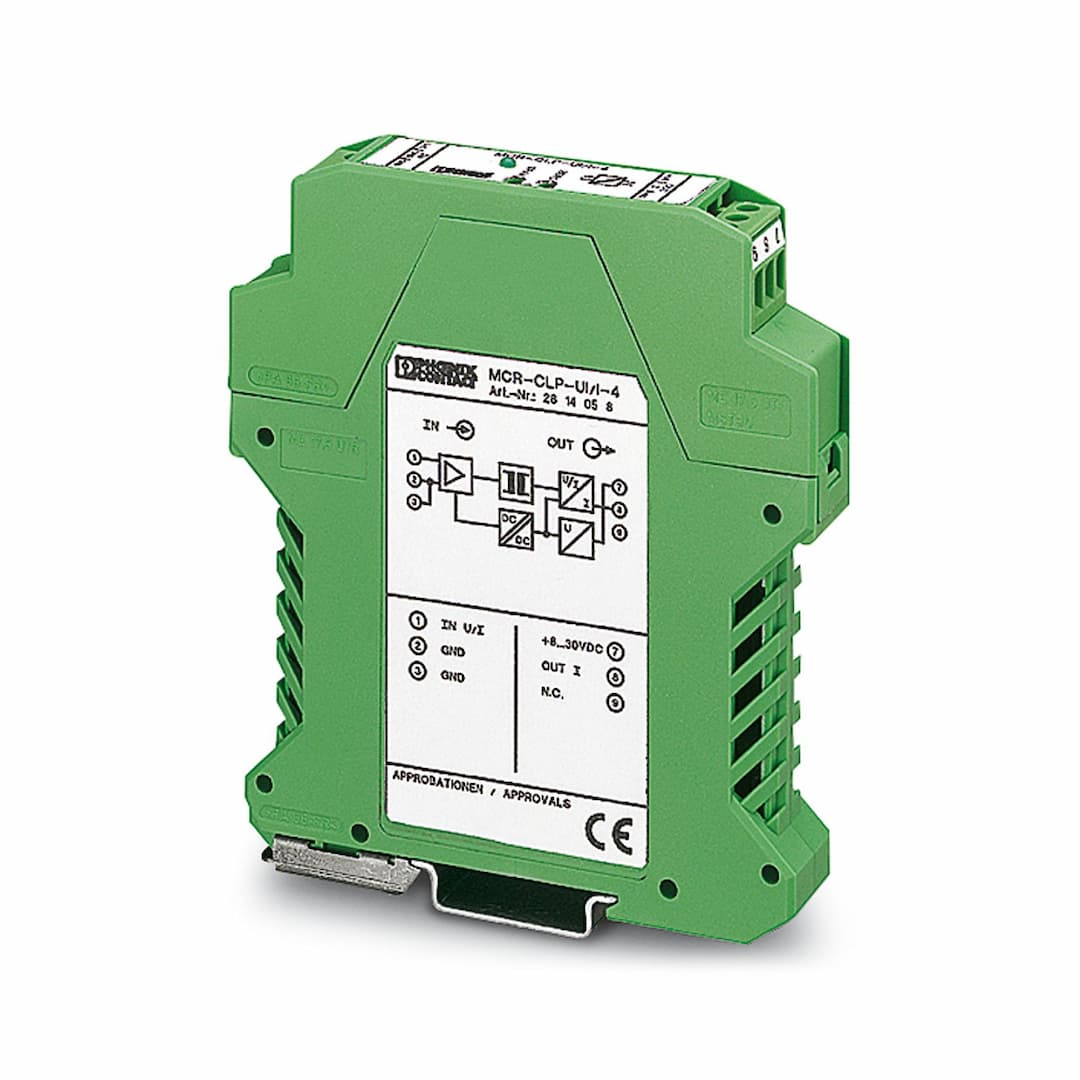

MCR-CLP-UI-I-4
Key Features
- 1Set over 25 different signal ranges using DIP switches.
- 2Operates in a 4…20 mA current loop, providing power for signal conversion.
- 3± 2% zero/span adjustment for precise signal matching.
- 4Safely isolate active PLC input board cards with robust electrical isolation.
- 5Operates from -25 °C to +65 °C, suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Passive separator | No. of channels | 1 |
| Alignment span | ± 2 % (of final value) | Alignment zero | ± 2 % (of final value) |
| Limit frequency (3 dB) | 30 Hz | Maximum power dissipation for nominal condition | 160 mW |
| Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) | Step response (10-90%) | 11 ms |
| Maximum temperature coefficient | ≤ 0.01 %/K | Temperature coefficient, typical | 0.005 %/K |
| Maximum transmission error | ≤ 0.1 % (of final value) | Transmission error, typical | 0.05 % |
| Designation | Loop-powered | Supply voltage range | 8 V DC ... 30 V DC |
| Description of the input | Current input | Configurable/programmable | Yes |
| Max. voltage input signal | 30 V | Current input signal | 4 mA ... 20 mA (please indicate if different setting when ordering) |
| Max. current input signal | 50 mA | Input resistance of voltage input | 1 MΩ |
| Input resistance current input | 50 Ω | Configurable/programmable | no |
| Current output signal | 4 mA ... 20 mA | Max. current output signal | 35 mA |
| Load/output load current output | ≤ 800 Ω (at U | Connection method | Pluggable screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 | Limit frequency (3 dB) | 30 Hz |
| Width | 17.5 mm | Height | 99 mm |
| Depth | 114.5 mm | Color | green (RAL 6021) |
| Housing material | Polyamide PA non-reinforced | Ambient temperature (operation) | -25 °C ... 65 °C |
| Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D or Non-Hazardous Locations |
| Mounting position | any |
Specifications may be subject to change without notice
