Product Model

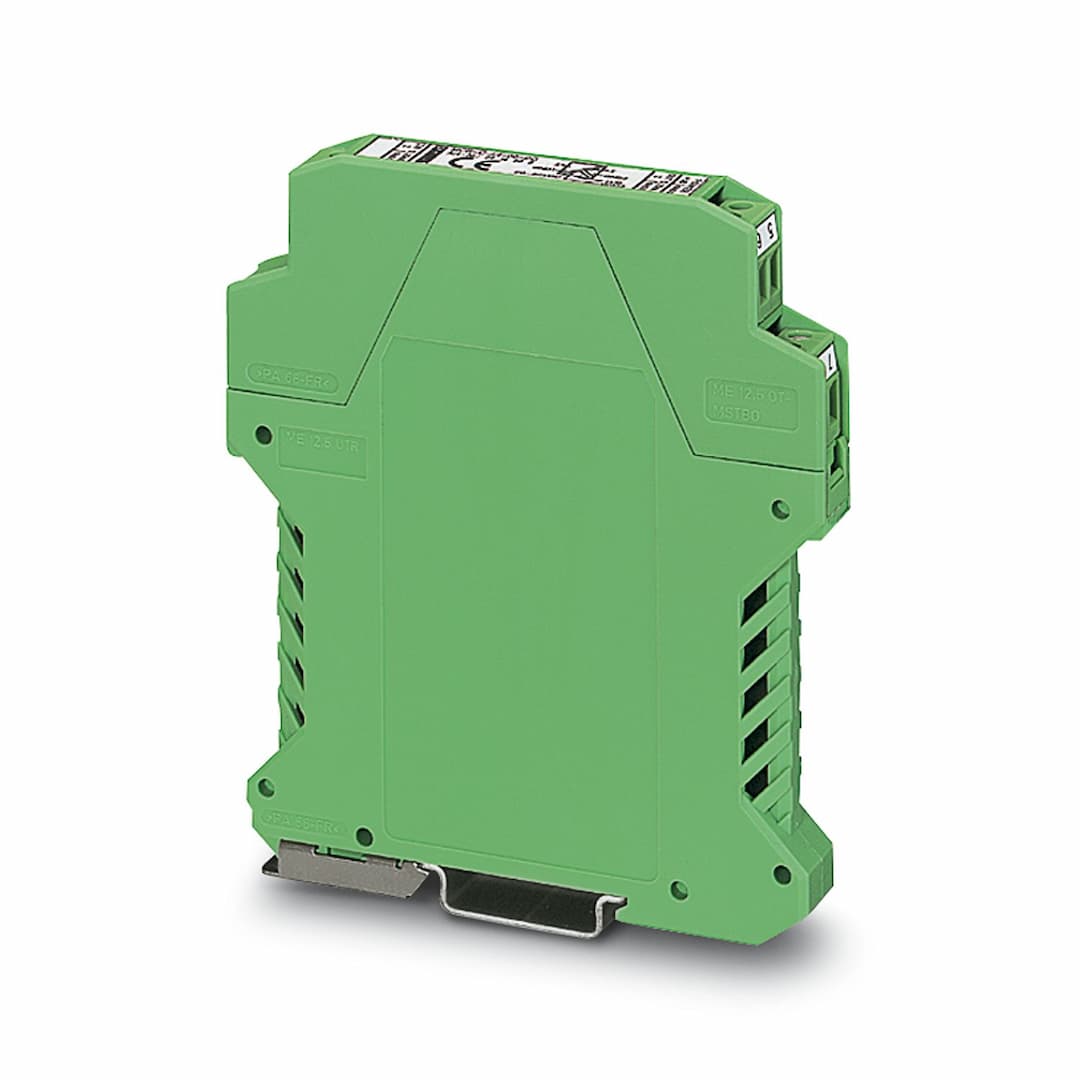

MCR-C-I-I-40-DC
Key Features
- 1Ensures electrical isolation between input and output, protecting against power input faults and field wiring faults.
- 2Equipped with transient protection circuits to safeguard against voltage spikes and surges.
- 3Provides linear transmission range with a maximum transmission error of ≤ 0.3% (of final value).
- 4Preconfigured for easy setup, ensuring consistent performance in various applications.
- 5Meets CE-compliance standards with a compact design suitable for any mounting position.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
| No. of channels | 1 | Limit frequency (3 dB) | 30 Hz |
| Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Protective circuit | Transient protection |
| Step response (10-90%) | 11 ms | Maximum temperature coefficient | < 0.015 %/K |
| Maximum transmission error | ≤ 0.3 % (of final value) | Transmission error, typical | < 0.2 % (of final value) |
| Supply voltage range | 20 V DC ... 30 V DC | Typical current consumption | < 15 mA (without load) |
| Description of the input | Current input | Configurable/programmable | no |
| Current input signal | 4 mA ... 20 mA | Max. current input signal | 50 mA |
| Input resistance current input | 50 Ω | Configurable/programmable | no |
| Current output signal | 0 mA ... 20 mA | Max. current output signal | 30 mA |
| Load/output load current output | ≤ 500 Ω | Linear transmission range (in reference to the output range end value) | -5 % ... 105 % |
| Connection method | Pluggable screw connection | Stripping length | 8 mm |
| Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
| Limit frequency (3 dB) | 30 Hz | Width | 12.5 mm |
| Height | 99 mm | Depth | 114.5 mm |
| Color | green (RAL 6021) | Housing material | Polyamide PA non-reinforced |
| Ambient temperature (operation) | -25 °C ... 60 °C | Certificate | CE-compliant |
| Mounting position | any |
